STANDARD TOOL

09110JACK ASSY

main09111-12160iNZE14#,ZRE14#200609-200902

sub09111-12210

main09111-12210iNZE14#,ZRE14#200903-201009

sub09111-12230

main09111-12230iNZE14#,ZRE14#201010

09113HANDLE, JACK

main09113-20050iNZE14#,ZRE14#201112

main09113-52010iNZE14#,ZRE14#200609-201111

09120BAG, TOOL

main09120-10040

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-35070iNZE14#,ZRE14#200609-200810

09184STOPPER, WHEEL

main09184-00010

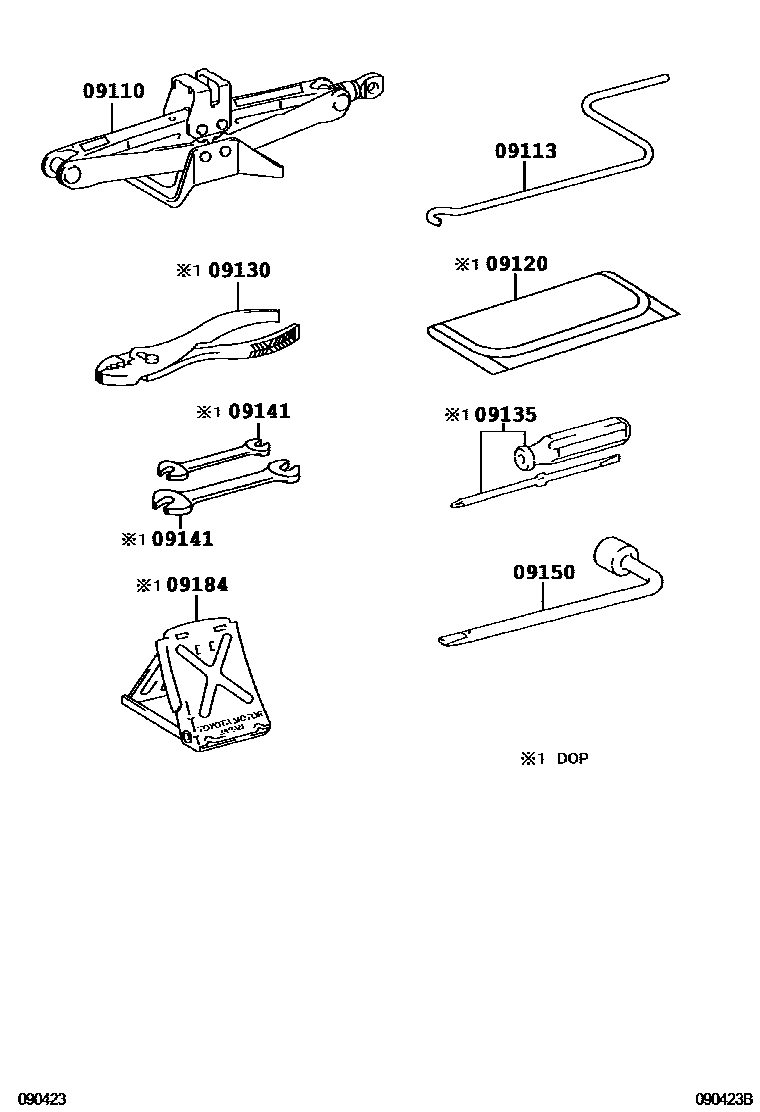

8 parts on this diagram · 1 diagram in section
