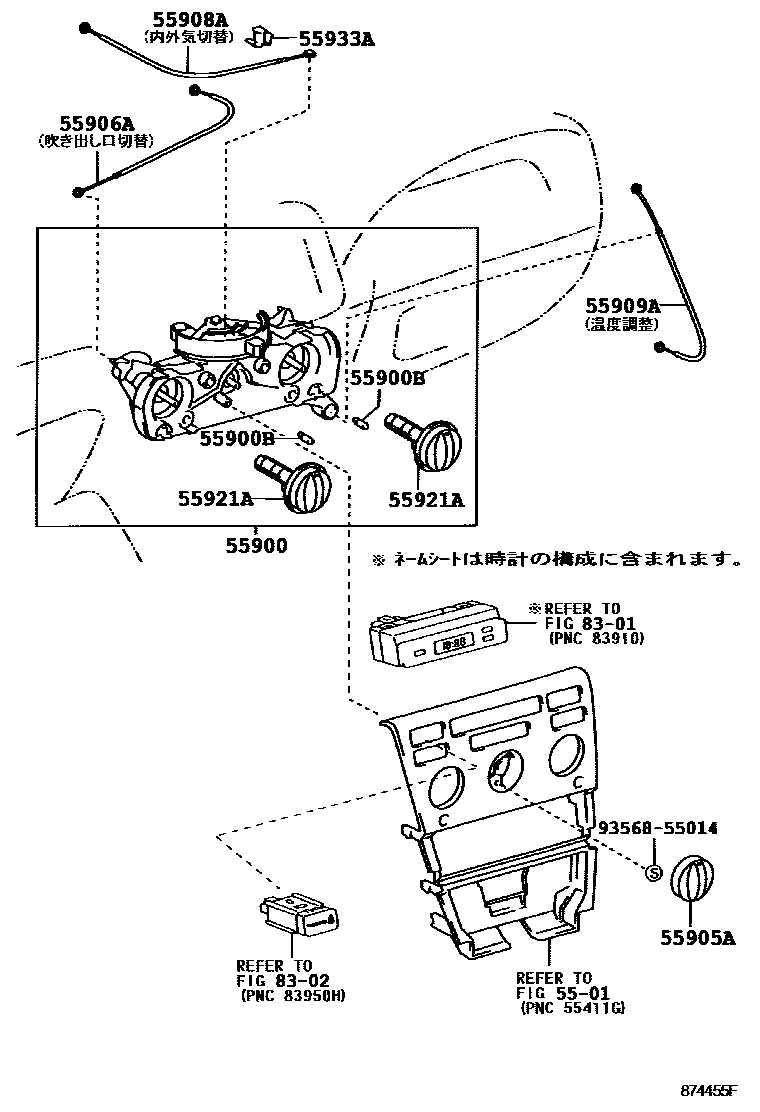

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����-� ����--����� ���� 0002 1����-� ����--�-� ���� 0003 1����������--����� 0004 1�� ���� 0005 1���

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55900CONTROL ASSY, AIR CONDITIONER

main55900-12820iCE121,NZE12#,ZZE122,124..S,X200008-200102

main55900-12A00iNZE12#..X200404-200609

main55900-1A030iCE121,NZE12#,ZZE122,124..S,X200102-200209

main55900-1A070iCE121,NZE12#..X200209-200404

main55900-1A071iNZE12#..SED..X200404-200609

55900BBULB, AIR CONDITIONER CONTROL

main90981-11040×2iCE121,NZE12#,ZZE122,124..S,X200008-200209

55905AKNOB, HEATER CONTROL

main55905-12610iCE121,NZE12#,ZZE122,124..S,X200008-200102

main55905-12710iCE121,NZE12#,ZZE122,124..S,X200102-200209

main55905-12740iCE121,NZE12#..X200209-200404

main55905-12741iNZE12#..SED..X200404-200609

main55905-12760iNZE12#..X200404-200609

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12410iCE121,NZE12#,ZZE122,124..S,X200008-200209

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12330iCE121,NZE12#,ZZE122,124..S,X200008-200209

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12320iCE121,NZE12#,ZZE122,124..S,X200008-200209

55921ARETAINER, HEATER CONTROL

main55921-12120×2iCE121,NZE12#,ZZE122,124..S,X200008-200101

main55921-12140iCE121,NZE121,124..WG;CE121,NZE121,124,ZZE12#..G,LXL,S,ZAER200209-200404

main55921-12150×2iCE121,NZE12#,ZZE122,124..S,X200102-200209

main55921-12160×2iCE121,NZE12#..X200209-200404

main55921-12161×2iNZE12#..SED..X200404-200609

main55921-12170×2iNZE12#..X200404-200609

55933ACLAMP, HEATER CONTROL CABLE

main55933-52010×2iNZE12#..X200404-200609

8301METER

→ Go to FIG 83-01

8302INDICATOR

→ Go to FIG 83-02

9356855014

main93568-55014

12 parts on this diagram · 5 diagrams in section
