METER

0001 1������-� 0002 1���������-�

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

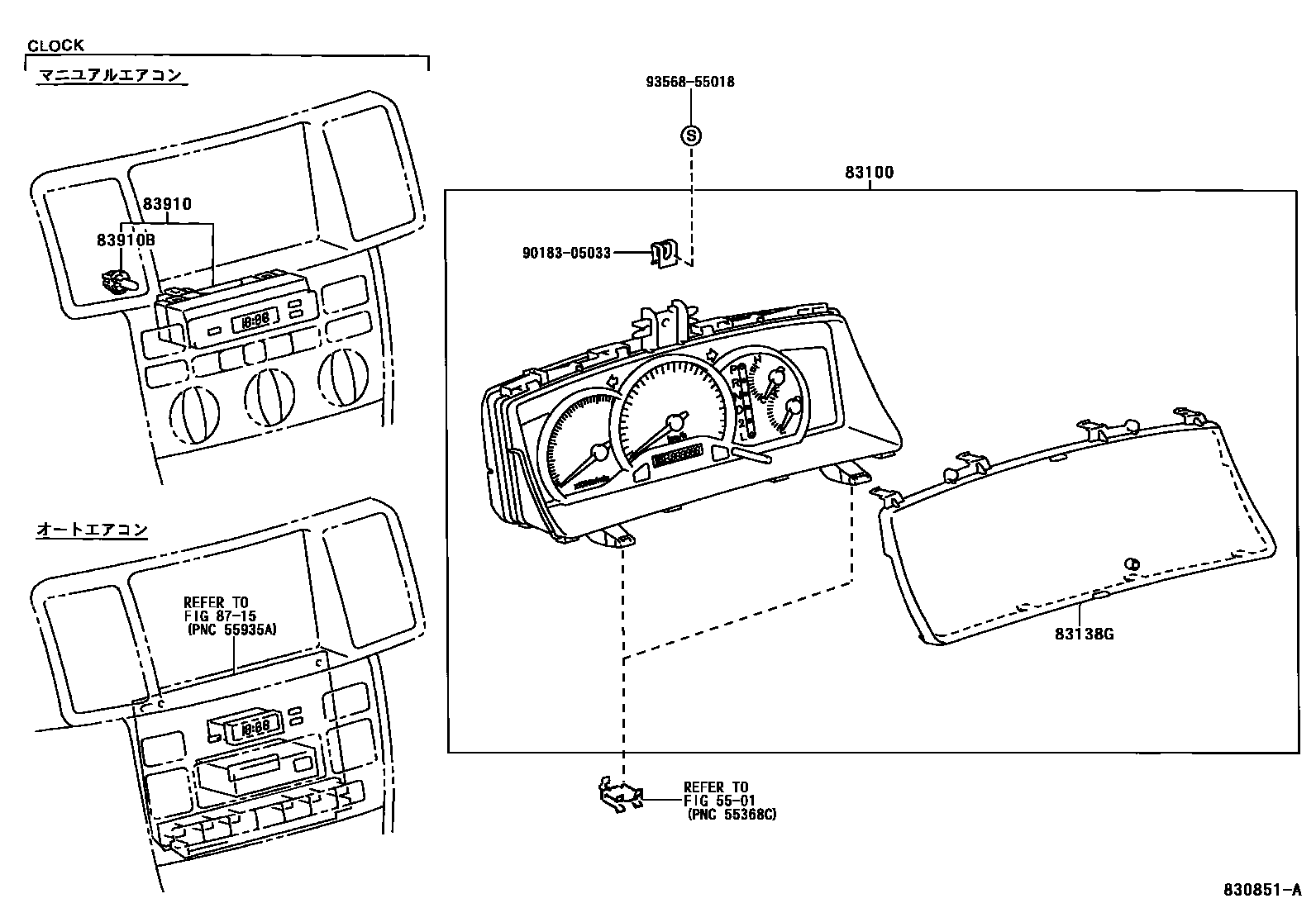

83100METER ASSY, COMBINATION

main83800-12A20iZZE122..5F200404-200609

main83800-12A30iZZE122..LXL200404-200609

main83800-12A40iZZE122,124..4FC200404-200609

main83800-12A50iZZE123..6F200404-200609

main83800-12A60iZZE123..4FC200404-200609

main83800-12A70iNZE121..SED..5F..X200412-200609

main83800-12A90iNZE121,124..4FC..G;NZE121,124..WG..4FC200404-200609

main83800-12B10iNZE120,121..SED..5F..X200404-200609

main83800-12B20iNZE12#..SED..4FC..X200404-200609

main83800-1E730iZZE122,124..4FC200008-200209

main83800-1E740iZZE123..4FC200008-200110

main83800-1E741iZZE123..4FC200110-200209

main83800-1E750iZZE123..6F200008-200110

main83800-1E751iZZE123..6F200110-200209

main83800-1E760iNZE121,124..4FC..G;NZE121,124..WG..4FC200008-200209

main83800-1E770iNZE121..5F..G;NZE121..WG..5F200008-200209

main83800-1E780iCE121..WG;CE121..4FC..G200008-200209

main83800-1E790iCE121..5F..G200008-200209

main83800-1H030iNZE12#..SED..4FC..X200008-200209

main83800-1H040iNZE120,121..SED..5F..X200008-200209

main83800-1H050iCE121..SED..4FC..X200008-200209

main83800-1H060iCE121..5F..X200008-200209

main83800-1H250iZZE122..5F200008-200209

main83800-1H510iZZE122,124..4FC200209-200404

main83800-1H520iZZE123..4FC200209-200404

main83800-1H530iZZE123..6F200209-200404

main83800-1H540iZZE122..5F200209-200404

main83800-1H570iNZE121,124..4FC..G;NZE121,124..WG..4FC200209-200404

main83800-1H580iNZE121..5F..G;NZE121..WG..5F200209-200404

main83800-1H590iCE121..WG;CE121..4FC..G200209-200404

main83800-1H600iCE121..5F..G200209-200404

main83800-1H760iNZE12#..SED..4FC..X200209-200404

main83800-1H770iNZE120,121..SED..5F..X200209-200404

main83800-1H780iCE121..SED..4FC..X200209-200404

main83800-1H790iCE121..5F..X200209-200404

main83800-1K050iZZE122,124..4FC..S200209-200404

main83800-1K060iZZE122..5F200209-200404

83138GGLASS, COMBINATION METER

main83852-12A20iZZE12#200404-200609

main83852-12A70iNZE12#200404-200609

main83852-1E730iZZE12#200008-200209

main83852-1E760iCE121,NZE12#200209-200404

83910CLOCK ASSY

main83910-12560iCE121,NZE12#,ZZE122,124..S,X200008-200209

83910BBULB, CLOCK INDICATOR

main90010-07018iCE121,NZE12#,ZZE122,124..S,X200008-200209

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9018305033

main90183-05033

9356855018

main93568-55018

8 parts on this diagram · 2 diagrams in section
