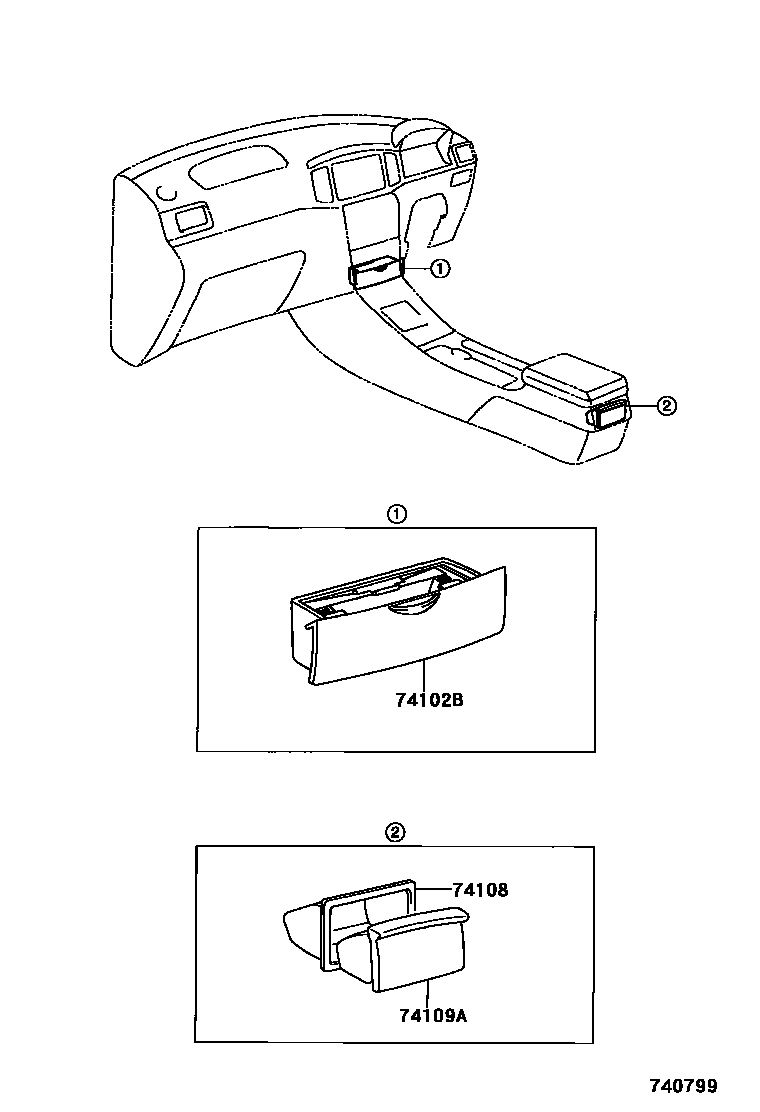

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12350-B0iCE121,NZE12#..SED; ZZE122,124..S200008-200209

DARK GRAY,TRIM0#,1#; DARK GRAY,TRIM1#

main74102-12350-E0iZZE123200008-200209

SILVER,TRIM1#

main74102-12360-A0iZZE122,124..LXL200008-200209

main74102-12380-B1iNZE12#..SED..X; NZE121,124..G;NZE121,124..WG200404-200609

main74102-12380-C0iCE121..WG; NZE121,124;CE121,NZE120..SED200209-200404

METALLIC BLACK,TRIM0#; METALLIC BLACK,TRIM0#,1#

main74102-12390-A0iCE121,NZE121,124,ZZE122,124..G,LXL200209-200404

main74102-12390-B1iZZE12#..WG200209-200404

GRAY,TRIM1#

main74102-12390-B3iZZE12#..WG200404-200609

GRAY,TRIM1#

main74102-12390-B4iNZE121,124..SED..X; NZE121,124..WG200512-200609

main74102-12390-E0iZZE122,124..LXL200404-200609

main74102-12390-E1iNZE121,124..SED..X200512-200609

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-28010iCE121,NZE12#,ZZE12#200008-200209

main74135-20090iCE121,NZE12#,ZZE12#200209-200404

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-20100-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200404

IVORY,TRIM0#

main74109-20100-B0iNZE12#,ZZE122,124..SED200404-200609

MD.GRAY,TRIM1#

main74109-20100-B2iNZE121,124,ZZE12#..WG200404-200609

DK.GRAY,TRIM1#

main74109-28010-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200209

IVORY,TRIM0#

main74109-28010-B2iCE121,NZE12#,ZZE122,124..SED200008-200209

STONE,TRIM1#

main74109-28010-B3iCE121,NZE121,124..WG200110-200209

DK.GRAY,TRIM1#

3 parts on this diagram · 1 diagram in section
