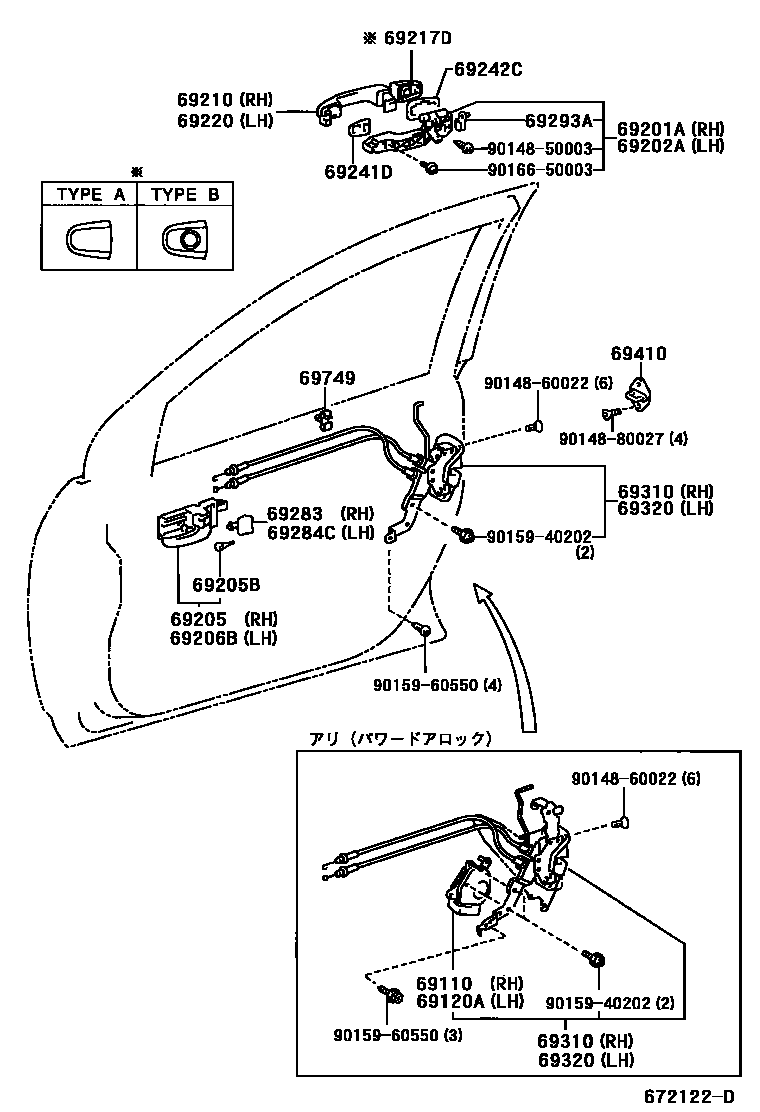

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-12070iCE121,NZE12#,ZZE12#200008-200609

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-12070iNZE12#..SED..X200008-200609

main69120-12090iNZE12#,ZZE12#200008-200609

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-13030iNZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER200404-200609

main69201-52010iCE121,NZE12#,ZZE12#200008-200609

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-52010iCE121,NZE12#,ZZE12#200008-200609

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12190-A0iCE121,NZE12#..SED..X200204-200209

sub69205-12190

main69205-12190-A0iCE121,NZE121,124..WG;CE121,NZE121,124,ZZE122,124..G,LXL200008-200609

sub69205-12190

main69205-12190-B0iCE121,NZE121,124,ZZE122,124..G,LXL200008-200209

sub69205-12190

main69205-12190-B0iCE121,NZE12#..SED..X200204-200209

sub69205-12190

main69205-12190-B1iZZE12#..WG200008-200609

sub69205-12190

main69205-12190-B3iNZE12#,ZZE122,124..SED200209-200609

sub69205-12190

main69205-12200-A0iNZE12#..X200008-200609

IVORY,TRIM0#

sub69205-12200

main69205-12200-B0iCE121,NZE12#..SED..X200008-200209

STONE,TRIM1#

sub69205-12200

main69205-12200-B1iNZE121,124..WG200110-200609

DK.GRAY,TRIM1#

sub69205-12200

main69205-12200-B4iNZE12#..SED..X200209-200609

MD.GRAY,TRIM1#

sub69205-12200

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iCE121,NZE12#,ZZE12#200008-200609

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12190-A0iCE121,NZE12#..SED..X200204-200209

sub69206-12190

main69206-12190-A0iCE121,NZE121,124..WG;CE121,NZE121,124,ZZE122,124..G,LXL200008-200609

sub69206-12190

main69206-12190-B0iCE121,NZE121,124,ZZE122,124..G,LXL200008-200209

sub69206-12190

main69206-12190-B0iCE121,NZE12#..SED..X200204-200209

sub69206-12190

main69206-12190-B1iCE121,NZE121,124,ZZE12#..WG200008-200609

sub69206-12190

main69206-12190-B3iNZE12#,ZZE122,124..SED200209-200609

sub69206-12190

main69206-12200-A0iNZE12#..X200008-200609

IVORY,TRIM0#

sub69206-12200

main69206-12200-B0iCE121,NZE12#..SED..X200008-200209

STONE,TRIM1#

sub69206-12200

main69206-12200-B1iCE121,NZE121,124..WG200110-200609

DK.GRAY,TRIM1#

sub69206-12200

main69206-12200-B4iNZE12#..SED..X200209-200609

MD.GRAY,TRIM1#

sub69206-12200

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12260iCE121,NZE121,124..G200102-200404

main69210-12260iNZE121,124..SED..X200505

main69210-12260iNZE121,124..SED..X200512-200609

main69210-12320-A0iNZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER200404-200609

sub69210-12320

main69210-12320-A1iZZE122,124..S200512-200609

sub69210-12320

main69210-12320-A1iNZE121,124,ZZE122,124..G,LXL200404-200609

sub69210-12320

main69210-12320-B0iNZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER200404-200609

sub69210-12320

main69210-12320-B1iNZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER200404-200609

sub69210-12320

main69210-12320-C0iNZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER200404-200609

sub69210-12320

main69210-12320-D0iNZE121,124,ZZE12#..WG200404-200609

sub69210-12320

main69210-12320-J1iNZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER200404-200609

sub69210-12320

main69210-12320-J2iNZE121,124..WG;NZE121,124,ZZE12#..G,LXL,S,ZAER200404-200609

sub69210-12320

main69211-12200iZZE122,124..LXL200008-200102

sub69210-12260

main69211-12220-02iNZE121,124..WG200512-200609

sub69211-12220

sub69211-52090

main69211-12220-02iNZE12#,ZZE122..SED200404-200609

WHITE PEARL CS.,073

sub69211-12220

sub69211-52090

main69211-12220-A0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200101-200609

SUPER WHITE 2,040

sub69211-12220

sub69211-52090

main69211-12220-A1iCE121,NZE121,124..G200101-200209

WHITE PM.,057

sub69211-12220

sub69211-52090

main69211-12220-A5iCE121,NZE12#..SED200209-200404

WHITE PEARL CS.,065

sub69211-12220

sub69211-52090

main69211-12220-B0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200101-200209

SILVER ME.,199

sub69211-12220

sub69211-52090

main69211-12220-B1iNZE12#,ZZE122..G,LXL,X200101-200609

SILVER ME.GR.,1D9

sub69211-12220

sub69211-52090

main69211-12220-C0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200101-200110

BLACK ME,205

sub69211-12220

sub69211-52090

main69211-12220-C2iCE121,NZE12#,ZZE12#..G,S,X,ZAER200110-200609

BLACK MC.,209

sub69211-12220

sub69211-52090

main69211-12220-D0iCE121,NZE121,124..WG200101-200609

SUPER RED II,3E5

sub69211-12220

sub69211-52090

main69211-12220-D2iCE121,NZE12#,ZZE12#..G,S,X,ZAER200209-200404

BORDEAUX MC.,3P2

sub69211-12220

sub69211-52090

main69211-12220-G2iCE121,NZE12#..SED200110-200404

DK.GREEN MC.P.I.O.,6N9

sub69211-12220

sub69211-52090

main69211-12220-H1iCE121,NZE12#,ZZE12#..G,S,X,ZAER200101-200209

TURQUOISE M.M.,769

sub69211-12220

sub69211-52090

main69211-12220-J0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200101-200609

DK.BLUE M.M.,8P4

sub69211-12220

sub69211-52090

main69211-12220-K0iCE121,NZE121,124,ZZE12#..WG200209-200404

DARK PURPLE MC.,946

sub69211-12220

sub69211-52090

main69211-12220-P0iNZE12#,ZZE122..G,LXL,X200209-200609

SILVER M.M.,1E7

sub69211-12220

sub69211-52090

main69211-12220-R3iNZE12#,ZZE122..G,LXL,X200404-200609

LT.BLUE ME.,8Q6

sub69211-12220

sub69211-52090

main69211-12902iCE121,NZE12#,ZZE12#..G,S,X,ZAER200103-200209

main69211-42010iCE121,NZE12#..SED..X200008-200609

main69211-42020-A3iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200101

SUPER WHITE 2,040

sub69211-12220

main69211-42020-A4iCE121,NZE121,124..G200008-200101

WHITE PM.,057

sub69211-12220

main69211-42020-B2iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200101

SILVER ME.,199

sub69211-12220

main69211-42020-B3iCE121,NZE12#200008-200101

SILVER ME.GR.,1D9

sub69211-12220

main69211-42020-C1iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200101

BLACK ME,205

sub69211-12220

main69211-42020-D1iZZE12#..WG200008-200101

SUPER RED II,3E5

sub69211-12220

main69211-42020-H0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200101

TURQUOISE M.M.,769

sub69211-12220

main69211-42020-J2iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200101

DK.BLUE M.M.,8P4

sub69211-12220

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-12010iNZE121,124..SED..X200505

main69217-12010iZZE122,124..LXL200008-200209

main69217-12010iNZE121,124..SED..X200512-200609

main69217-12010iCE121,NZE121,124,ZZE122,124..G,LXL200209-200404

main69217-12040-A0iNZE12#,ZZE12#200008-200609

sub69217-12040

main69217-12040-A1iCE121,NZE12#..SED..X200008-200209

sub69217-12040

main69217-12040-A4iCE121,NZE12#..SED200209-200404

sub69217-12040

main69217-12040-A7iNZE121,124,ZZE122,124..WG200512-200609

sub69217-12040

main69217-12040-A7iNZE12#,ZZE122,124..SED200404-200609

sub69217-12040

main69217-12040-B0iNZE12#,ZZE12#200008-200609

sub69217-12040

main69217-12040-B1iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200209

sub69217-12040

main69217-12040-B4iCE121,NZE12#,ZZE12#..G,S,X,ZAER200209-200609

sub69217-12040

main69217-12040-C0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200110

sub69217-12040

main69217-12040-C2iCE121,NZE12#,ZZE12#..G,S,X,ZAER200110-200609

sub69217-12040

main69217-12040-D0iCE121,NZE121,124,ZZE12#..WG200008-200609

sub69217-12040

main69217-12040-D3iCE121,NZE12#,ZZE12#..G,S,X,ZAER200209-200404

sub69217-12040

main69217-12040-G1iCE121,NZE121,124..G200110-200404

sub69217-12040

main69217-12040-H0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200209

sub69217-12040

main69217-12040-J0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200609

sub69217-12040

main69217-12040-K0iCE121,NZE121,124,ZZE12#..WG200209-200404

sub69217-12040

main69217-12040-R0iNZE12#,ZZE12#200404-200609

sub69217-12040

main69217-12050iCE121,NZE121,124,ZZE122,124..G,LXL200209-200404

main69217-12050iZZE122,124..LXL200008-200209

main69217-12050iNZE121,124..SED..X200505

main69217-12050iNZE121,124..SED..X200512-200609

main69217-42010iCE121,NZE12#..SED..X200209-200404

main69217-42010iNZE12#..SED..X200404-200609

main69217-42010iCE121,NZE12#..SED..X200008-200209

main69217-42020-03iNZE121,124,ZZE122,124..WG200512-200609

sub69217-42020

sub69217-42010

main69217-42020-03iNZE12#,ZZE122,124..SED200404-200609

sub69217-42020

sub69217-42010

main69217-42020-A3iCE121,NZE12#,ZZE12#..G,S,X,ZAER200103-200609

sub69217-42020

sub69217-42010

main69217-42020-A3iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200103

SUPER WHITE 2,040

sub69217-42020

sub69217-42010

main69217-42020-A4iCE121,NZE121,124..G200103-200209

sub69217-42020

sub69217-42010

main69217-42020-A4iCE121,NZE121,124..G200008-200103

WHITE PM.,057

sub69217-42020

sub69217-42010

main69217-42020-A8iCE121,NZE12#..SED200209-200404

sub69217-42020

sub69217-42010

main69217-42020-B1iNZE12#,ZZE12#200103-200609

sub69217-42020

sub69217-42010

main69217-42020-B1iCE121,NZE12#200008-200103

SILVER ME.GR.,1D9

sub69217-42020

sub69217-42010

main69217-42020-B2iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200103

SILVER ME.,199

sub69217-42020

sub69217-42010

main69217-42020-B2iCE121,NZE12#,ZZE12#..G,S,X,ZAER200103-200209

sub69217-42020

sub69217-42010

main69217-42020-C1iCE121,NZE12#,ZZE12#..G,S,X,ZAER200103-200110

sub69217-42020

sub69217-42010

main69217-42020-C1iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200103

BLACK ME,205

sub69217-42020

sub69217-42010

main69217-42020-C2iCE121,NZE12#,ZZE12#..G,S,X,ZAER200110-200609

sub69217-42020

sub69217-42010

main69217-42020-D1iZZE12#..WG200103-200609

sub69217-42020

sub69217-42010

main69217-42020-D1iZZE12#..WG200008-200103

SUPER RED II,3E5

sub69217-42020

sub69217-42010

main69217-42020-D5iCE121,NZE12#,ZZE12#..G,S,X,ZAER200209-200404

sub69217-42020

sub69217-42010

main69217-42020-G2iCE121,NZE12#..SED200110-200404

sub69217-42020

sub69217-42010

main69217-42020-H0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200103-200209

sub69217-42020

sub69217-42010

main69217-42020-H0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200103

TURQUOISE M.M.,769

sub69217-42020

sub69217-42010

main69217-42020-J2iNZE12#,ZZE12#200103-200609

sub69217-42020

sub69217-42010

main69217-42020-J2iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200103

DK.BLUE M.M.,8P4

sub69217-42020

sub69217-42010

main69217-42020-J7iNZE12#,ZZE12#200404-200609

sub69217-42020

sub69217-42010

main69217-42020-K0iCE121,NZE121,124,ZZE12#..WG200209-200404

sub69217-42020

sub69217-42010

main69217-42020-P0iNZE12#,ZZE12#200209-200609

sub69217-42020

sub69217-42010

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-12260iZZE122,124..LXL200102-200404

main69210-12260iNZE121,124..SED..X200505

main69210-12260iNZE121,124..SED..X200512-200609

main69211-12200iZZE122,124..LXL200008-200102

sub69210-12260

main69211-12220-02iNZE12#,ZZE122,124..SED200404-200609

WHITE PEARL CS.,073

sub69211-12220

sub69211-52090

main69211-12220-02iNZE121,124,ZZE122,124..WG200512-200609

sub69211-12220

sub69211-52090

main69211-12220-A0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200101-200609

SUPER WHITE 2,040

sub69211-12220

sub69211-52090

main69211-12220-A1iCE121,NZE121,124..G200101-200209

WHITE PM.,057

sub69211-12220

sub69211-52090

main69211-12220-A5iCE121,NZE12#..SED200209-200404

WHITE PEARL CS.,065

sub69211-12220

sub69211-52090

main69211-12220-B0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200101-200209

SILVER ME.,199

sub69211-12220

sub69211-52090

main69211-12220-B1iCE121,NZE12#200101-200609

SILVER ME.GR.,1D9

sub69211-12220

sub69211-52090

main69211-12220-C0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200101-200110

BLACK ME,205

sub69211-12220

sub69211-52090

main69211-12220-C2iNZE12#,ZZE12#200110-200609

BLACK MC.,209

sub69211-12220

sub69211-52090

main69211-12220-D0iNZE121,124,ZZE12#..WG200101-200609

SUPER RED II,3E5

sub69211-12220

sub69211-52090

main69211-12220-D2iCE121,NZE12#,ZZE12#..G,S,X,ZAER200209-200404

BORDEAUX MC.,3P2

sub69211-12220

sub69211-52090

main69211-12220-G2iCE121,NZE12#..SED200110-200404

DK.GREEN MC.P.I.O.,6N9

sub69211-12220

sub69211-52090

main69211-12220-H1iCE121,NZE12#,ZZE12#..G,S,X,ZAER200101-200209

TURQUOISE M.M.,769

sub69211-12220

sub69211-52090

main69211-12220-J0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200101-200609

DK.BLUE M.M.,8P4

sub69211-12220

sub69211-52090

main69211-12220-K0iCE121,NZE121,124,ZZE12#..WG200209-200404

DARK PURPLE MC.,946

sub69211-12220

sub69211-52090

main69211-12220-P0iNZE12#,ZZE12#200209-200609

SILVER M.M.,1E7

sub69211-12220

sub69211-52090

main69211-12220-R3iNZE12#,ZZE12#200404-200609

LT.BLUE ME.,8Q6

sub69211-12220

sub69211-52090

main69211-12902iCE121,NZE12#,ZZE12#..G,S,X,ZAER200103-200209

main69211-42010iCE121,NZE12#..SED..X200008-200609

main69211-42020-A3iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200101

SUPER WHITE 2,040

sub69211-12220

main69211-42020-A4iCE121,NZE121,124..G200008-200101

WHITE PM.,057

sub69211-12220

main69211-42020-B2iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200101

SILVER ME.,199

sub69211-12220

main69211-42020-B3iCE121,NZE12#200008-200101

SILVER ME.GR.,1D9

sub69211-12220

main69211-42020-C1iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200101

BLACK ME,205

sub69211-12220

main69211-42020-D1iZZE12#..WG200008-200101

SUPER RED II,3E5

sub69211-12220

main69211-42020-H0iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200101

TURQUOISE M.M.,769

sub69211-12220

main69211-42020-J2iCE121,NZE12#,ZZE12#..G,S,X,ZAER200008-200101

DK.BLUE M.M.,8P4

sub69211-12220

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-42020iCE121,NZE12#,ZZE12#200008-200609

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69242-42010iCE121,NZE12#,ZZE12#200008-200609

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A1iNZE12#,ZZE122,124..G,LXL,X200008-200609

IVORY,TRIM0#

sub69283-30040

main69283-30040-B8iCE121,NZE12#,ZZE122,124..SED200008-200209

STONE,TRIM1#

sub69283-30040

main69283-30040-P0iCE121,NZE121,124..WG200008-200609

DK.GRAY,TRIM1#

sub69283-30040

main69283-30040-P1iNZE12#,ZZE122,124..SED200209-200609

MD.GRAY,TRIM1#

sub69283-30040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-30040-A1iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200609

IVORY,TRIM0#

sub69283-30040

main69283-30040-B8iCE121,NZE12#,ZZE122,124..SED200008-200209

STONE,TRIM1#

sub69283-30040

main69283-30040-P0iCE121,NZE121,124,ZZE12#..WG200008-200609

DK.GRAY,TRIM1#

sub69283-30040

main69283-30040-P1iNZE12#,ZZE122,124..SED200209-200609

MD.GRAY,TRIM1#

sub69283-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iZZE122,124..LXL200008-200609

main69293-12040iCE121,NZE12#,ZZE12#..S,X,ZAER200008-200609

69310LOCK ASSY, FRONT DOOR, RH

main69030-12440iCE121,NZE12#,ZZE12#200008-200609

main69310-12570iCE121,NZE12#..SED..X200008-200609

69320LOCK ASSY, FRONT DOOR, LH

main69040-12450iNZE12#..SED..X200008-200609

main69040-12520iCE121,NZE12#,ZZE12#200008-200609

main69320-12690iCE121,NZE12#..SED..X200008-200609

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iCE121,NZE12#,ZZE12#200008-200609

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iCE121,NZE12#,ZZE12#200008-200609

9014850003

main90148-50003

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9015960550

main90159-60550

9016650003

main90166-50003

25 parts on this diagram · 2 diagrams in section
