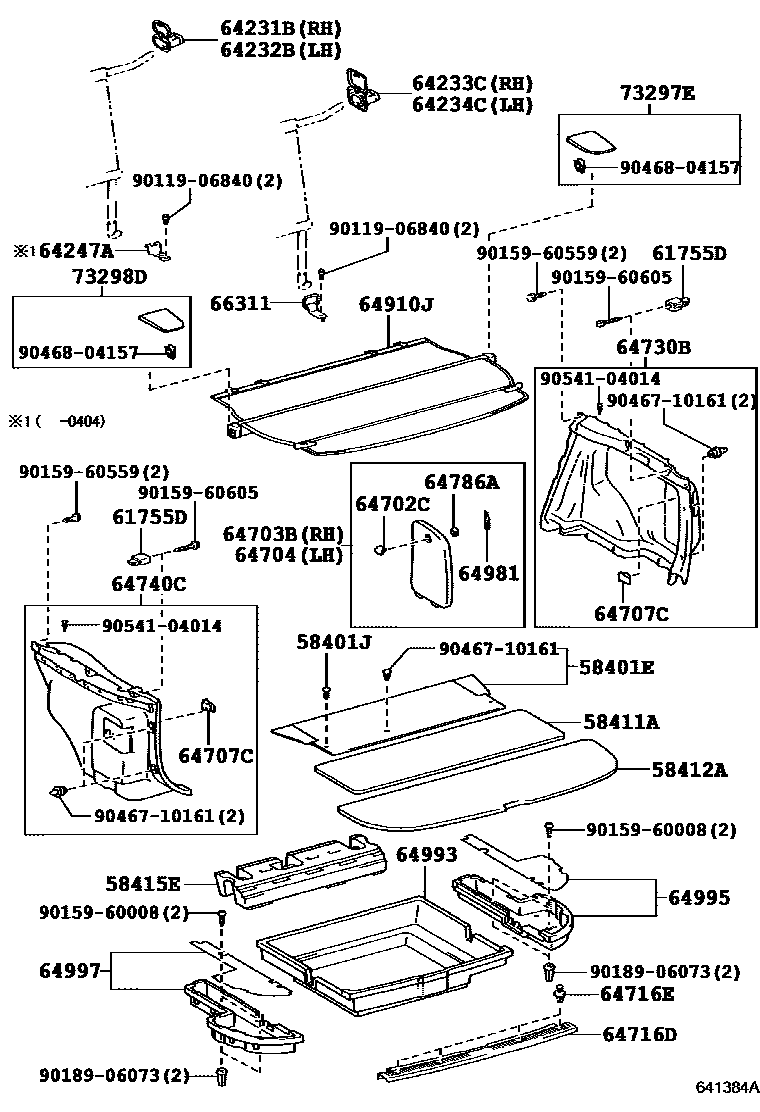

DECK BOARD & DECK TRIM COVER

58401EBOARD SUB-ASSY, DECK

main58401-13060-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

main58401-13060-B0iCE121,NZE121,124..WG200008-200609

GRAY,TRIM1#

58401JCLIP(FOR DECK BOAD)

main90467-06048-A2iCE121,NZE121,124..WG200008-200209

IVORY,TRIM03

sub90467-06048

main90467-06048-A2iCE121,NZE121,124..WG200209-200609

IVORY,TRIM0#

sub90467-06048

main90467-06048-C0iCE121,NZE121,124..WG200008-200209

BLACK,TRIM03,18

sub90467-06048

main90467-06048-C0iZZE12#..WG200008-200209

BLACK,TRIM18

sub90467-06048

main90467-06048-P1iCE121,NZE121,124,ZZE12#..WG200209-200609

DK.GRAY,TRIM1#

sub90467-06048

main90467-06048-P1iCE121,NZE121,124..WG200008-200209

DK.GRAY,TRIM18

sub90467-06048

58411ABOARD, DECK, NO.1

main58411-13080-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

main58411-13080-B0iNZE121,124,ZZE12#..WG200008-200609

GRAY,TRIM1#

58412ABOARD, DECK, NO.2

main58412-13070-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

main58412-13070-B0iCE121,NZE121,124..WG200008-200609

GRAY,TRIM1#

58415EBOARD, REAR FLOOR, NO.1

main58415-13050iCE121,NZE121,124,ZZE12#..WG200008-200108

sub58415-13070

main58415-13070iCE121,NZE121,124,ZZE12#..WG200108-200404

main58415-13090iNZE121,124,ZZE12#..WG200404-200609

61755DRETAINER, DECK SIDE TRIM, UPPER

main61755-32020iCE121,NZE121,124,ZZE12#..WG200008-200609

64231BHOOK, ROOM PARTITION NET, FRONT RH

main64231-13030-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

sub64231-13030

main64231-13030-B0iZZE12#..WG200008-200609

LT.GRAY,TRIM1#

sub64231-13030

main64231-13040-A0iCE121,NZE121,124..WG200008-200609

sub64231-13040

main64231-13040-B0iZZE12#..WG200008-200609

sub64231-13040

64232BHOOK, ROOM PARTITION NET, FRONT LH

main64232-13020-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

sub64232-13020

main64232-13020-B0iCE121,NZE121,124,ZZE12#..WG200008-200609

LT.GRAY,TRIM1#

sub64232-13020

main64232-13030-A0iCE121,NZE121,124..WG200008-200609

sub64232-13030

main64232-13030-B0iZZE12#..WG200008-200609

sub64232-13030

64233CHOOK, ROOM PARTITION NET, REAR RH

main64233-13020-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

sub64233-13020

main64233-13020-B0iCE121,NZE121,124,ZZE12#..WG200008-200609

LT.GRAY,TRIM1#

sub64233-13020

64234CHOOK, ROOM PARTITION NET, REAR LH

main64234-13020-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

sub64234-13020

main64234-13020-B0iNZE121,124,ZZE12#..WG200008-200609

LT.GRAY,TRIM1#

sub64234-13020

64247ABRACKET, CENTER PILLAR GARNISH, RH

main64247-13010iCE121,NZE121,124,ZZE12#..WG200008-200405

64702CKNOB, WASHER TANK COVER

main64982-16020-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

sub64982-16020

main64982-16020-B6iNZE121,124,ZZE12#..WG200008-200609

DK.GRAY,TRIM1#

sub64982-16020

64703BPANEL ASSY, DECK TRIM SIDE, RH

main64073-13010-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

main64073-13010-B0iZZE12#..WG200008-200609

GRAY,TRIM1#

64704COVER SUB-ASSY, DECK SIDE TRIM, LH

main64074-13010-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

main64074-13010-B0iCE121,NZE121,124..WG200008-200609

GRAY,TRIM1#

64707CKNOB, JACK COVER

main64769-13020-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

sub64769-13020

main64769-13020-B0iCE121,NZE121,124,ZZE12#..WG200008-200609

GRAY,TRIM1#

sub64769-13020

64716DCOVER, DECK TRIM, REAR

main64716-13120-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

sub64716-13120

main64716-13120-B0iNZE121,124,ZZE12#..WG200008-200609

DK.GRAY,TRIM1#

sub64716-13120

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-07152-A0iNZE121,124..WG200008-200609

IVORY,TRIM0#

sub90467-07152

main90467-07152-B4iCE121,NZE121,124..WG200008-200609

DK.GRAY,TRIM1#

sub90467-07152

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-13100-A0iCE121,NZE121,124..WG200008-200404

IVORY,TRIM0#

sub64730-13101

main64730-13100-B0iCE121,NZE121,124..WG200008-200404

GRAY,TRIM1#

sub64730-13101

main64730-13101-A0iNZE121,124..WG200404-200609

IVORY,TRIM0#

main64730-13101-B0iNZE121,124,ZZE12#..WG200404-200609

GRAY,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-13120-A0iCE121,NZE121,124..WG200008-200404

IVORY,TRIM0#

sub64740-13121

main64740-13120-B0iCE121,NZE121,124..WG200008-200404

GRAY,TRIM1#

sub64740-13121

main64740-13121-A0iNZE121,124..WG200404-200609

IVORY,TRIM0#

main64740-13121-B0iNZE121,124,ZZE12#..WG200404-200609

GRAY,TRIM1#

64786APLATE, JACK COVER

main64786-20010iNZE121,124,ZZE12#..WG200008-200609

64910JCOVER ASSY, TONNEAU

main64910-13020-A0iCE121,NZE121,124..WG200008-200105

IVORY,TRIM0#

sub64910-13021

main64910-13020-B0iZZE12#..WG200008-200105

DK.GRAY,TRIM1#

sub64910-13021

main64910-13021iCE121,NZE121,124..WG200108-200110

sub64910-13022

main64910-13021-A0iCE121,NZE121,124..WG200105-200108

IVORY,TRIM0#

sub64910-13022

main64910-13021-B0iZZE12#..WG200105-200110

DK.GRAY,TRIM1#

sub64910-13022

main64910-13022-A0iNZE121,124..WG200110-200609

IVORY,TRIM0#

sub64910-13022

sub64910-13023

main64910-13022-B0iCE121,NZE121,124,ZZE12#..WG200110-200609

DK.GRAY,TRIM1#

sub64910-13022

sub64910-13023

64981STOPPER, WASHER TANK COVER

main64981-16021iNZE121,124,ZZE12#..WG200008-200609

64993BOX, DECK FLOOR, REAR

main64993-13010iCE121,NZE121,124,ZZE12#..WG200008-200609

main64993-13020iCE121,NZE121,124,ZZE12#..WG200008-200309

64995BOX, DECK FLOOR, RH

main64995-13010iNZE121,124,ZZE12#..WG200008-200609

64997BOX, DECK FLOOR, LH

main64997-13010iCE121,NZE121,124,ZZE12#..WG200008-200609

66311HOOK, ROPE

main66310-13010iCE121,NZE121,124,ZZE12#..WG200008-200609

73297ECOVER, DECK TRIM SIDE BELT HOLE, RH

main73297-13030-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

sub73297-13030

main73297-13030-B0iCE121,NZE121,124,ZZE12#..WG200008-200609

DK.GRAY,TRIM1#

sub73297-13030

73298DCOVER,DECK TRIM SIDE BELT HOLE, LH

main73298-13030-A0iCE121,NZE121,124..WG200008-200609

IVORY,TRIM0#

sub73298-13030

main73298-13030-B0iNZE121,124,ZZE12#..WG200008-200609

DK.GRAY,TRIM1#

sub73298-13030

9011906840

main90119-06840

9015960008

main90159-60008

9015960559

main90159-60559

9015960605

main90159-60605

9018906073

main90189-06073

9046710161

main90467-10161

9046804157

main90468-04157

9054104014

main90541-04014

36 parts on this diagram · 1 diagram in section
