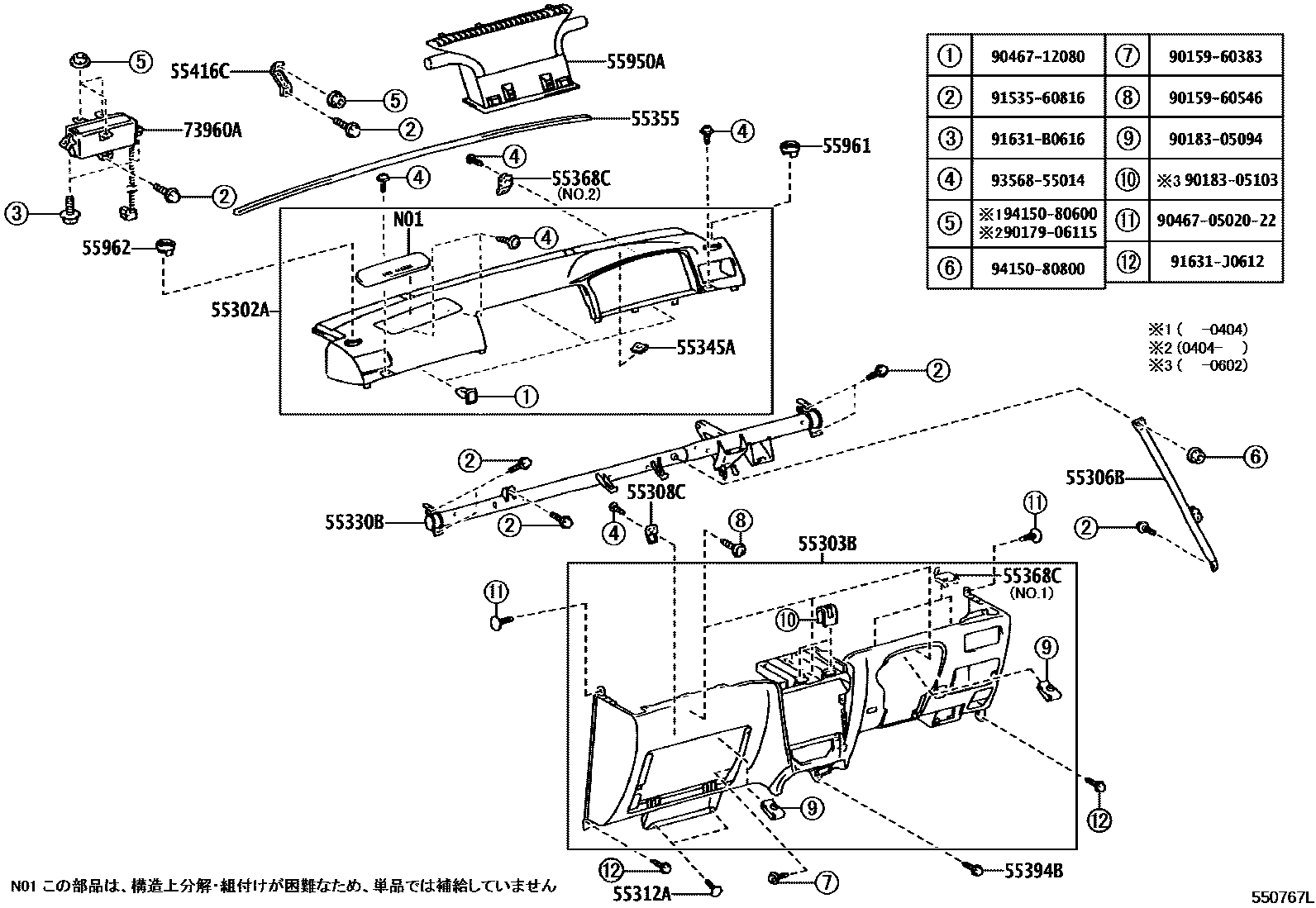

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12010-B0iCE121,NZE12#,ZZE12#200209-200404

main55302-12010-E0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200209

main55302-12020-B0iCE121,NZE120,121..SED..X200209-200404

main55302-12060-B0iNZE12#,ZZE12#200404-200609

DK.GRAY,TRIM1#

main55302-12060-E0iNZE12#,ZZE122,124..G,LXL,X200404-200609

SANDAL WOOD,TRIM0#

main55302-12070-B0iNZE120,121..SED..X200404-200609

main55302-12070-E0iNZE120,121..SED..X200404-200609

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12240-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200102

IVORY,TRIM0#

main55303-12240-B0iCE121,NZE12#,ZZE122,124..SED200008-200102

STONE,TRIM1#

main55303-12240-B1iZZE12#..WG200008-200102

DK.GRAY,TRIM1#

main55303-12241-A0iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200404

IVORY,TRIM0#

main55303-12241-B0iCE121,NZE12#,ZZE122,124..SED200102-200209

STONE,TRIM1#

main55303-12241-B1iNZE121,124,ZZE12#..WG200404-200602

DK.GRAY,TRIM1#

main55303-12241-B2iCE121,NZE12#,ZZE122,124..SED200209-200404

MD.GRAY,TRIM1#

main55303-12242-A0iNZE12#,ZZE122,124..G,LXL,X200602-200609

IVORY,TRIM0#

main55303-12242-B1iNZE121,124,ZZE12#..WG200602-200609

DK.GRAY,TRIM1#

main55303-12242-B2iNZE12#,ZZE122,124..SED200602-200609

MD.GRAY,TRIM1#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-12270iCE121,NZE12#,ZZE12#200008-200209

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12280iCE121,NZE12#,ZZE12#200008-200209

55312ACLIP, INSTRUMENT PANEL

main90467-06089-C0×2iCE121,NZE12#,ZZE122,124..SED; CE121,NZE121,124..WG; ZZE12#..WG200209-200404

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM1#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12350iNZE120,121200008-200110

main55330-12351iNZE120,121200110-200209

main55330-12390iCE121,NZE124,ZZE12#200008-200111

main55330-12490iZZE122..5F;NZE124,ZZE123,124200404-200602

main55330-12500iNZE120,121;ZZE122..4FC200209-200404

main55330-12501iNZE120,121;ZZE122..4FC200602-200609

main55330-12740iZZE122..5F;NZE124,ZZE123,124200602-200609

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iCE121,NZE12#,ZZE12#200008-200209

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52012iNZE12#,ZZE12#200404-200609

55368CBRACKET, METER MOUNTING

main55362-12050×2iNZE12#,ZZE12#200404-200601

NO.1

main55368-12090iCE121,NZE12#,ZZE12#200209-200404

main55368-12100iNZE12#,ZZE12#200404-200609

NO.2

55394BBOLT, INSTRUMENT PANEL

main55394-12010iCE121,NZE12#,ZZE12#200008-200209

main55394-12020iCE121,NZE12#,ZZE12#200008-200209

55416CRETAINER, INSTRUMENT CLUSTER FINISH PANEL

main55416-12030iCE121,NZE120,121..SED..X200008-200209

main55416-12040iNZE120,121..SED..X200404-200609

55950ANOZZLE ASSY, DEFROSTER

main55950-12240iCE121,NZE12#,ZZE12#200008-200209

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12220-B0iCE121,NZE121,124..WG; ZZE12#;CE121,NZE12#..SED200008-200209

DK.GRAY,TRIM1#

main55961-12220-E0iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200404

SANDAL WOOD,TRIM0#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-12220-B0iCE121,NZE121,124..WG; ZZE12#;CE121,NZE12#..SED200008-200209

DK.GRAY,TRIM1#

main55961-12220-E0iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200404

SANDAL WOOD,TRIM0#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12030iCE121,NZE12#,ZZE12#200008-200209

main73960-12110iNZE12#,ZZE12#200404-200609

9015960383

main90159-60383

9015960546

main90159-60546

9017906115

main90179-06115

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046712080

main90467-12080

9153560816

main91535-60816

91631B0616

main91631-B0616

91631J0612

main91631-J0612

9356855014

main93568-55014

9415080600

main94150-80600

9415080800

main94150-80800

28 parts on this diagram · 4 diagrams in section
