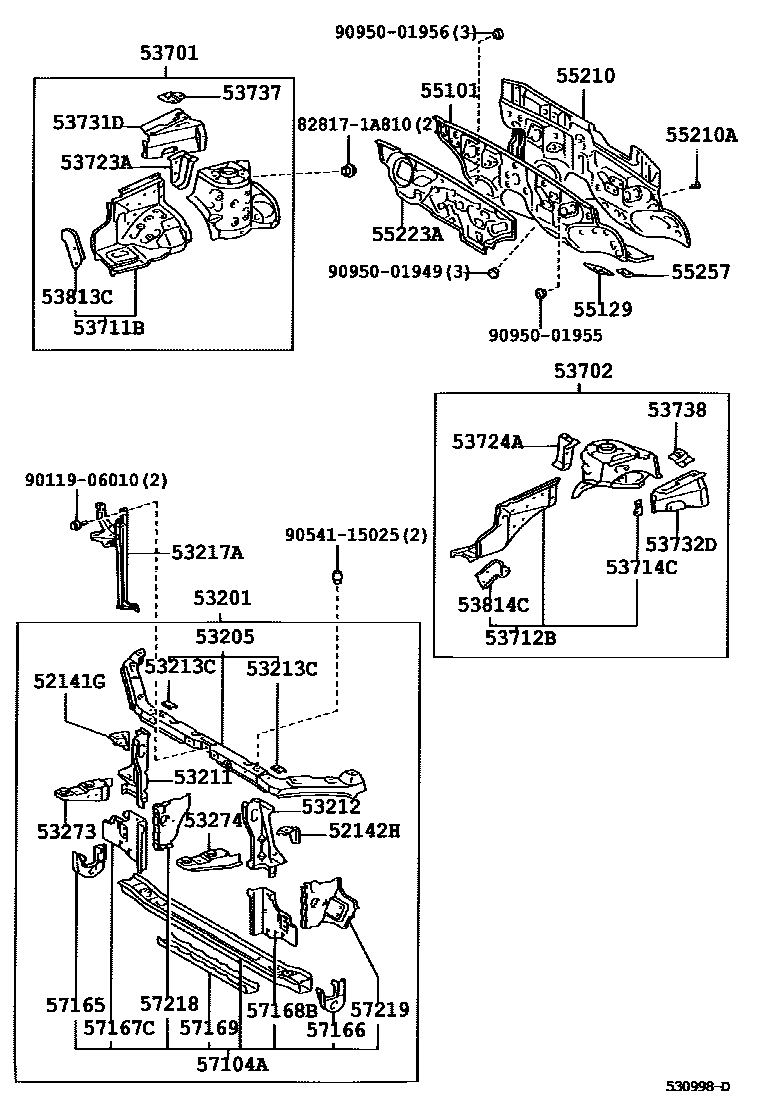

FRONT FENDER APRON & DASH PANEL
52141GSTAY, FRONT BUMPER, RH
52142HSTAY, FRONT BUMPER, LH
53201SUPPORT SUB-ASSY, RADIATOR
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53213CSUPPORT, RADIATOR, UPPER FRONT
53217ABRACE, HOOD LOCK SUPPORT
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
55129COVER, DASH PANEL HOLE
55210ACLIP
55223AINSULATOR, DASH PANEL, OUTER
55257COVER, DASH PANEL OPENING
57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
57169MEMBER, FRONT FLOOR, FRONT RH
57218GUSSET, FRONT SIDE MEMBER, NO.1
57219GUSSET, FRONT SIDE MEMBER, NO.2
828171A810PROTECTOR, WIRING HARNESS, NO.1
main82817-1A810
9011906010
main90119-06010
9054115025
main90541-15025
9095001949
main90950-01949
9095001955
main90950-01955
9095001956
main90950-01956
43 parts on this diagram · 2 diagrams in section
