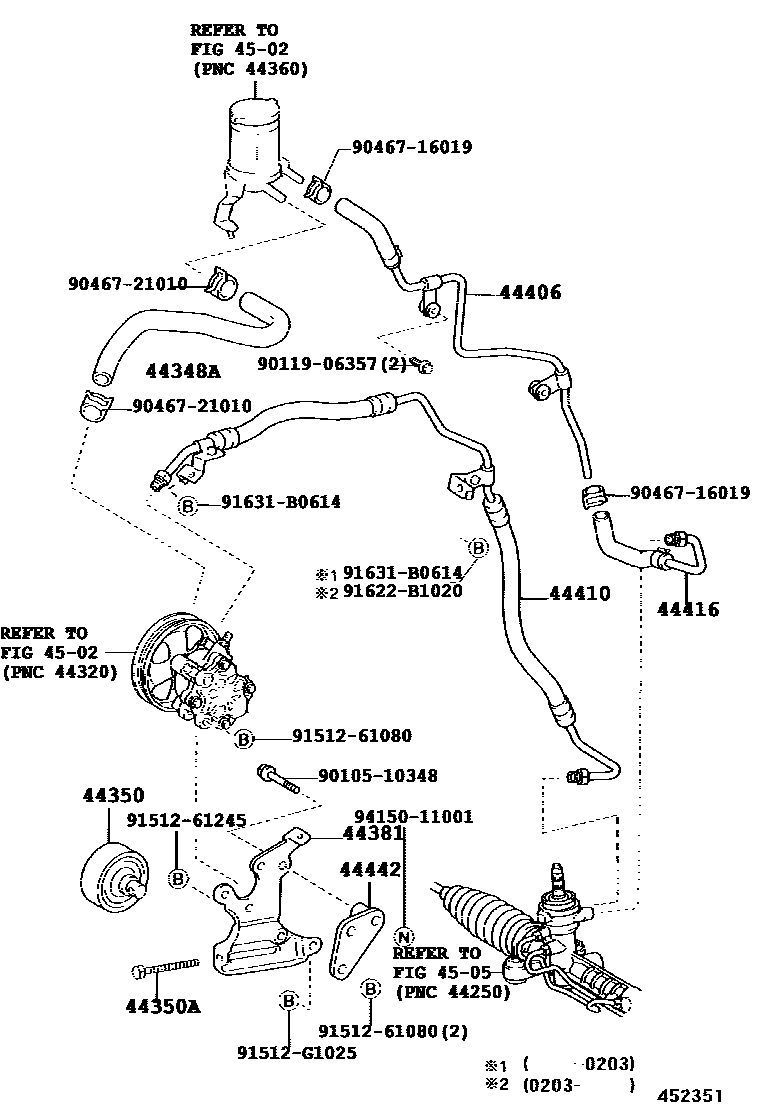

POWER STEERING TUBE

0001 1 0002 1 0003 1 0005 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-12080iNZE124200008-200107

main44348-12081iNZE124200209-200404

main44348-12090iZZE12#200008-200107

main44348-12091iZZE122..5F;ZZE123,124200209-200404

main44348-12100iCE121200008-200209

44350PULLEY ASSY, POWER STEERING IDLE

main44350-12070iCE121200209-200404

44350ABOLT(FOR POWER STEERING IDLE PULLEY)

main90109-08106iCE121200209-200404

44381BRACKET, POWER STEERING IDLE PULLEY

main44381-12040iCE121200209-200404

44406TUBE SUB-ASSY, RETURN

main44406-12230iZZE122,123200008-200107

main44406-12231iZZE123;ZZE122..5F200209-200404

main44406-12240iCE121200209-200404

main44406-12250iNZE124,ZZE124200008-200107

main44406-12251iNZE124,ZZE124200404-200609

44410TUBE ASSY, PRESSURE FEED

main44410-12600iZZE123;ZZE122..5F200404-200609

main44410-12610iCE121200008-200203

main44410-12611iCE121200203-200209

main44410-12620iNZE124200008-200209

main44410-12621iNZE124200309-200404

main44410-12630iZZE124200008-200209

main44410-12631iZZE124200309-200404

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-12250iCE121200008-200209

main44416-12260iNZE124,ZZE124200008-200209

main44416-12270iZZE122,123200008-200209

44442BRACKET, PUMP, REAR

main44442-12050iCE121200209-200404

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010510348

main90105-10348

9011906357

main90119-06357

9046716019

main90467-16019

9046721010

main90467-21010

9151261080

main91512-61080

9151261245

main91512-61245

91512G1025

main91512-G1025

91622B1020

main91622-B1020

91631B0614

main91631-B0614

9415011001

main94150-11001

20 parts on this diagram · 4 diagrams in section
