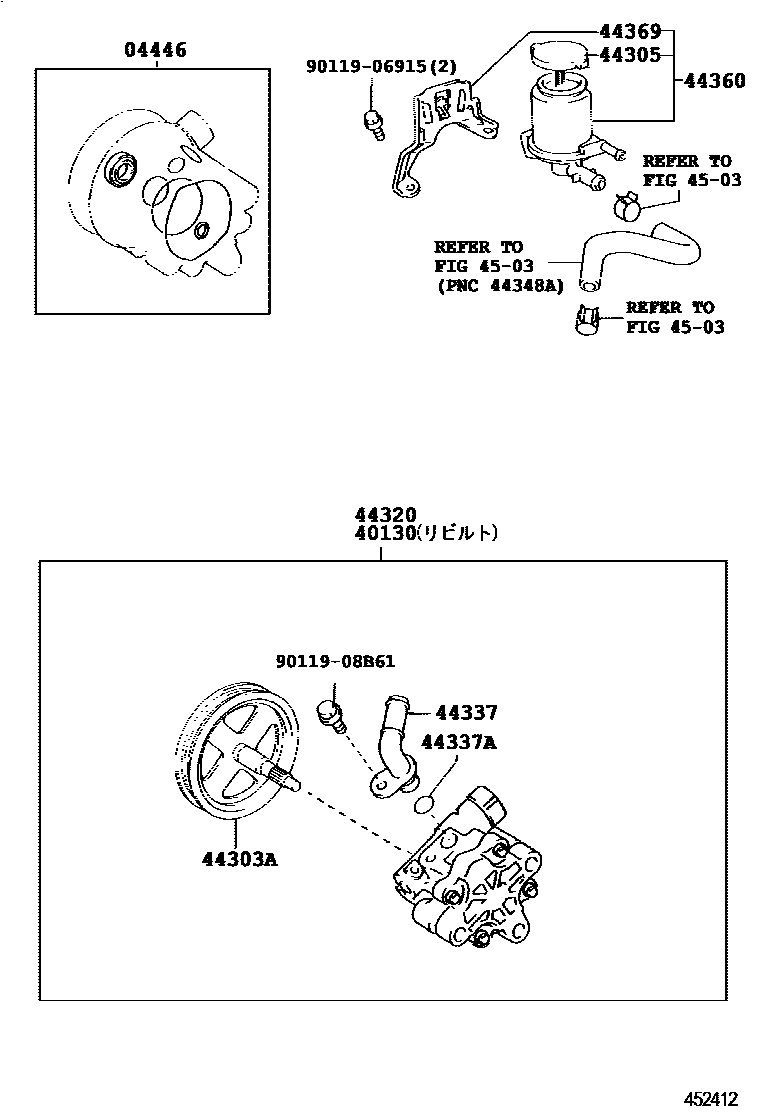

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20170iZZE122..5F;NZE124,ZZE123,124200510-200609

main04446-32050iZZE122..5F;NZE124,ZZE123,124200209-200404

40130PUMP ASSY,VANE REBUILT

main40130-12530iNZE124200404-200609

main40130-12540iZZE122,124200008-200209

main40130-12550iZZE123200209-200404

main40130-12560iCE121200008-200209

main40130-12570iZZE123200404-200609

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-12030iCE121200209-200404

main44303-20010iZZE123200008-200209

main44303-32010iZZE124;ZZE122..5F200209-200404

main44303-52020iNZE124200209-200404

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iCE121,NZE124,ZZE12#200008-200209

44320PUMP ASSY, VANE

main44310-12530iNZE124200209-200404

main44310-12540iZZE122,124200008-200209

main44310-12550iZZE123200209-200404

main44310-12560iCE121200008-200209

main44310-12570iZZE123200404-200609

44337UNION, POWER STEERING SUCTION PORT

main44337-12120iNZE124200008-200209

main44337-12130iCE121200008-200209

main44337-32110iZZE12#200008-200209

main44337-48010iZZE123200404-200609

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iCE121,NZE124,ZZE12#200008-200209

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-12080iCE121200209-200404

main44360-12100iZZE122..5F;NZE124,ZZE123,124200404-200609

44369BRACKET, OIL RESERVOIR, NO.1

main44369-12060iZZE122..5F;NZE124,ZZE123,124200404-200609

main44369-12070iZZE122..LXL200404-200609

4503POWER STEERING TUBE

→ Go to FIG 45-03

9011906915

main90119-06915

9011908B61

main90119-08B61

12 parts on this diagram · 3 diagrams in section
