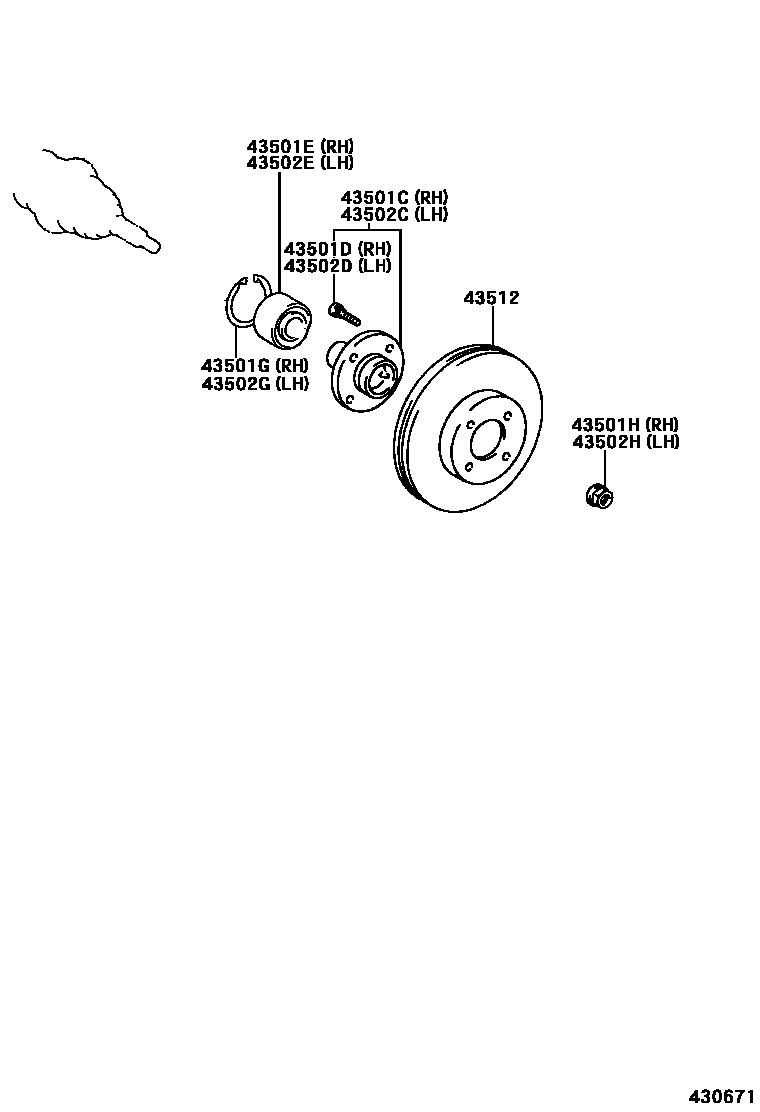

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-12140iCE121,NZE12#,ZZE12#200008-200609

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNZE12#,ZZE12#200008-200609

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066iNZE12#,ZZE12#200008-200609

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iCE121,NZE12#,ZZE12#200008-200609

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iCE121,NZE12#,ZZE12#200008-200609

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-12140iCE121,NZE12#,ZZE12#200008-200609

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNZE12#,ZZE12#200008-200609

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066iCE121,NZE12#,ZZE12#200008-200609

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iCE121,NZE12#,ZZE12#200008-200609

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iCE121,NZE12#,ZZE12#200008-200609

43512DISC, FRONT

main43512-12610iNZE120,121200008-200406

sub43512-12611

main43512-12611iNZE120,121200406-200609

main43512-12620iCE121,NZE124,ZZE122,124200008-200406

sub43512-12621

main43512-12621iNZE124,ZZE122,124200406-200609

main43512-12630iZZE123200008-200406

sub43512-12631

main43512-12631iZZE123200406-200609

11 parts on this diagram · 1 diagram in section
