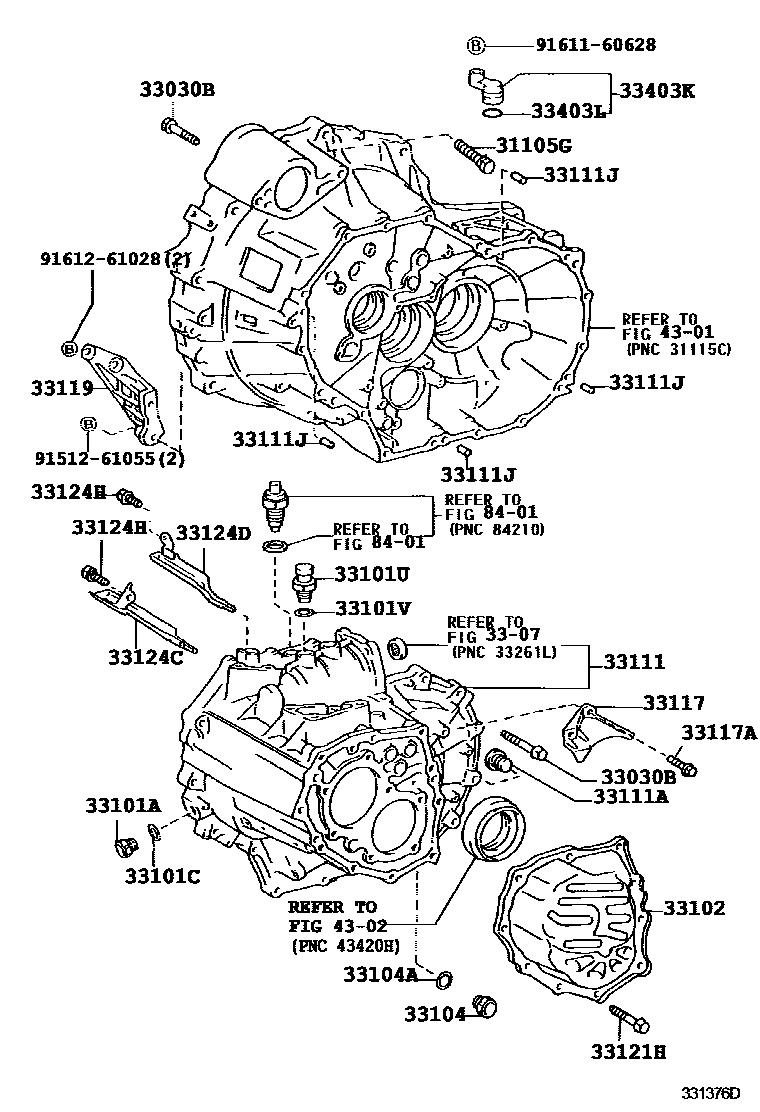

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1E351 0002 1C150 0003 1C51,C52 0004 1C60

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iCE121..5F200209-200404

main90119-12168×3iCE121..5F200008-200209

main91612-61045×7iNZE120,121..5F200512-200609

main91612-61050×7iNZE120,121..5F200404-200511

main91619-61255×2iZZE122,123..MTM200008-200209

main91641-H0820iCE121..5F200008-200209

main91642-81055×2iZZE122,123..MTM200209-200404

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064×13iNZE121,ZZE122,123..MTM200008-200209

main90105-08086×3iNZE120..5F; NZE121,ZZE122,123..MTM200209-200404

main90105-08126×17iCE121..5F200008-200209

main90105-08353×13iNZE121,ZZE122,123..MTM200209-200404

main90105-08430×3iNZE120..5F; NZE121,ZZE122..5F200407-200609

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iNZE120,121,ZZE122..5F200209-200404

main90341-18033iCE121..5F200008-200209

main90341-18038iZZE123..6F200008-200209

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iCE121,NZE120,121,ZZE122,123..MTM200008-200209

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03148iCE121..5F200008-200209

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008iCE121..5F200008-200209

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10023iNZE120..5F200404-200609

main33102-12021iNZE121,ZZE122..5F200008-200209

main33102-12041iCE121..5F200209-200306

main33102-12042iCE121..5F200306-200404

main33102-20050iZZE123..6F200008-200209

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iCE121,NZE120,121,ZZE122,123..MTM200008-200209

main90341-18033iZZE123..6F200505-200609

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCE121,NZE120,121,ZZE122,123..MTM200008-200209

33111CASE, MANUAL TRANSMISSION

main33101-20090iCE121..5F200301-200404

main33101-28040iCE121..5F200009-200107

main33101-28041iCE121..5F200107-200209

main33111-12230iZZE123..6F200008-200209

main33111-12231iZZE123..6F200404-200408

main33111-12232iZZE123..6F200408-200609

main33111-16053iNZE120..5F200008-200209

main33111-16063iNZE121..5F200008-200209

main33111-16064iNZE121..5F200501-200609

main33111-17100iZZE122..5F200008-200209

main33111-17101iZZE122..5F200209-200404

main33111-17102iZZE122..5F200501-200609

main33111-52110iNZE121..5F200501-200609

33111APLUG, MANUAL TRANSMISSION CASE

main90341-10065iZZE123..6F200209-200404

main90341-12004×2iCE121..5F200008-200209

main90341-18023iZZE123..6F200404-200609

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iCE121,NZE120,121,ZZE122,123..MTM200008-200209

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iCE121..5F200008-200209

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main91641-H0820×2iCE121..5F200008-200209

33119PLATE, STIFFENER, LH(MTM)

main33119-12110iCE121..5F200008-200209

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08373×9iNZE120..5F200209-200404

main90119-08429×9iZZE123..6F200505-200609

main90119-08630×10iCE121..5F200008-200209

main90119-08782×9iNZE121,ZZE122..5F200603-200609

main91611-60835×9iNZE121,ZZE122..5F200404-200603

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iNZE120..5F200209-200404

main33124-20050iNZE121,ZZE122,123..MTM200008-200209

main33124-28050iCE121..5F200008-200209

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iNZE120..5F200008-200209

main33124-12021iNZE121,ZZE122..5F200008-200209

main33124-20060iZZE123..6F200209-200404

main33124-28060iCE121..5F200008-200209

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830×2iCE121..5F200008-200209

main91611-G0820iNZE120,121,ZZE122,123..MTM200008-200209

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iCE121..5F200008-200209

main33403-35230iNZE120,121,ZZE122,123..MTM200008-200209

33403LRING, O

main96711-24018iCE121..5F200008-200209

main96711-24030iNZE120,121,ZZE122,123..MTM200008-200209

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9151261055

main91512-61055

9161160628

main91611-60628

9161261028

main91612-61028

28 parts on this diagram · 4 diagrams in section
