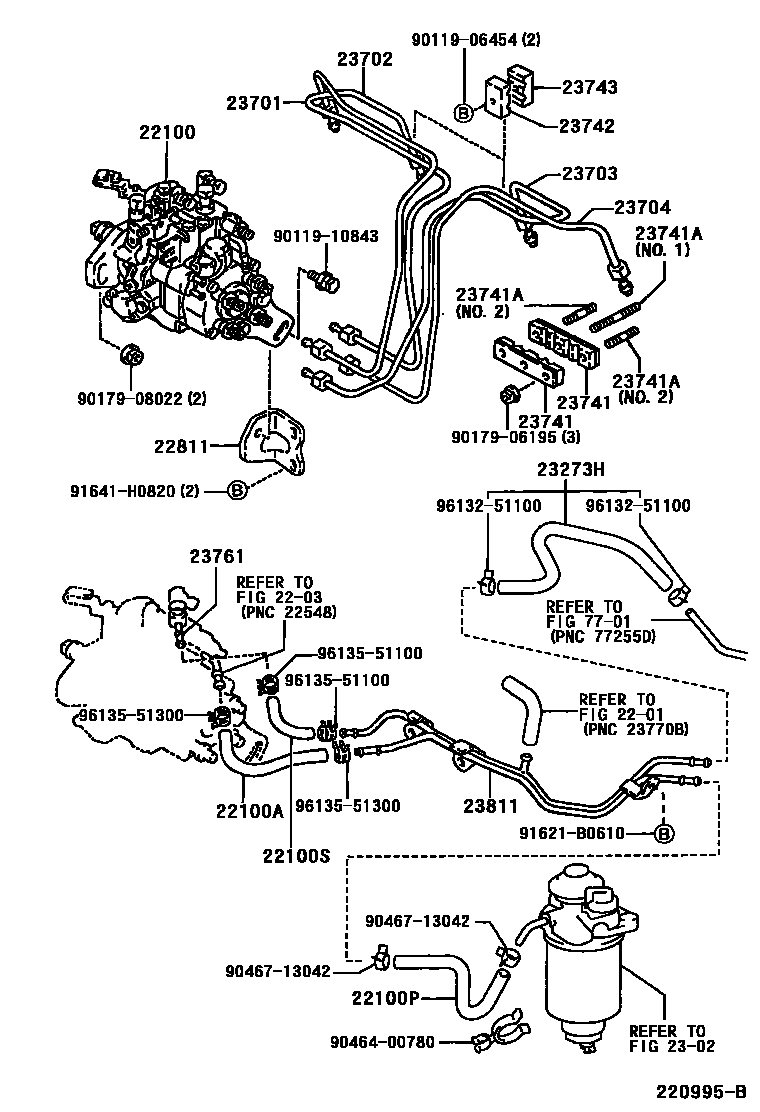

INJECTION PUMP ASSEMBLY

2201

2203

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6E210i3CE..CE121200008-200404

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23273-64030i3CE..CE121200008-200404

22100PHOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)

main23271-64300i3CE..CE121200008-200404

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23274-64020i3CE..CE121200008-200404

22811STAY, INJECTION PUMP, NO.1

main22811-64020i3CE..CE121200008-200404

2302

23273HHOSE, FUEL, NO.2

main23273-64150i3CE..CE121200008-200404

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64110i3CE..CE121200110-200404

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64110i3CE..CE121200110-200404

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64090i3CE..CE121200110-200404

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64110i3CE..CE121200110-200404

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010i3CE..CE121200008-200206

sub23741-64011

main23741-64011i3CE..CE121200206-200404

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i3CE..CE121200008-200404

sub90116-06095

main92122-60622i3CE..CE121200008-200404

23742CLAMP, INJECTION PIPE, NO.2

main23741-54010i3CE..CE121200008-200404

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010i3CE..CE121200008-200404

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-64110i3CE..CE121200008-200404

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64120i3CE..CE121200008-200404

7701

9011906454

main90119-06454

9011910843

main90119-10843

9017906195

main90179-06195

9017908022

main90179-08022

9046400780

main90464-00780

9046713042

main90467-13042

91621B0610

main91621-B0610

91641H0820

main91641-H0820

9613251100

main96132-51100

9613551100

main96135-51100

9613551300

main96135-51300

31 parts on this diagram · 1 diagram in section
