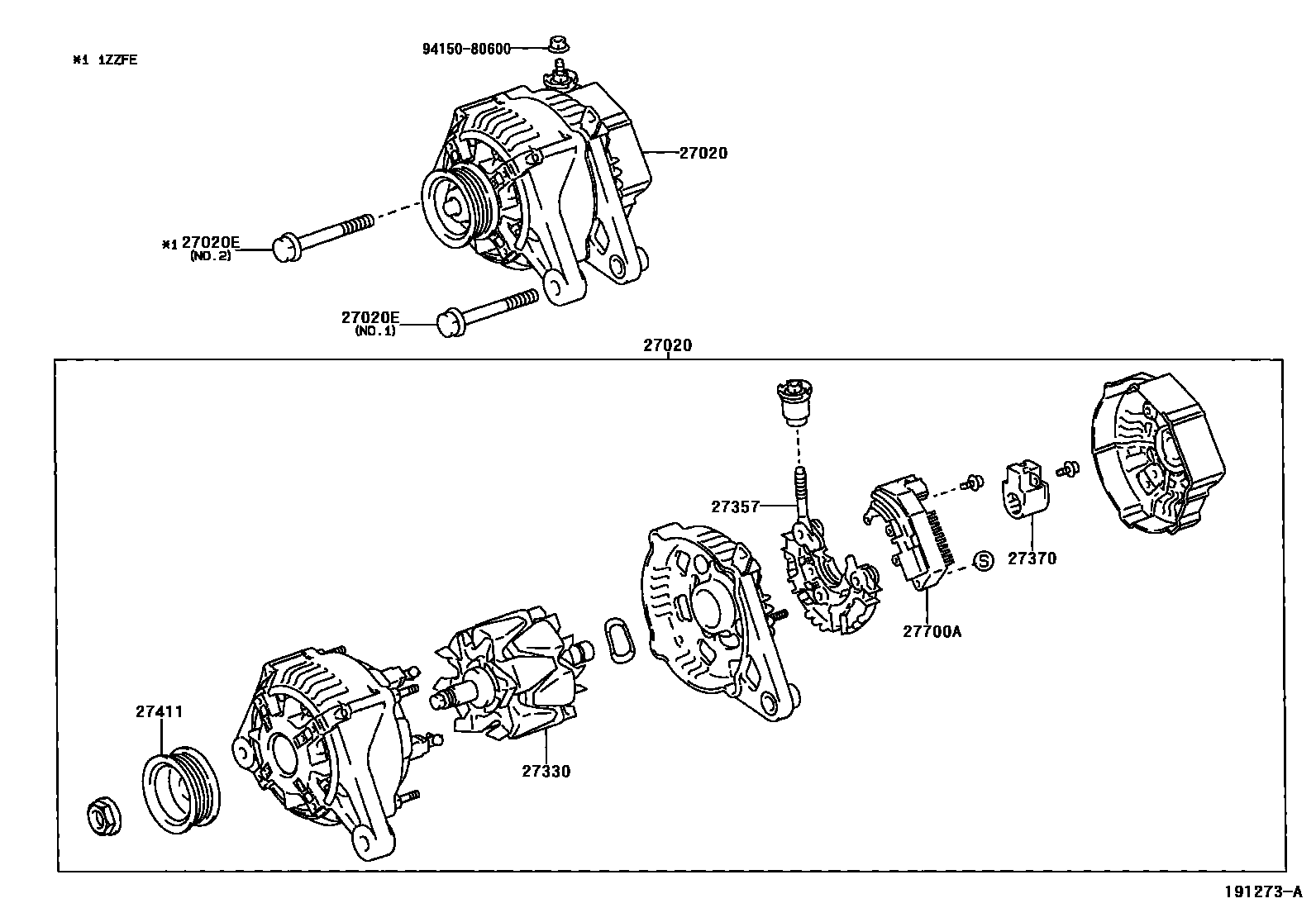

ALTERNATOR

0001 112V 80A 0003 112V 70A 0004 112V 80A 0005 112V 70A 0006 112V 80A 0007 112V 70A

27020ALTERNATOR ASSY

main27060-21050i2NZFE..NZE120..5F200008-200609

main27060-21060i2NZFE..NZE120..4FC200008-200609

main27060-21070i1NZFE..NZE121..5F200008-200609

main27060-21080i1NZFE..NZE121,124..4FC200008-200609

sub27060-21090

main27060-22040i1ZZFE..ZZE124200008-200209

sub27060-22130

main27060-22120i1ZZFE..ZZE122,124..4FC200209-200609

sub27060-22250

main27060-22140i1ZZFE..ZZE122..5F200406-200609

main27060-22170i1ZZFE..ZZE122..5F200404-200406

sub27060-22140

main27060-22180i1ZZFE..ZZE122..5F200008-200404

sub27060-22030

main27060-22190i2ZZGE..ZZE123..6F200008-200609

main27060-22200i2ZZGE..ZZE123..4FC200008-200609

main27060-64420i3CE..CE121..5F200008-200404

sub27060-64430

main27060-64430i3CE..CE121..4FC200008-200404

27020EBOLT(FOR ALTERNATOR)

main90105-10038i1NZFE,2NZFE..NZE12#200008-200609

main90105-10075i1ZZFE..ZZE122,124200008-200609

main90105-10223i2ZZGE..ZZE123200008-200609

main90901-05004i3CE..CE121200008-200404

main91511-80830i1ZZFE..ZZE122,124200008-200609

27330ROTOR ASSY, ALTERNATOR

main27330-16390i1ZZFE..ZZE122;3CE..CE121..5F;1NZFE,2NZFE,2ZZGE..NZE12#,ZZE123..4FC200008-200609

main27330-67100i1NZFE,2NZFE,2ZZGE..NZE120,121,ZZE123..MTM200008-200609

main27330-74550i1ZZFE..ZZE122,124..4FC200008-200609

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-21060i1NZFE,2NZFE,1ZZFE..NZE120,121,ZZE122..5F200008-200609

main27357-22050i2NZFE..NZE120..4FC;3CE,1ZZFE..CE121,ZZE122,124200008-200609

main27357-22190i2ZZGE..ZZE123..6F200109-200609

main27357-22200i2ZZGE..ZZE123..4FC200109-200609

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i1NZFE,2NZFE,1ZZFE,2ZZGE..NZE120,121,ZZE122,123..MTM200008-200609

main27370-75060i1NZFE,2NZFE..NZE120,121..4FC;3CE,1NZFE,1ZZFE,2ZZGE..CE121,NZE124,ZZE12#..4FC,5F200008-200609

27411PULLEY, ALTERNATOR

main27411-11060i1NZFE,2NZFE..NZE12#..4FC200008-200609

main27411-22080i1ZZFE,2ZZGE..ZZE122,123..MTM200008-200609

main27411-50050i1ZZFE..ZZE122..5F;2ZZGE..ZZE123..4FC200008-200609

main27411-50190i1ZZFE..ZZE122,124..4FC200209-200609

main27411-64360i3CE..CE121200008-200404

main27411-65010i1NZFE,2NZFE..NZE120,121..5F200008-200609

27700AREGULATOR ASSY, GENERATOR

main27700-13130i3CE..CE121200008-200404

main27700-20050i2ZZGE..ZZE123;1ZZFE..ZZE122..5F200008-200609

main27700-21020i2NZFE..NZE120..5F200008-200609

main27700-21030i2NZFE..NZE120..4FC200008-200609

sub27700-21020

main27700-21040i1ZZFE..ZZE122..4FC;1NZFE,1ZZFE..NZE121,124,ZZE124200008-200609

9415080600

main94150-80600

8 parts on this diagram · 6 diagrams in section
