VENTILATION HOSE

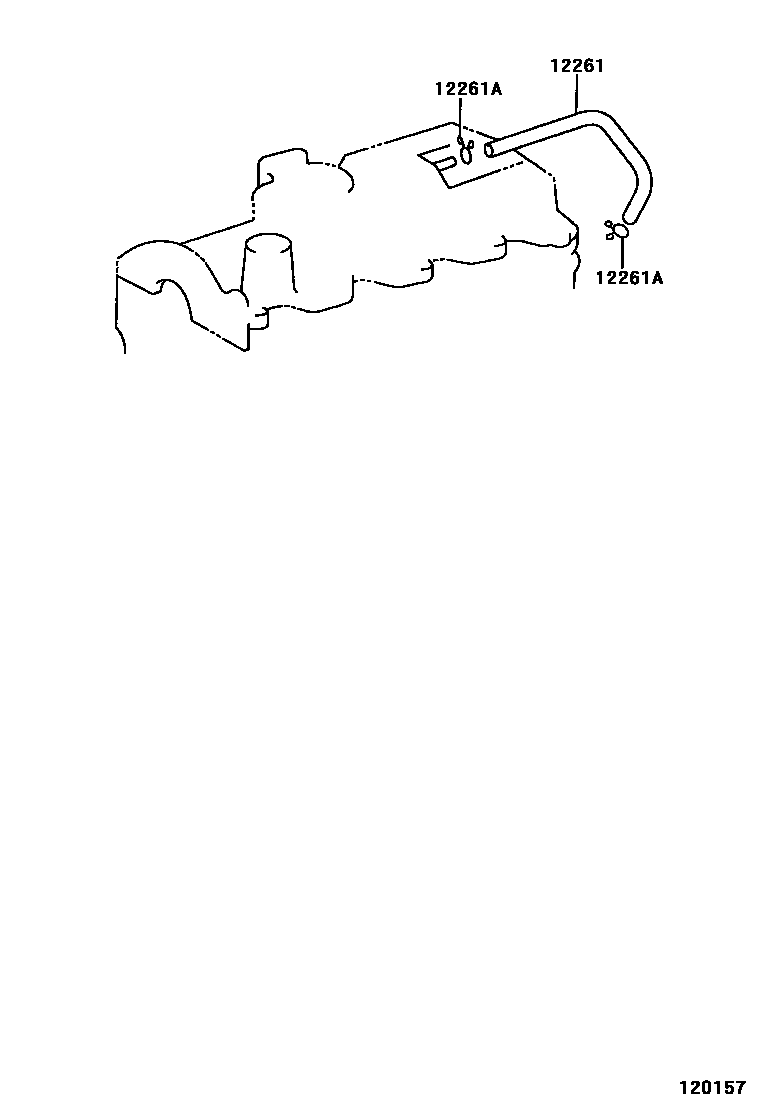

Parts diagram
12261HOSE, VENTILATION
main12261-0D040i200404-200609
main12261-21050i200008-200609
main12261-21060i200404-200609
main12261-22050i200008-200609
main12261-22050i200209-200404
main12261-64310i200008-200404
main12261-88601i200008-200609
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90466-24001i200008-200609
main90467-13057i200008-200609
main90467-14037i200008-200609
main90467-15120i200404-200609
main90467-17011i200008-200204
sub96134-51700
main90467-18003i200008-200404
main90467-21152i200008-200609
main90467-24038i200404-200609
main96134-51700i200204-200609

2 parts on this diagram · 4 diagrams in section
