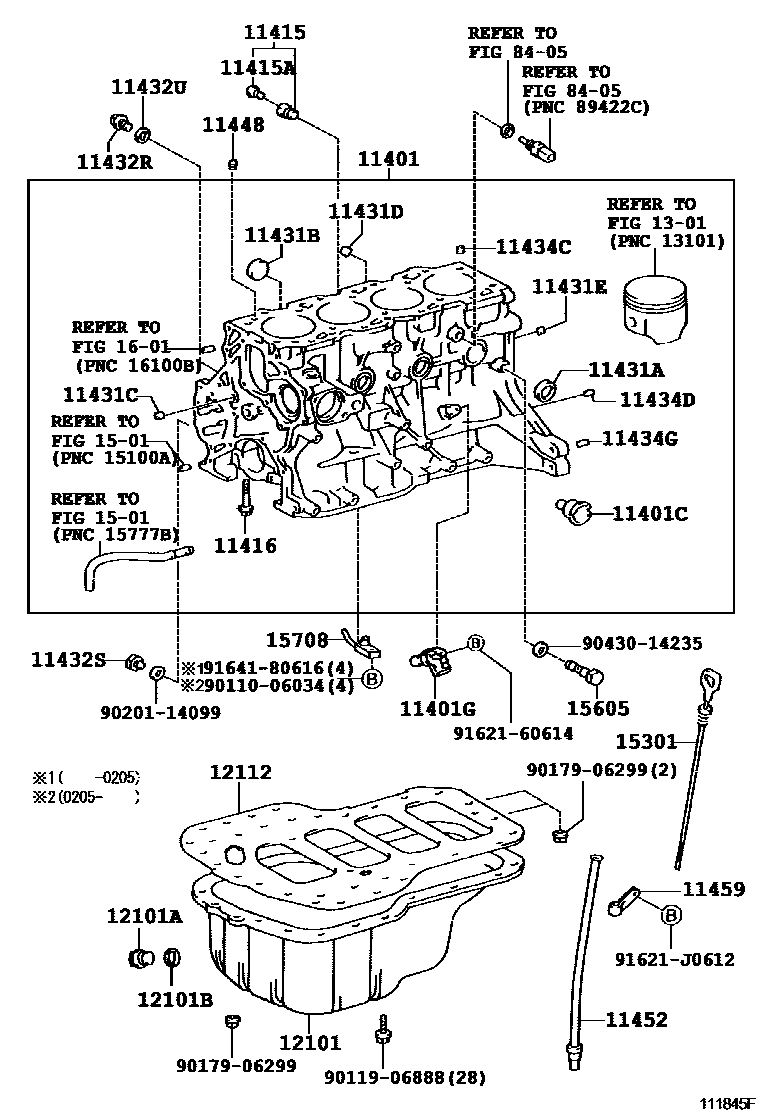

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-29675i2NZFE..NZE120200008-200209

sub11401-29845

main11401-29686i1NZFE..NZE121,124200008-200212

sub11401-29687

main11401-29755i1NZFE..NZE121..4FC200404-200408

sub11401-29865

main11401-29845i2NZFE..NZE120200209-200609

sub11401-29846

main11401-29855i1NZFE..NZE121,124200212-200609

sub11401-29856

main11401-29865i1NZFE..NZE121..4FC200408-200609

sub11401-29866

main11401-69856i3CE..CE121200008-200404

main11410-29018i1ZZFE..ZZE122200008-200101

sub11410-29096

main11410-29075i2ZZGE..ZZE123200008-200311

main11410-29086i1ZZFE..ZZE122200209-200212

sub11410-29135

main11410-29096i1ZZFE..ZZE122200008-200212

sub11410-29165

main11410-29165i1ZZFE..ZZE122,124200212-200609

sub11410-29166

sub16258-28030

sub16268-22021

sub16268-22101

sub16268-22111

sub16268-22161

sub16268-22171

main11410-29175i2ZZGE..ZZE123200404-200609

sub11410-29075

main11410-29225i1ZZFE..ZZE122,124200404-200405

sub11410-29165

main11410-29285i2ZZGE..ZZE123200311-200404

sub11410-29175

11401CFLANGE(FOR WATER BY-PASS)

main16353-64011i3CE..CE121200008-200404

11401GSENSOR, CRANK POSITION

main90919-05031i3CE..CE121200008-200404

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i3CE..CE121200008-200609

sub90910-09129

main90910-09107i1ZZFE..ZZE122,124200008-200609

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1NZFE,2NZFE..NZE12#200008-200609

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90080-10199i1ZZFE..ZZE122..4FC200501-200609

main90910-02125i1NZFE,2NZFE..NZE12#200008-200609

sub90910-02207

main90910-02135i3CE..CE121200008-200404

main91511-K0840i1ZZFE..ZZE122,124200008-200609

main91511-K0840i1ZZFE..ZZE122..4FC200501-200609

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-63500i3CE..CE121200008-200404

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-63000i3CE..CE121200008-200404

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-41800i3CE..CE121200008-200404

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-41800i3CE..CE121200008-200404

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-41800i3CE..CE121200008-200404

11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)

main90341-10002i3CE..CE121200008-200404

11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)

main90341-14032i3CE..CE121200008-200404

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-10027i3CE..CE121200008-200404

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i1NZFE,2NZFE..NZE12#200008-200609

main90253-14004i3CE..CE121200008-200404

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068i3CE..CE121200008-200404

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i3CE..CE121200008-200609

11448ORIFICE, CYLINDER BLOCK OIL

main11448-64020i3CE..CE121200008-200404

11452GUIDE, OIL LEVEL GAGE

main11452-21030i1NZFE,2NZFE..NZE12#200008-200609

main11452-22030i1ZZFE..ZZE122,124200008-200609

sub11452-22031

sub11459-22010

main11452-64030i3CE..CE121200008-200404

main11452-88600i2ZZGE..ZZE123200008-200609

11459SUPPORT, OIL LEVEL GAGE GUIDE

main90929-01049i3CE..CE121200008-200404

12101PAN SUB-ASSY, OIL

main12101-22024i1ZZFE..ZZE122,124200008-200609

main12101-22040i2ZZGE..ZZE123200008-200609

main12101-64141i3CE..CE121200008-200404

main12111-21032i1NZFE,2NZFE..NZE12#200008-200104

sub12111-21033

main12111-21033i1NZFE,2NZFE..NZE12#200104-200609

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1NZFE,2NZFE..NZE12#200008-200609

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1NZFE,2NZFE..NZE12#200008-200609

12112PAN, OIL NO.2

main12112-64090i3CE..CE121200008-200404

1301

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21030i1NZFE,2NZFE..NZE12#200008-200609

sub15301-21040

main15301-22030i1ZZFE..ZZE122,124200008-200507

sub15301-22050

main15301-22050i1ZZFE..ZZE122,124200507-200609

main15301-64110i3CE..CE121200008-200404

main15301-88600i2ZZGE..ZZE123200008-200609

15605VALVE SUB-ASSY, OIL CHECK

main15703-27010i3CE..CE121200008-200404

15708NOZZLE SUB-ASSY, OIL, NO.1

main15790-64021i3CE..CE121200008-200205

sub15790-64030

sub90110-06034

main15790-64030i3CE..CE121200205-200404

main15790-88601i2ZZGE..ZZE123200008-200609

1601

8405

9011006034

main90110-06034

9011906888

main90119-06888

9017906299

main90179-06299

9020114099

main90201-14099

9043014235

main90430-14235

9162160614

main91621-60614

91621J0612

main91621-J0612

9164180616

main91641-80616

39 parts on this diagram · 4 diagrams in section
