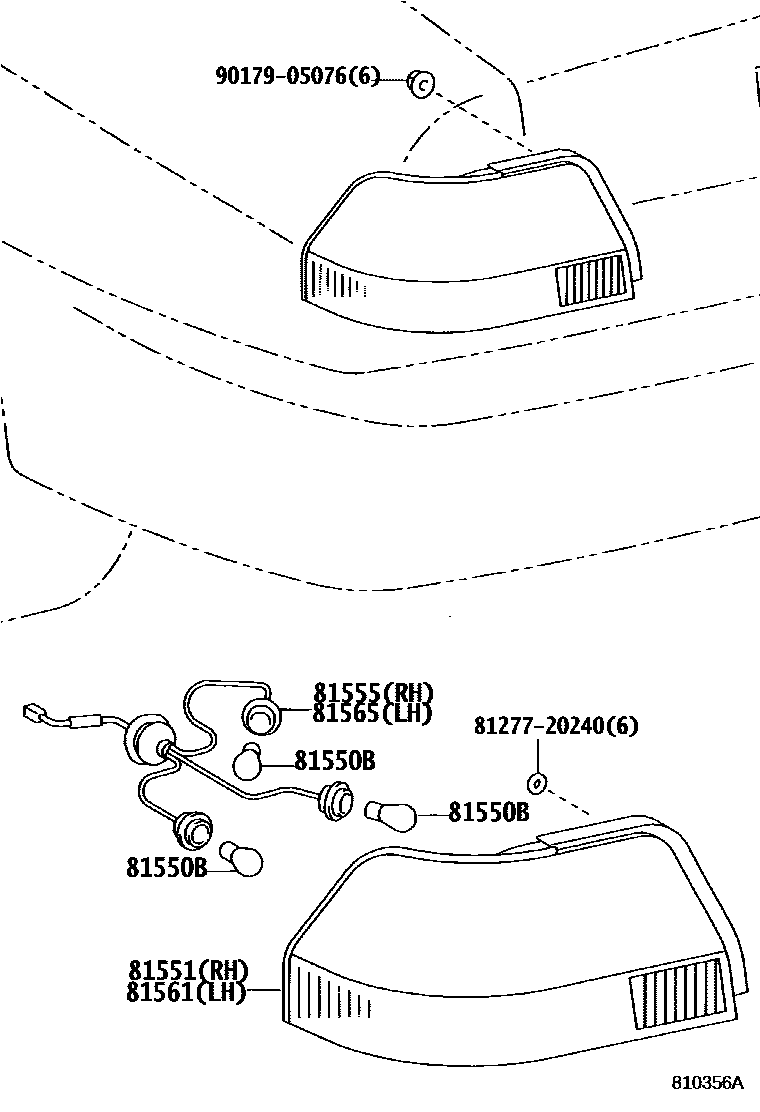

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043iAE11#,CE11#,EE111199704-200008

main90981-13044iAE11#,CE11#,EE111199704-200008

main99132-11210iAE11#,CE11#,EE111199505-199704

main99132-21210iAE11#,CE11#,EE111199505-199704

81551LENS, REAR COMBINATION LAMP, RH

main81551-1A660iAE11#,CE11#,EE111199505-199605

sub81551-1A661

main81551-1A661iAE11#,CE11#,EE111199605-199704

main81551-1E080iAE11#,CE11#,EE111199704-199904

sub81551-1E180

main81551-1E180iAE11#,CE11#,EE111199904-200008

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-1A660iAE11#,CE11#,EE111199505-199704

main81555-1E080iAE11#,CE11#,EE111199704-200008

81561LENS, REAR COMBINATION LAMP, LH

main81561-1A660iAE11#,CE11#,EE111199505-199605

sub81561-1A661

main81561-1A661iAE11#,CE11#,EE111199605-199704

main81561-1E040iAE11#,CE11#,EE111199704-199904

sub81561-1E140

main81561-1E140iAE11#,CE11#,EE111199904-200008

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-1A660iAE11#,CE11#,EE111199505-199704

main81555-1E080iAE11#,CE11#,EE111199704-200008

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240

9017905076

main90179-05076

7 parts on this diagram · 3 diagrams in section
