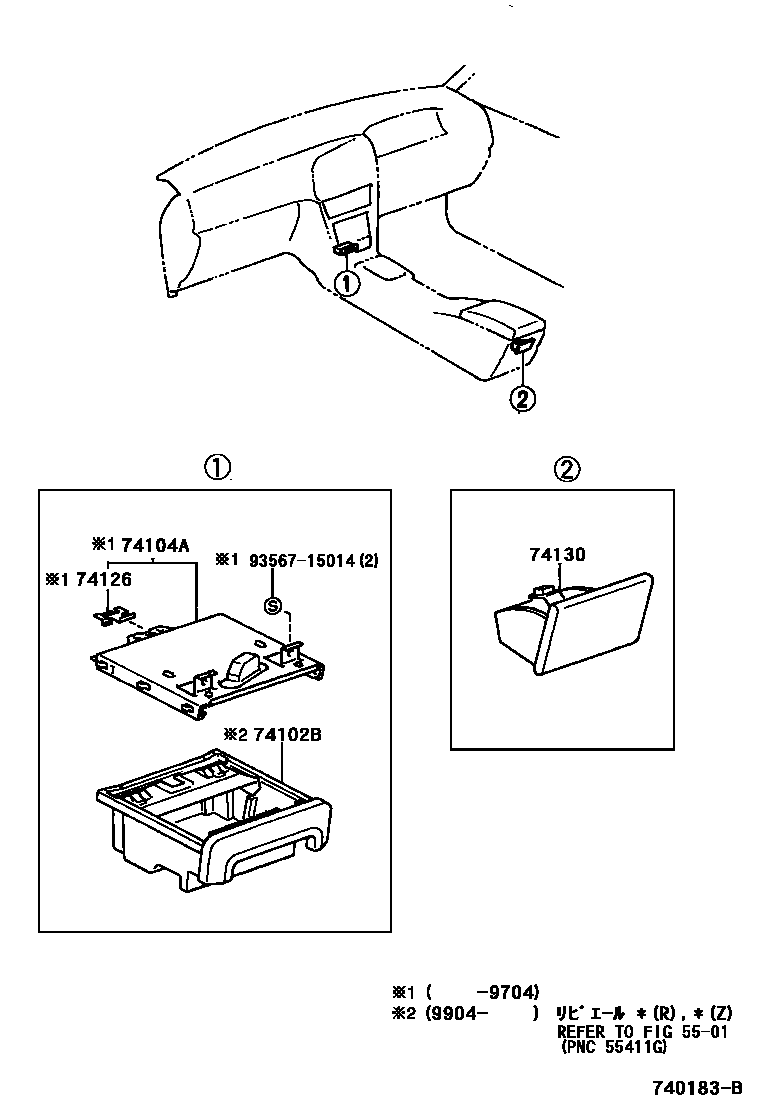

ASH RECEPTACLE

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12220iAE11#,CE11#,EE111199505-199704

main74102-12260-B0iAE110,114,CE11#,EE111..DX,LX199704-199804

SHADOW GRAY,TRIM1#

main74102-12260-B0iAE110,114,CE11#,EE111..DX,LX199704-199804

SHADOW GRAY,TRIM11

main74102-12260-B1iAE110,114,CE11#,EE111..SESAL,XESAL199704-199804

DK.CHARCOAL,TRIM14

main74102-12260-B1iAE110,114,CE11#,EE111199804-200008

DK.CHARCOAL,TRIM1#

main74102-12270-E0iAE110,114,CE11#..SESAL199704-199804

main74102-12270-E1iAE110,114,CE11#..SESAL199804-200008

main74102-12280-B1iAE111199704-200008

SILVER,TRIM1#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-12230iAE11#,CE11#,EE111199505-199704

74126SUPPORT, FRONT ASH RECEPTACLE RET, NO.3

main74126-32010iAE11#,CE11#,EE111199505-199704

74130RECEPTACLE ASSY, REAR ASH

main74109-12020-B2iAE110,114,CE11#,EE111..DX,LX199704-199804

MD.GRAY,TRIM1#

main74109-12020-B2iAE110,114,CE11#,EE111..SESAL,XESAL199704-199804

MD.GRAY,TRIM11

main74109-12020-B3iAE110,114,CE11#,EE111..SESAL,XESAL199704-199804

MD.CHARCOAL,TRIM14

main74109-12020-B3iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main74109-12020-E0iAE110,114,CE11#,EE111..SESAL,XESAL199505-199704

OAK,TRIM4#

main74109-12020-P0iAE11#,CE11#,EE111199505-200008

SHADOW GRAY,TRIM1#

9356715014

main93567-15014

6 parts on this diagram · 1 diagram in section
