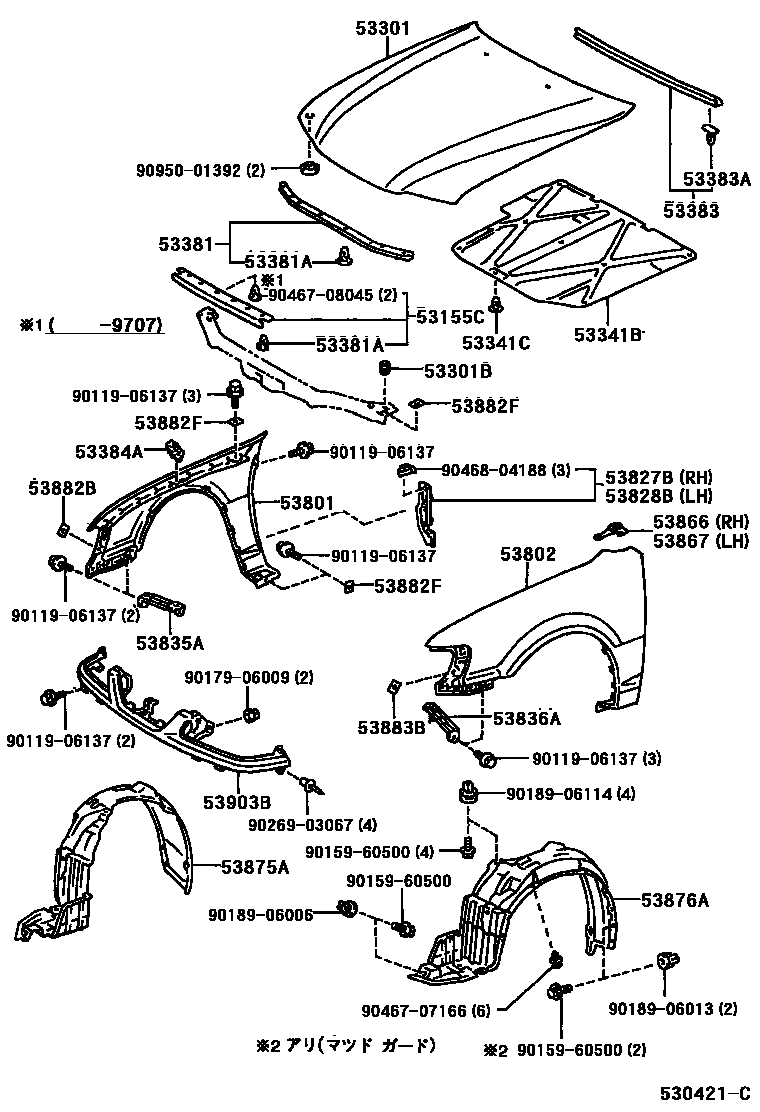

HOOD & FRONT FENDER
53155CSEAL, RADIATOR GRILLE, NO.1
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53384ABUMPER, FENDER TO HOOD
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827BPROTECTOR, FRONT FENDER SIDE PANEL
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53882BSEAL, FRONT FENDER, RH
53882FSEAL, FRONT FENDER
53883BSEAL, FRONT FENDER, LH
53903BPANEL SUB-ASSY, FRONT END
9011906137
main90119-06137
9015960500
main90159-60500
9017906009
main90179-06009
9018906006
main90189-06006
9018906013
main90189-06013
9018906114
main90189-06114
9026903067
main90269-03067
9046707166
main90467-07166
9046708045
main90467-08045
9046804188
main90468-04188
9095001392
main90950-01392
35 parts on this diagram · 1 diagram in section
