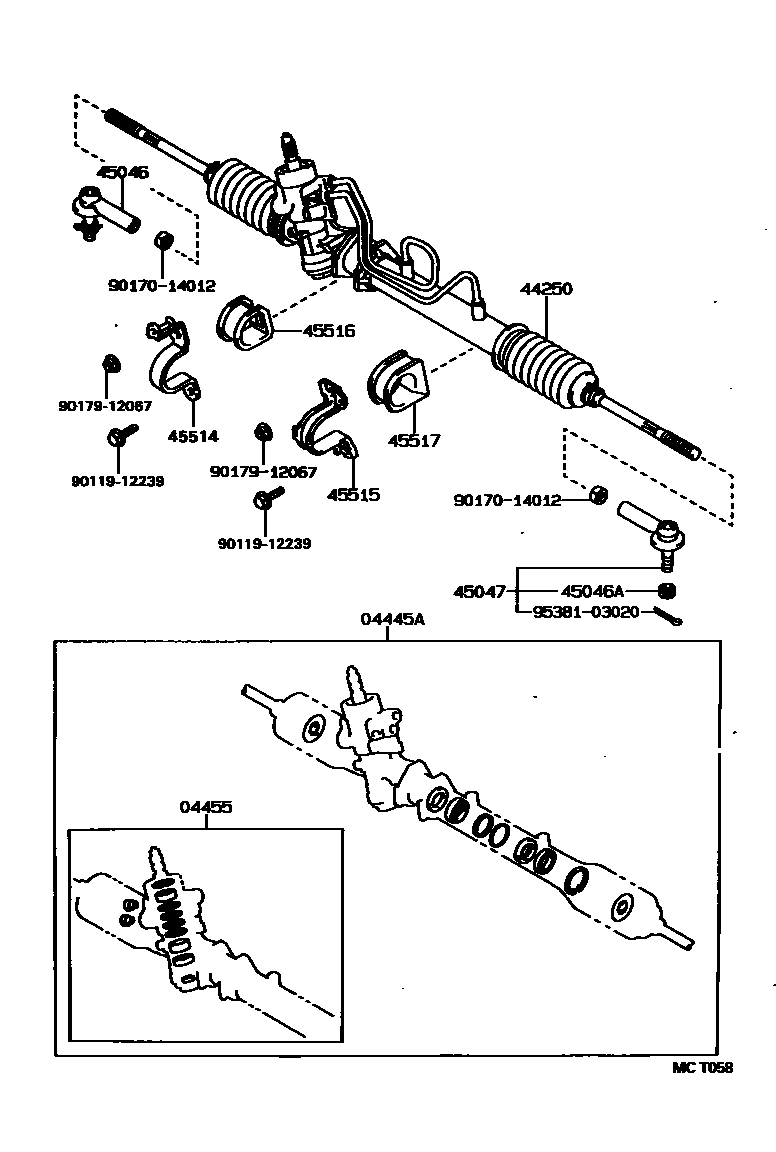

FRONT STEERING GEAR & LINK

0001 1TOYOTA 0002 1TOYOTA 0003 1KOYO 0004 1KOYO 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12150iAE110,114; CE113;CE110,114,116,EE111..3FC,4F,5F199704-200008

TOYOTA GEAR ASSY

main04445-12160iAE110,114; AE111199704-200008

KOYO GEAR ASSY; KOYO GEAR BOX

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12090iAE110,114; CE110,114;EE111..3FC,4F199704-200008

TOYOTA GEAR ASSY; TOYOTA GEAR BOX

main04455-12210iAE110,114; AE111199704-200008

KOYO GEAR ASSY; KOYO GEAR BOX

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12530iAE110,114199704-200008

KOYO GEAR BOX

main44250-12550iAE111199704-200008

main44250-12570iAE110,114..4FC..(LX,SESAL)199505-199605

main44250-12620iAE11#; CE11#,EE111..3FC,4F,5F199505-199704

TOYOTA GEAR BOX

main44250-12630iCE110..4FC199704-199804

45046END SUB-ASSY, TIE ROD, RH

main45046-29305iAE11#,CE11#,EE111199704-200008

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAE11#,CE11#,EE111199704-200008

45047END SUB-ASSY, TIE ROD, LH

main45046-29305iAE11#,CE11#,EE111199704-200008

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12090iAE110..DX;EE111..(3FC,4F)..DX; EE111..5F;AE110,114..LX,SESAL,XESAL;EE111..(3FC,4F)..(LX,XESAL)199704-200008

main45514-12110iCE11#;AE110,EE111..DX199506-199704

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12170iAE11#,CE11#,EE111199505-199704

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12060iAE11#,CE11#,EE111199505-199704

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12111iAE11#,CE11#,EE111199505-199704

9011912239

main90119-12239

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

14 parts on this diagram · 5 diagrams in section
