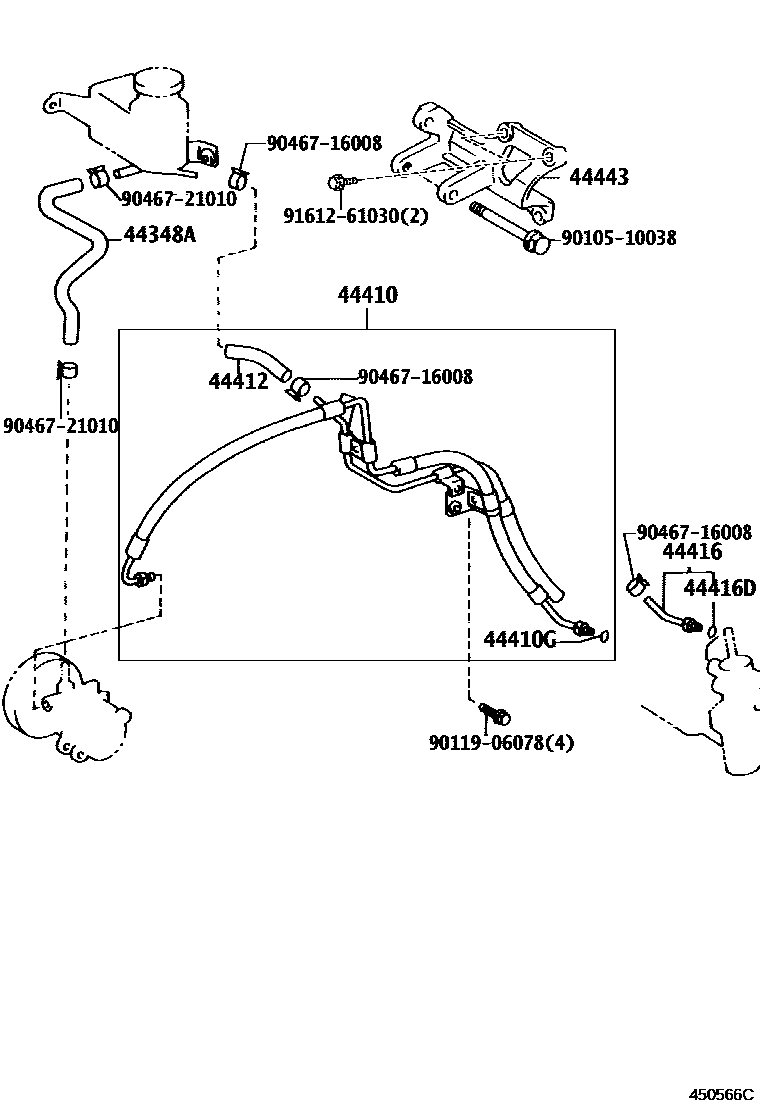

POWER STEERING TUBE

0001 1 0002 1TOYOTA 0003 1KOYO 0004 1 0005 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-12060iAE111199704-200008

main44348-12070iEE111199505-199704

44410TUBE ASSY, PRESSURE FEED

main44040-12072iCE110199505-199512

main44040-12073iCE110,113199704-200008

main44040-12092iCE114199505-199512

main44040-12093iCE114199512-199704

main44040-12150iAE111199704-200008

main44040-12190iEE111199505-199507

main44040-12191iEE111199507-199704

main44410-12371iAE110199704-200008

KOYO GEAR ASSY

main44410-12391iAE110; AE110..4FC..(LX,SESAL,XESAL)199704-200008

main44410-12451iAE114199704-200008

KOYO GEAR ASSY

main44410-12481iAE114; AE114..4FC..SESAL199704-199812

main44410-12500iAE114; AE114..4FC..SESAL199812-200008

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009iAE11#199505-199704

44412HOSE, RETURN

main44412-12200iCE11#,EE111199505-199704

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44406-12171iAE110,114199704-200008

KOYO GEAR ASSY

main44406-12181iAE110,114; AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL)199704-200008

main44416-12210iCE11#,EE111199704-200008

main44416-12220iAE111199704-200008

44416DRING, O(FOR RETURN TUBE)

main90301-07009iAE11#199505-199704

44443BRACKET, PUMP

main44443-10030iEE111199505-199704

main44443-12090iAE111199704-200008

main44443-12100iAE110,114199704-200008

9010510038

main90105-10038

9011906078

main90119-06078

9046716008

main90467-16008

9046721010

main90467-21010

9161261030

main91612-61030

12 parts on this diagram · 5 diagrams in section
