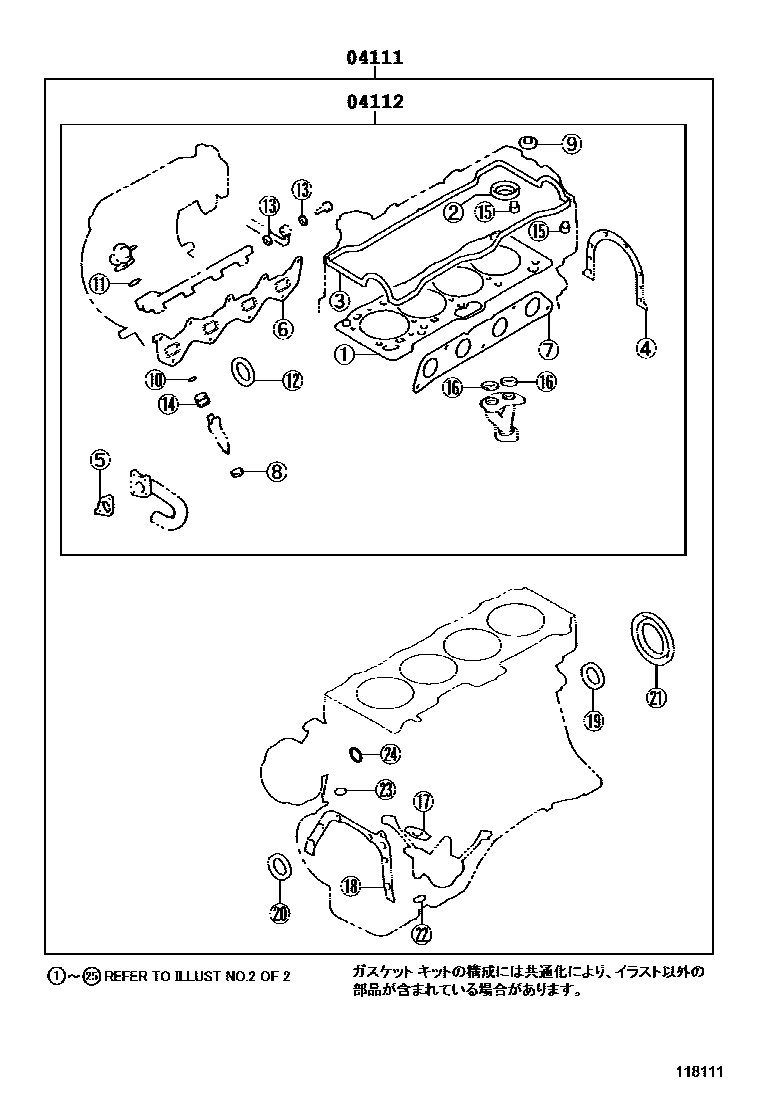

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-11092i4EFE..EE111199505-199508

sub04111-11140

main04111-11141i4EFE..EE111199508-200008

main04111-16221i5AFE..AE110199505-200008

main04111-16231i4AFE..AE111,114199505-200008

main04111-16330i4AGE..AE111199704-200008

main04111-64290i2C..CE11#199505-199511

sub04111-64291

main04111-64291i2C..CE11#199511-199704

sub04111-64292

main04111-64292i2C..CE11#199704-199708

sub04111-64293

sub11115-64140

main04111-64293i2C..CE11#199708-199804

sub04111-64294

main04111-64380i3CE..CE11#199804-199805

sub04111-64381

main04111-64381i3CE..CE11#199805-199811

sub04111-64382

main04111-64382i3CE..CE11#199811-199906

sub04111-64383

main04111-64383i3CE..CE11#199906-200008

04112GASKET KIT, ENGINE VALVE GRIND

main04112-11081i4EFE..EE111199505-199508

sub04112-11120

main04112-11121i4EFE..EE111199508-200008

main04112-16220i5AFE..AE110199505-200008

main04112-16230i4AFE..AE114199505-200008

main04112-16330i4AGE..AE111199704-200008

main04112-64220i2C..CE11#199505-199511

sub04112-64221

main04112-64221i2C..CE11#199511-199704

sub04112-64222

main04112-64222i2C..CE11#199704-199708

sub04112-64223

sub11115-64140

main04112-64223i2C..CE11#199708-199804

sub04112-64224

main04112-64290i3CE..CE11#199804-199906

sub04112-64291

main04112-64291i3CE..CE11#199906-200008

2 parts on this diagram · 14 diagrams in section
