HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1���-�� �-� ����-� 0002 1������� �-� ����-� 0003 1����� �-� ����-�,��(�-�����) 0004 1���-�� �-� ����-� 0005 1������� �-� ����-� 0006 1���-�� �-� ����-�,��(�-�����)

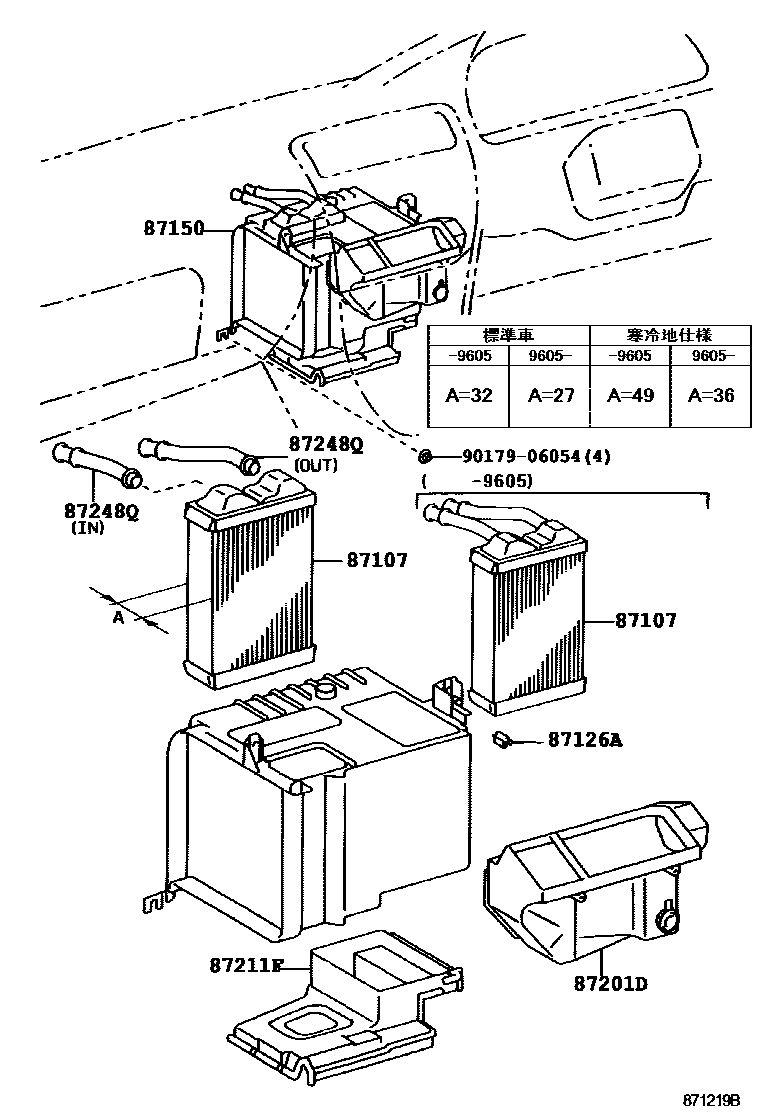

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-12380iAE10#,EE10#199106-199605

main87107-12430iCE10#199106-199605

main87107-12470iAE10#,CE10#,EE10#199106-199605

main87107-12500iAE10#,CE10#,EE10#199605

main87107-12510iAE10#,CE10#,EE10#199605

87126ACLAMP, HEATER CONTROL

main87126-12050×2iAE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE199106-199205

87150RADIATOR ASSY, HEATER

main87150-12570iAE100,104..SEL199205-199503

main87150-12571iAE10#,EE10#..DX,DXJ,GL,L,LT,LX,SJ,XE; AE100,104..SEL199503-199505

main87150-12580iCE10#..CTD,DX,GL,L,LX,XE199106-199503

main87150-12581iCE10#..CTD,DX,GL,L,LX,XE; CE100,104..SEL199503-199505

main87150-12600iAE100,104,CE100,104..SEL199205-199503

main87150-12601iAE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ,XE; AE100,104,CE100,104..SEL199503-199505

main87150-12620iAE10#..SJ,XE199205-199305

main87150-12621iAE10#..G,GT,SEG,SEL; AE10#..LT,SJ,XE199503-199505

main87150-12630iCE100,104..XE199205-199503

main87150-12631iCE100,104..SEL; CE100,104..XE199503-199505

main87150-12650iAE10#,CE100,104..LT,SJ,XE199305-199503

main87150-12651iAE10#,CE100,104..G,GT,SEG,SEL; AE10#,CE100,104..LT,SJ,XE199503-199505

main87150-12760iAE10#..G199505-199605

main87150-12761iAE100,101,104,CE100,101..BZT,G199605-200008

main87150-12770iCE100..G199505-199605

main87150-12780iAE10#,CE100..G199505-199605

main87150-12781iAE100,101,104,CE100,101..BZT,G199605-200008

main87150-12860iAE10#,EE10#..DX,DXJ,GL,L,LT199505-199605

main87150-12861iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT199605

main87150-12870iCE10#..CTD,DX,GL,L,LT199505-199605

main87150-12880iAE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT199505-199605

main87150-12881iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT199605

main87150-1A030iAE10#199505-199605

main87150-1A031iAE100,101,104,CE100,101199605-199906

main87150-1A032iAE100,101,104,CE101199906-200008

main87150-1A040iCE100199505-199605

main87150-1A050iAE10#,CE100199505-199605

main87150-1A051iAE100,101,104,CE100,101199605-199906

main87150-1A052iAE100,101,104,CE101199906-200008

87201DDUCT SUB-ASSY, AIR

main87201-12300iAE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ,XE199106

main87201-12310iAE100,104,CE100,104..SEL199205-199505

main87201-12330iAE10#,CE100,104..G,GT,SEG,SEL199106-199205

main87201-12360iAE10#,CE100,104..G,GT,SEG,SEL199106-199505

main87201-12480iAE100,101,104,CE100,101..BZT,G199505-200008

main87201-12490iAE100,101,104,CE100,101..BZT,G199505-200008

main87201-12510iAE100,101,104,CE100,101199505-200008

main87201-12520iAE100,101,104,CE100,101199505-200008

87211FDUCT, AIR

main87211-12160iAE10#,CE10#,EE10#199106-199505

main87211-12170iAE10#,CE10#,EE10#199106

main87211-12200iAE10#..G; CE100;AE10#..LT199505-199605

main87211-12210iAE100,101,104,CE100,101199505-200008

main87211-13010iAE10#,CE10#,EE10#199811

main87211-13020iAE100,101,104,CE101199901-200008

87248QPIPE, FRONT HEATER RADIATOR WATER

main87156-12020iAE10#,CE10#,EE10#199605

IN

main87156-12030iAE10#,CE10#,EE10#199605

OUT

main87156-12040iAE10#,CE10#,EE10#199605

main87156-12050iAE10#,CE10#,EE10#199605

9017906054

main90179-06054

7 parts on this diagram · 6 diagrams in section
