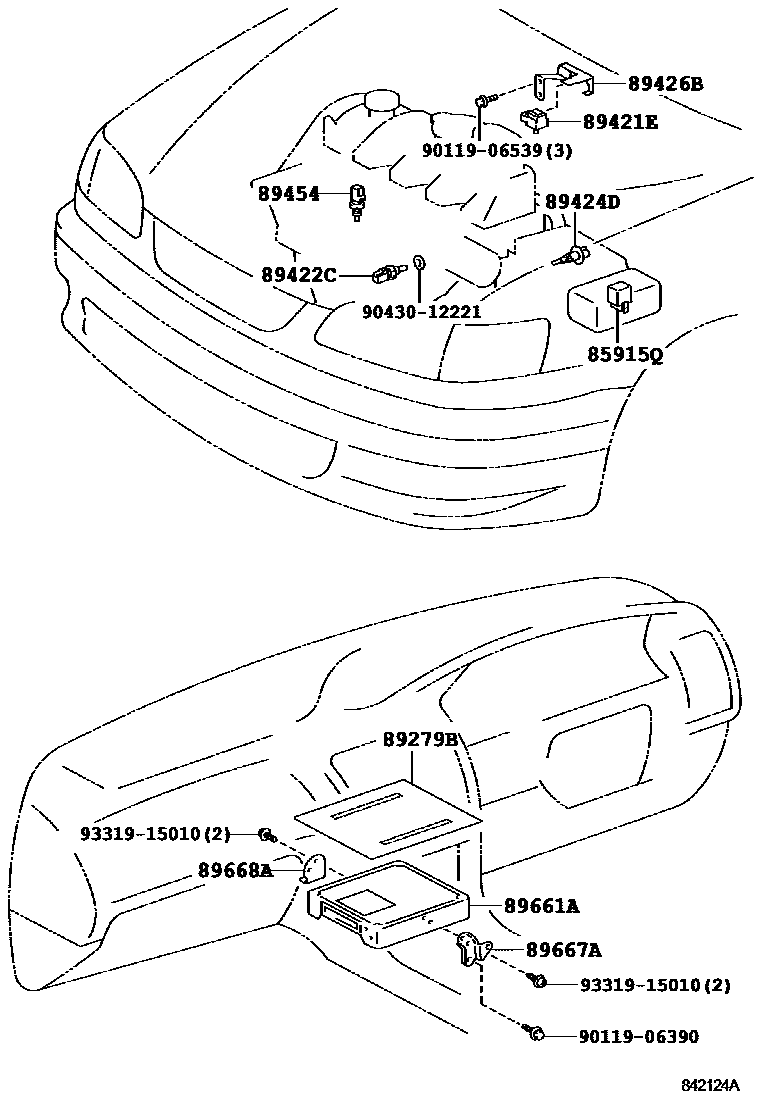

ELECTRONIC CONTROLED DIESEL (ECD)

85915QRELAY, COMPUTER (FOR DIESEL)

main85915-26010iCE10#199804

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-12110iCE10#199804

89421ESENSOR, VACUUM

main89420-12110iCE10#199804

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iCE10#199804

89424DSENSOR, INLET AIR TEMPERATURE

main89424-12010iCE10#199804

89426BBRACKET, VACUUM SENSOR

main89426-12150iCE10#199804

89454SENSOR, FUEL TEMPERATURE

main89454-60010iCE10#199804

89661ACOMPUTER, ENGINE CONTROL

main89661-1E220iCE101,102,107..5F199804

main89661-1E230iCE101,102,107..4FC199804

main89661-1E240iCE105199804

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12120iCE10#199804

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12050iCE10#199804

9011906390

main90119-06390

9011906539

main90119-06539

9043012221

main90430-12221

9331915010

main93319-15010

14 parts on this diagram · 1 diagram in section
