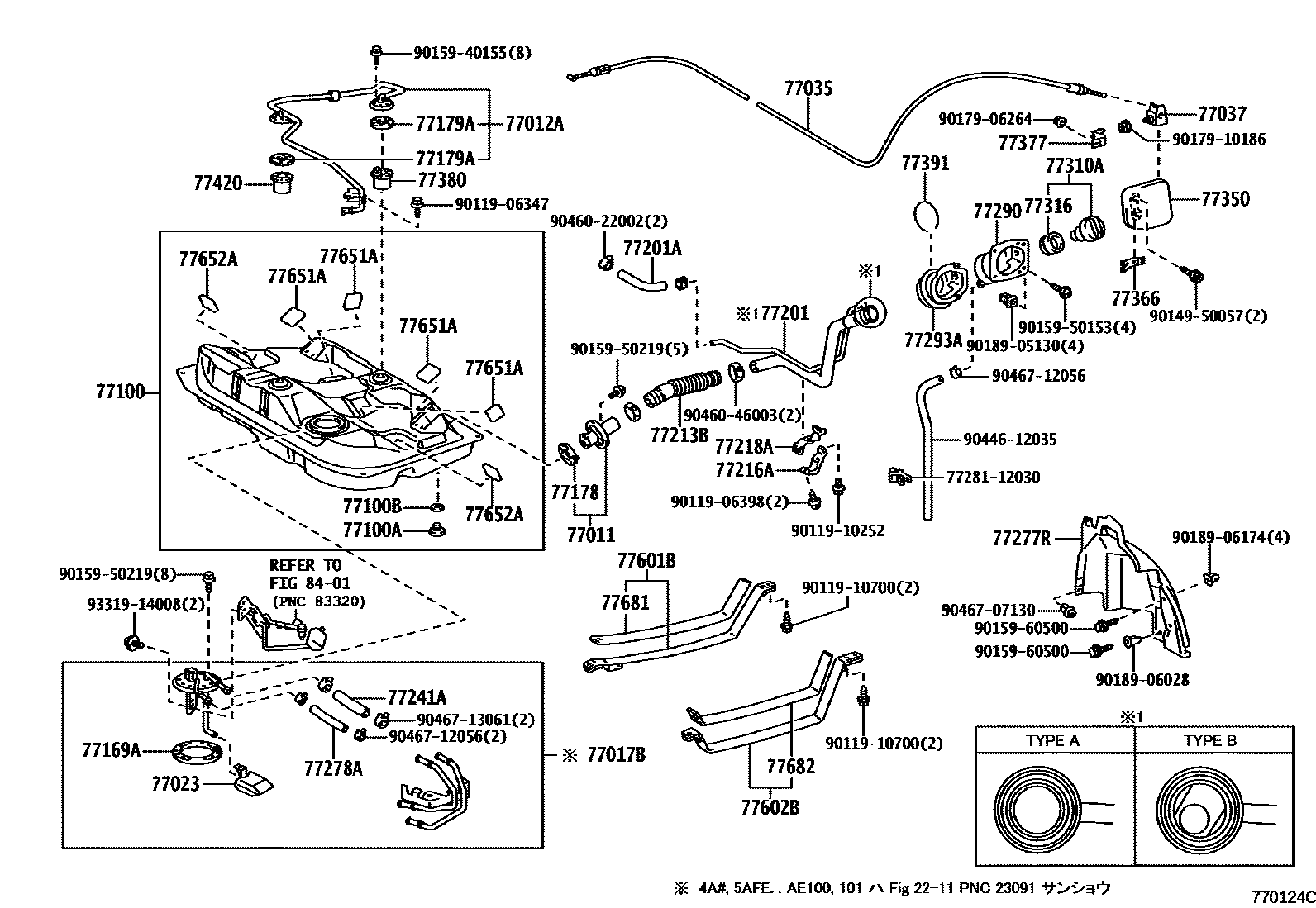

FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1�������� 0005 1�������� 0006 1�������� 0008 1�������� 0009 1�������� 0010 1���������� 0012 1���������� 0013 1���������� 0014 1���������� 0015 1���������� 0016 1���������� 0018 1���������� 0019 1���������� 0020 1���������� 0021 1���������� 0022 1���������� 0023 1����������

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12090iAE100,101,CE100,101,102,106,107,108,EE10#199106-200206

main77011-12130iAE104199109-200206

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12070iAE100,101,CE100,106,108,EE10#199106-199508

sub77012-12080

main77012-12080iAE100,101,CE100,106,108,EE10#199106-199505

main77012-12090iAE104199109-199605

sub77012-12100

main77012-12100iAE104199109-199605

main77012-12120iCE104199109-199505

sub77012-12100

main77012-12140iAE100,CE100199505-200206

main77012-12150iAE104199605-200008

main77012-13030iAE109,CE105,109199109-200206

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-12480iCE104199109-199505

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-12450iEE106,107,108199109-199401

main77017-12470iCE100,106,108..CTD,DX,GL,L,LX,SEL,XE199106-199508

main77017-12500iAE104,CE104199109-200008

main77017-12600iCE100199505-199508

main77017-13020iCE105,109199109

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-10010iEE106,107,108199109-199401

main77023-32030iAE104199109-200008

main77023-32030iCE104..LX199110-199505

NIFUKO

main77023-32040iCE104199106-199110

main77023-32040iCE104..LX199110-199505

KYOSAN

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12190iAE10#,CE100,104,EE101..3DS,4DS199106-199505

sub77035-12191

main77035-13020iAE100,CE106,108,109,EE102,103,104,106,107,108..(V,WG)..(DX,G,GL,L,LT)199109-199505

main77035-13050iAE10#,CE10#,EE10#..BZT,DX,G,GL,L,LT199505

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iAE10#,CE10#,EE10#..BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE199106

77100TANK ASSY, FUEL

main77001-12660iAE100,101,EE101199106-199402

sub77001-12931

main77001-12930iAE104199109-199307

sub77001-12933

main77001-12931iAE100,101,EE101199106-199402

main77001-12931iAE100,101,CE100,101,102,106,107,108,EE10#..CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE199402-200206

main77001-12933iAE104,CE104199109-199605

main77001-12935iAE101199605-200008

main77001-12936iAE104199605-200008

main77001-19615iCE109199109-199704

sub77001-19625

main77001-19625iAE109199605-200206

main77100-13440iEE106..4F199109-199401

77100APLUG(FOR FUEL TANK)

main90341-20004iAE104199106-199401

main90341-20004iCE109199307-199308

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE104199106-199401

main90430-20007iCE109199307-199308

main90430-42255iEE106..4F199109-199401

77169AGASKET, FUEL SUCTION TUBE SET

main77169-12020iCE105,109199109

main77169-12030iCE100,101,102,106,107,108,EE106,107,108199106

main77169-14010iAE104,CE104199109-200008

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAE10#,CE10#,EE10#199106-200206

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iAE100,101,109,CE100,101,102,105,106,107,108,109,EE10#199106-200206

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12430iAE100,101,CE100,101199505-200008

main77201-12430iAE100,101,CE100,EE101199106-199505

main77201-12460iAE104,CE104199109-199505

sub77201-12540

main77201-12500iAE100..LX,SEL199106-199505

main77201-12540iAE104199505-200008

main77201-13150iAE109,CE105,109199109

main77201-13160iCE102,106,107,108,EE102,103,104,106,107,108199109

main77201-13170iEE104,108..5F199109-199705

main77201-13180iEE106..4F..DX199109-199401

main77201-13190iEE106..4F..CTD199109-199401

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77269-13030iEE10#200008

main95311-13022iAE100,101,104,CE100,101,104,EE101199106-200008

main95311-13028iCE102,106,107,108,EE102,103,104,106,107,108199109-200008

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12150iAE104,CE104199109-200008

main77213-12160iAE100,101,CE100,EE101199106-199505

main77213-12170iAE100,101,CE100,101199505-200008

sub77213-12220

main77213-13070iCE102,107199109-200008

main77213-13080iAE109,CE105,109199109

main77213-13090iEE10#200008

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12070iAE100,101,CE100,101,EE101199106-200008

main77216-12080iAE104,CE104199109-200008

main77216-13030iCE102,106,107,108,EE102,103,104,106,107,108199109

main77216-13050iAE109,CE105,109199109

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-12030iAE100,101,CE100,101,EE101199106-200008

main77218-12040iAE104,CE104199109-200008

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95333-06020iEE106,107,108199109-199308

sub95337-06020

main95333-08020iCE100,101,102,106,107,108199106

sub95337-08020

main95333-08020iCE104199109-199505

sub95337-08020

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12130iAE10#,CE100,104,EE101..3DS,4DS199106-199505

main77277-13040iCE106,108,109,EE106,107,108199109-199111

sub77277-13041

main77277-13041iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199111

main77277-13050iAE100,101,104,CE100,101..WG199109-200008

77278AHOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)

main77259-12210iCE104199109-199505

main95333-04011iEE106,107,108199109-199308

sub95333-04020

main95333-04020iEE106,107,108199308-199401

main95333-06020iCE100,101,102,106,107,108199106

sub95337-06020

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-12040iCE106,107,EE102,106..CTD,DXJ199109

main77291-12090iAE10#,CE10#,EE10#..BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE199106

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-12050iCE106,107,EE102,106..CTD,DXJ199109

main77293-12060iAE10#,CE10#,EE10#..BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE199106

77310ACAP ASSY, FUEL TANK

main77310-12150iCE10#199803

main77310-16011iAE10#,EE10#199106-199803

sub77310-12140

main77310-32011iCE10#199106-199803

main77310-48010iAE10#,EE10#199803

77316GASKET, FUEL TANK CAP

main77316-16010iAE10#,CE10#,EE10#199106

77350LID ASSY, FUEL FILLER OPENING

main77350-12280iAE10#,CE100,104,EE101..4DS199106-199505

main77350-12330iAE101..3DS199205-199505

main77350-13040iAE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..(V,WG)..(BZT,DX,G,GL,L,LT)199109

main77350-13050iCE106,107,EE102,106..CTD,DXJ199109

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12040iAE10#,CE10#,EE10#199106

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iAE10#,CE10#,EE10#..BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE199106

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iAE100,101,109,CE100,101,102,105,106,107,108,109,EE10#199106-200206

77391RING, FUEL INLET BOX

main77391-14020iAE10#,CE10#,EE10#199106

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iAE100,101,109,CE100,101,102,105,106,107,108,109,EE10#199106-200206

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-12180iAE100,101,CE100,EE101199106-199705

main77601-12190iAE104,CE104199109-200008

main77601-12210iAE100,101,CE100,101199705-200008

main77601-13040iCE102,106,107,108,EE102,103,104,106,107,108199109

main77601-13050iEE106..4F199109-199401

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-12130iAE100,101,CE100,101,EE101199106-200008

main77602-12140iAE104,CE104199109-200008

main77602-13020iCE102,106,107,108,EE102,103,104,106,107,108199109

77651ACUSHION, FUEL TANK, NO.1

main77651-13040iAE109,CE105,109199109-200206

main77651-20090iCE100..4DS;AE100,101,CE106,108,EE10#..CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE199106-199705

60X60

main77651-20090iAE101,CE100199505-199705

60 X 60

main77651-20090iAE100,101,104,CE100,101,102,106,107,108,EE10#199109-200206

main77652-12100iCE100..DX,LX199106-199109

main77652-12100iAE10#,EE101;CE100..SEL,XE199106-199705

main77652-12100iCE100199505-199705

60 X 100

main77652-12100iAE101199605-199705

100 X 60

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iAE104199106-200206

main77652-13010iAE109,CE105,109199109-200206

77681SEAT, FUEL TANK BAND, RH

main77681-12030iAE10#,CE100,104,106,108,EE10#199106-199305

sub77681-32060

main77681-32060iAE104,CE104199305-199409

main77682-12030iAE100,101,CE100,EE101199305-199409

sub77681-32060

77682SEAT, FUEL TANK BAND, LH

main77681-12030iAE10#,CE100,104,106,108,EE10#199203-199305

sub77681-32060

main77681-32060iAE100,101,104,CE100,101,102,104,106,107,108,EE10#199305-199409

main77681-32070iAE100,101,CE100,106,108,EE10#199305-199409

sub77681-32060

main77682-12020iAE10#,CE100,104,106,108,EE10#199106-199203

sub77681-32060

8401

7728112030BRACKET, FUEL MAIN TUBE, NO.1

main77281-12030

9011906347

main90119-06347

9011906398

main90119-06398

9011910252

main90119-10252

9011910700

main90119-10700

9014950057

main90149-50057

9015940155

main90159-40155

9015950153

main90159-50153

9015950219

main90159-50219

9015960500

main90159-60500

9017906264

main90179-06264

9017910186

main90179-10186

9018905130

main90189-05130

9018906028

main90189-06028

9018906174

main90189-06174

9044612035

main90446-12035

9046022002

main90460-22002

9046046003

main90460-46003

9046707130

main90467-07130

9046712056

main90467-12056

9046713061

main90467-13061

9331914008

main93319-14008

60 parts on this diagram · 19 diagrams in section
