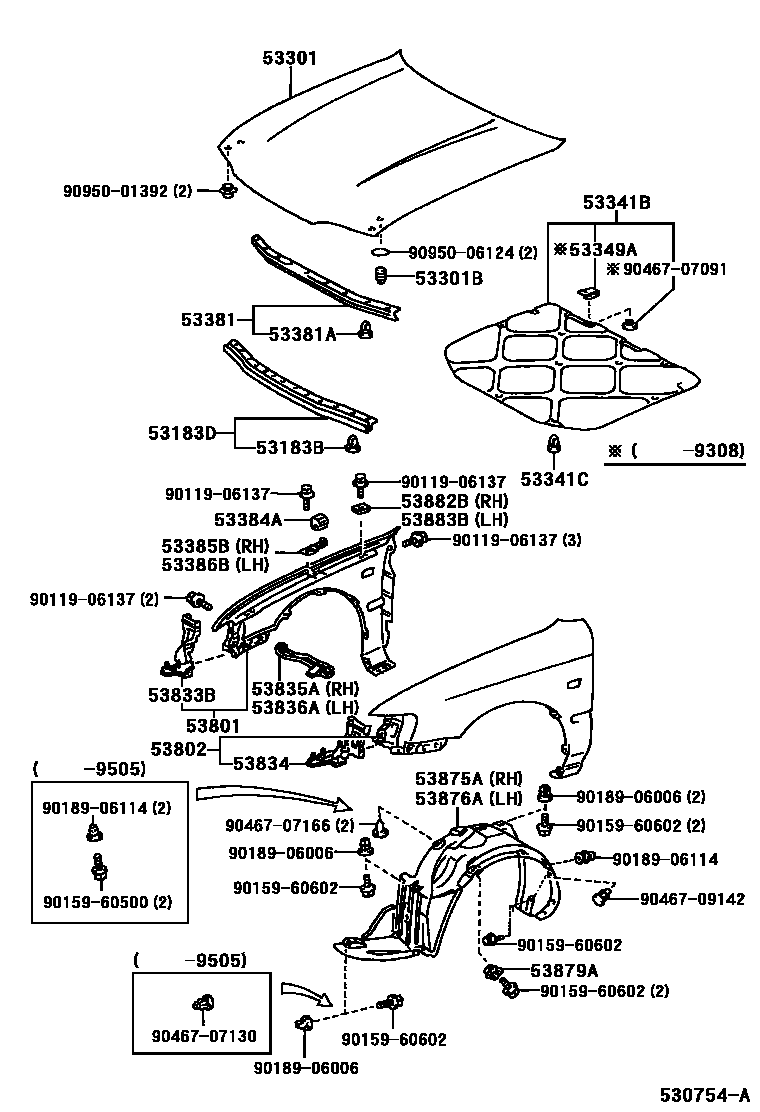

HOOD & FRONT FENDER

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08011×12iAE10#,CE10#,EE10#199106-199705

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-12090iAE10#,CE10#,EE10#199106-199205

main53183-12180iAE10#,CE10#,EE10#199205-199705

main53183-13030×2iAE100,101,104,CE100,101199705-200008

53301HOOD SUB-ASSY

main53301-12700iAE10#,CE10#,EE10#199106

53301BCUSHION, HOOD BUMPER

main90541-15019×2iAE10#,CE10#,EE10#199106

53341BINSULATOR, HOOD

main53341-12060iCE10#199106-199705

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×10iAE101,CE10#199908

main90467-09050×10iCE10#199106-199705

53349ARETAINER, HOOD INSULATOR

main53349-50010iCE10#199106-199308

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12160iAE10#,CE10#,EE10#199106

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iAE10#,CE10#,EE10#199106

53384ABUMPER, FENDER TO HOOD

main53384-12080×2iAE10#,CE10#,EE10#199106

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53386-20020iAE10#,CE10#,EE10#199106

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53385-20020iAE10#,CE10#,EE10#199106

53801FENDER SUB-ASSY, FRONT RH

main53801-1E700iAE10#,CE10#,EE10#199106

main53801-1E710iAE10#,CE10#,EE10#199106-199705

main53801-1E730iAE101..3DS..GT199205-199505

main53801-1E860iAE101..3DS..GT199205-199505

53802FENDER SUB-ASSY, FRONT LH

main53802-1E580iAE10#,CE10#,EE10#199106

main53802-1E590iAE109,CE102,105,106,107,108,109,EE10#199705

main53802-1E610iAE101..3DS..GT199205-199505

main53802-1E740iAE101..3DS..GT199205-199505

53833BPANEL, FRONT FENDER SIDE, RH

main53083-12050iAE10#,CE10#,EE10#199106

53834PANEL, FRONT FENDER SIDE, LOWER LH

main53084-12050iAE10#,CE10#,EE10#199106

53835ABRACE, FRONT FENDER TO APRON, RH

main53803-12020iAE10#,CE10#,EE10#199106

53836ABRACE, FRONT FENDER TO APRON, LH

main53804-12020iAE10#,CE10#,EE10#199106

53875ALINER, FRONT FENDER, RH

main53875-12210iAE10#,CE10#,EE10#199106

53876ALINER, FRONT FENDER, LH

main53876-12200iAE10#,CE10#,EE10#199106

53879ARETAINER, FRONT FENDER LINER

main53879-14010×4iAE10#,CE10#,EE10#199106

53882BSEAL, FRONT FENDER, RH

main53882-16030×4iAE10#,CE10#,EE10#199106

53883BSEAL, FRONT FENDER, LH

main53882-16030×4iAE10#,CE10#,EE10#199106

9011906137

main90119-06137

9015960500

main90159-60500

9015960602

main90159-60602

9018906006

main90189-06006

9018906114

main90189-06114

9046707091

main90467-07091

9046707130

main90467-07130

9046707166

main90467-07166

9046709142

main90467-09142

9095001392

main90950-01392

9095006124

main90950-06124

34 parts on this diagram · 1 diagram in section
