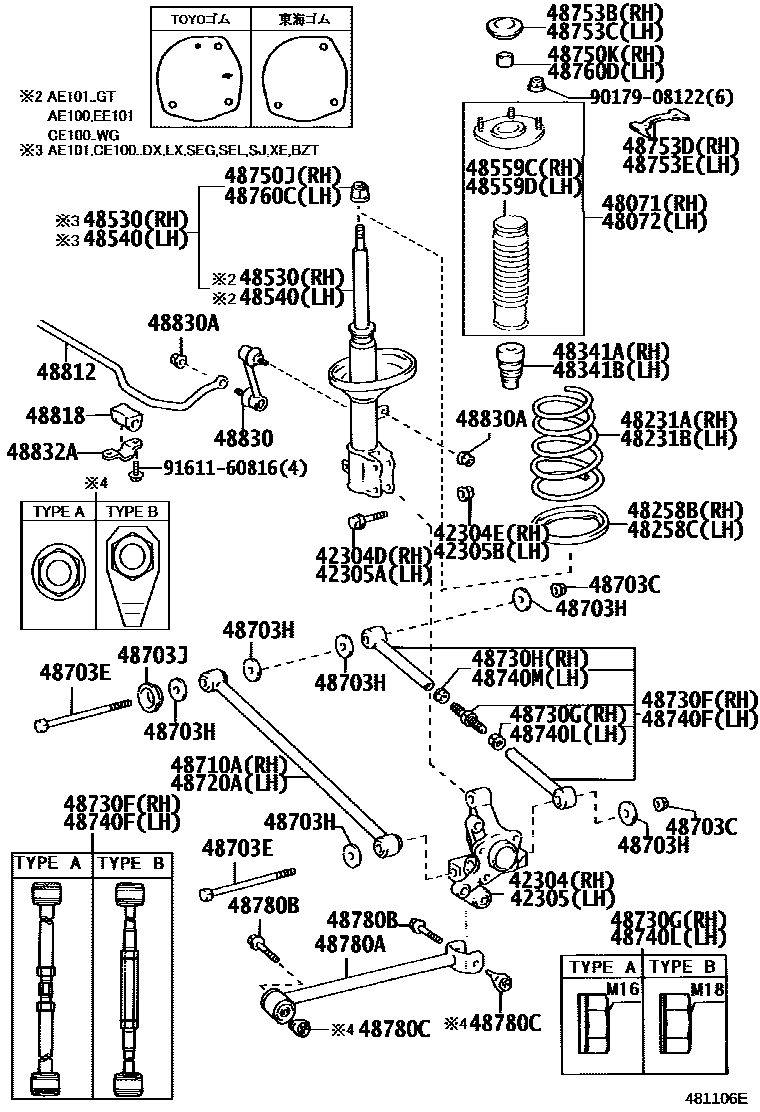

REAR SPRING & SHOCK ABSORBER

0001 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-12080iAE101..GT199106-199205

main42304-12090iAE100,CE100,101199605-200008

main42304-12100iAE101..GT199106-199205

main42304-12110iAE104,CE104199109-199505

main42304-12120iAE104,CE104199109-199505

main42304-12130iAE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE199106-199605

main42304-12140iAE101..GT199205-199505

main42304-12170iAE101..GT199205-199505

main42304-12220iAE104199505-199605

main42304-12230iAE104199505-199605

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-12102×2iAE100,101,CE100,101,EE101199106-200008

main90105-15001×2iAE104,CE104199109-200008

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-12025×2iAE100,101,CE100,101,EE101199106-200008

main90179-15001×2iAE104,CE104199109-200008

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-12080iAE101..GT199106-199205

main42305-12090iAE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE199106-199605

main42305-12100iAE101..GT199106-199205

main42305-12110iAE104,CE104199109-199505

main42305-12120iAE104,CE104199109-199505

main42305-12130iAE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE199106-199605

main42305-12140iAE101199605-200008

main42305-12170iAE101..GT199205-199505

main42305-12220iAE104199505-199605

main42305-12230iAE104199505-199605

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-12102×2iAE100,101,CE100,101,EE101199106-200008

main90105-15001×2iAE104,CE104199109-200008

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-12025×2iAE100,101,CE100,101,EE101199106-200008

main90179-15001×2iAE104,CE104199109-200008

48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH

main48071-12080iAE10#,CE100,104,EE101199106-199505

main48071-12130iAE100,CE100,101199505-200008

main48071-12140iAE101,104199505-200008

48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH

main48072-12080iAE10#,CE100,104,EE101199106-199505

main48072-12130iAE100,CE100,101199505-200008

main48072-12140iAE101,104199505-200008

48231ASPRING, COIL, REAR RH

main48231-1E090iAE101,CE100..SEG,SEL,SJ199106-199505

main48231-1E110iAE104,CE104199109-199505

main48231-1E170iAE101..3DS..GT199205-199505

main48231-1E250iAE100..4DS199106-199505

main48231-1E260iEE101199106-199505

main48231-1E330iAE101..GT199205-199505

main48231-1E580iCE100..DX,LX,XE199106-199505

main48231-1E600iAE101..GT199106-199205

main48231-1E700iAE100..WG199109-199202

main48231-1E820iAE100,CE100..WG199202-199705

main48231-1H190iAE104199505-199705

main48231-1H270iAE101199605-199705

main48231-1H330iAE101,CE100,101199705-200008

main48231-1H380iAE104199705-200008

48231BSPRING, COIL, REAR LH

main48231-1E090iAE101,CE100..SEG,SEL,SJ199106-199505

main48231-1E110iAE104,CE104199109-199505

main48231-1E170iAE101..3DS..GT199205-199505

main48231-1E250iAE100..4DS199106-199505

main48231-1E260iEE101199106-199505

main48231-1E330iAE101..GT199205-199505

main48231-1E580iCE100..DX,LX,XE199106-199505

main48231-1E600iAE101..GT199106-199205

main48231-1E700iAE100..WG199109-199202

main48231-1E820iAE100,CE100..WG199202-199705

main48231-1H190iAE104199505-199705

main48231-1H270iAE100199705-200008

main48231-1H330iAE101,CE100,101199705-200008

main48231-1H380iAE104199705-200008

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-12030iAE10#,CE100,104,EE101199106-199505

main48258-12040iAE100,101,104,CE100,101199505-200008

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-12030iAE10#,CE100,104,EE101199106-199505

main48258-12040iAE100,101,104,CE100,101199505-200008

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-12120iAE100,EE101199106-199505

main48341-12130iAE101,CE100..BZT,DX,GT,LX,SEG,SEL,SJ,XE199106-200008

main48341-12170iAE104,CE104199109-200008

main48341-12180iAE100,CE100,101199505-200008

main48341-13090iCE102,106,107,108,EE102,103,104,106,107,108199202

main48341-13100iEE106..4F199111-199401

main48341-13110iAE109,CE105,109199109

main48341-13120iCE106,108,EE106,107,108199109-199202

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-12120iAE100,EE101199106-199505

main48341-12130iAE101,CE100..BZT,DX,GT,LX,SEG,SEL,SJ,XE199106-200008

main48341-12170iAE104,CE104199109-200008

main48341-12180iAE100,CE100,101199505-200008

main48341-13090iCE102,106,107,108,EE102,103,104,106,107,108199202

main48341-13100iEE106..4F199111-199401

main48341-13110iAE109,CE105,109199109

main48341-13120iCE106,108,EE106,107,108199109-199202

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-12550iCE100..WG;AE100,EE101199106-199705

main48530-12710iAE101..GT199106-199205

main48530-12720iAE101..3DS..GT199205-199505

main48530-12760iAE104,CE104199109-199505

main48530-12780iAE101..GT199205-199505

main48530-19645iAE100,CE100,101199705-200008

main48530-19735iAE104199505-199705

main48530-19845iAE101199605-200008

main48530-80006iAE104199705-200008

main48530-80019iAE101,CE100..DX,LX,SEG,SEL,SJ,XE199106-199505

main48531-80072iEE106..4F199111-199401

main48531-80118iCE102,106,107,108,EE10#199704-200206

main48531-80136iAE109,CE105,109199109-200206

main48531-80181iCE106,108,EE102,103,104,106,107,108199109-199704

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80072iEE106..4F199111-199401

main48531-80118iCE102,106,107,108,EE10#199704-200206

main48531-80136iAE109,CE105,109199109-200206

main48531-80181iCE106,108,EE102,103,104,106,107,108199109-199704

main48540-12490iCE100..WG;AE100,EE101199106-199705

main48540-12650iAE101..GT199106-199205

main48540-12660iAE101..3DS..GT199205-199505

main48540-12700iAE104,CE104199109-199505

main48540-12710iAE101..GT199205-199505

main48540-19095iAE100,CE100,101199705-200008

main48540-19175iAE104199505-199705

main48540-19185iAE101199605-200008

main48540-19226iAE101,CE100..DX,LX,SEG,SEL,SJ,XE199106-199505

main48540-19235iAE104199705-200008

48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1

main48559-12070iAE10#,CE100,104,EE101199106-199505

main48559-12080iAE101,104199505-200008

TOYOGOMU

main48559-12090iAE101,104199505-200008

48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1

main48559-12070iAE10#,CE100,104,EE101199106-199505

main48559-12080iAE101,104199505-200008

TOYOGOMU

main48559-12090iAE101,104199505-200008

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12064×4iAE104,CE104199109-199505

CARRIER SIDE

main90179-12106×2iAE104,CE104199109-199505

BODY SIDE

main90179-14019×4iAE100,101,CE100,EE101199106-199705

main90179-14025×4iAE100,101,CE100,101199705-200008

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-14083×4iAE100,101,CE100,EE101199106-199505

main90105-14099×4iAE100,101,CE100,101199505-200008

main90119-12150×6iAE104,CE104199109-200008

main90119-12152×2iAE104,CE104199109-199705

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14017×12iAE100,101,CE100,EE101199106-199705

main90201-14035×12iAE100,101,CE100,101199705-200008

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main90209-15002×2iAE100,101,CE100,101,EE101199106-200008

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-12160iAE101..GT199106-199505

main48710-12180iAE104,CE104199109-199505

main48710-12190iAE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE199106-199505

main48710-12200iAE100,CE100,101199505-200008

main48710-12210iAE101199605-200008

main48710-12230iAE104199505-200008

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-12160iAE101..GT199106-199505

main48710-12180iAE104,CE104199109-199505

main48710-12190iAE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE199106-199505

main48710-12200iAE100,CE100,101199505-200008

main48710-12210iAE101199605-200008

main48710-12230iAE104199505-200008

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-12050iAE101..GT199106-199505

main48730-12060iAE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE199106-199401

main48730-12070iAE104,CE104199109-199505

main48730-12090iAE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE199401-199505

main48730-12110iAE100,CE100199505-199611

main48730-12120iAE101199705-200008

main48730-12130iAE104199505-200008

main48730-12160iAE100,CE100,101199705-200008

main48730-13020iAE100,CE100199611-199704

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-16022iAE101199705-200008

main90179-18016iAE100,101,CE100199611-199705

48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)

main90179-16021iAE101199705-200008

main90179-18017iAE100,101,CE100199611-199705

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-12050iAE101..GT199106-199505

main48730-12060iAE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE199106-199401

main48730-12070iAE104,CE104199109-199505

main48730-12090iAE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE199401-199505

main48730-12110iAE100,CE100199505-199611

main48730-12120iAE101199705-200008

main48730-12130iAE104199505-200008

main48730-12160iAE101199605-199705

main48730-13020iAE100,CE100199611-199704

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-16022iAE100,101,CE100,EE101199106-199611

main90179-18016iCE101199804-200008

48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)

main90179-16021iAE101199705-200008

main90179-18017iAE100,CE100199705-200008

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-14015iAE100,101,104,CE100,101,104,EE101199106-200008

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15012iAE10#,CE100,104,EE101199106-199312

main90387-15027iAE100,101,104,CE100,101,104,EE101199312-200008

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-12010iAE10#,CE100,104,EE101199106-199505

main48753-12050iAE100,101,104,CE100,101199505-200008

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-12010iAE10#,CE100,104,EE101199106-199505

main48753-12050iAE100,101,104,CE100,101199505-200008

48753DCOVER, REAR SUSPENSION SUPOPORT, NO.2 RH

main48753-12031iAE101199605-199705

main48753-12080iAE101199705-200008

48753ECOVER, REAR SUSPENSION SUPOPORT, NO.2 LH

main48753-12041iAE101199605-199705

main48753-12080iAE101199705-200008

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-14015iAE100,101,104,CE100,101,104,EE101199106-200008

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15012iAE10#,CE100,104,EE101199106-199312

main90387-15027iAE100,101,104,CE100,101,104,EE101199312-200008

48780AROD ASSY, STRUT, REAR

main48780-12010×2iAE10#,CE100,104,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE199106-199505

main48780-12020×2iAE101..GT199106-199505

main48780-12040×2iAE101..3DS..GT199205-199505

main48780-12080×2iAE100,CE100,101199505-200008

main48780-12090×2iAE101,104199505-200008

48780BBOLT(FOR STRUT ROD)

main90119-12152×4iAE100,101,104,CE100,104,EE101199106-199705

48780CNUT(FOR STRUT ROD)

main90179-12062×2iAE10#,CE100,104,EE101199106-199505

main90179-12063×2iAE100,101,104,CE100,101199705-200008

main90179-12091×2iAE100,101,104,CE100,101199705-200008

48812BAR, STABILIZER, REAR

main48812-12160iAE100,CE100,101199705-200008

main48812-12170iAE100,101,CE100,EE101..DX,LX,SEG,SEL,SJ,XE199106-199505

main48812-12180iAE100,101,CE100..WG199109-199705

main48812-12190iAE101199705-200008

main48812-12210iAE104..4FC199109-199505

main48812-12220iAE104,CE104..5F199109-199505

main48812-12250iAE104199505-199705

main48812-12280iAE104199705-200008

48818BUSH, STABILIZER, REAR

main48818-12130×2iAE104..4FC199109-199307

main48818-12140×2iAE104,CE104..5F199109-199307

main48818-12150×2iAE100,101,CE100,EE101..DX,LX,SEG,SEL,SJ,XE199106-199211

main48818-12160×2iAE104199705-200008

main48818-12170×2iAE101..GT199307-199505

main48818-12190×2iAE104..4FC199307-199505

main48818-12200×2iAE104,CE104..5F199307-199505

main48818-12220×2iAE100,CE100,101199705-200008

main48818-20100×2iAE100..WG199109-199302

main48818-20110×2iAE101..GT199106-199307

48830LINK ASSY, REAR STABILIZER

main48830-12050×2iAE104,CE104199109-200008

main48830-12060×2iAE100,101,CE100199505-199705

main48830-20010×2iAE101199705-200008

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10183×4iAE100,101,104,CE100,101,104,EE101199106-200008

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-12070×2iAE104,CE104199109-199505

main48832-20030×2iAE104..WG;AE100,101,CE100,101,EE101199106-200008

9017908122

main90179-08122

9161160816

main91611-60816

48 parts on this diagram · 7 diagrams in section
