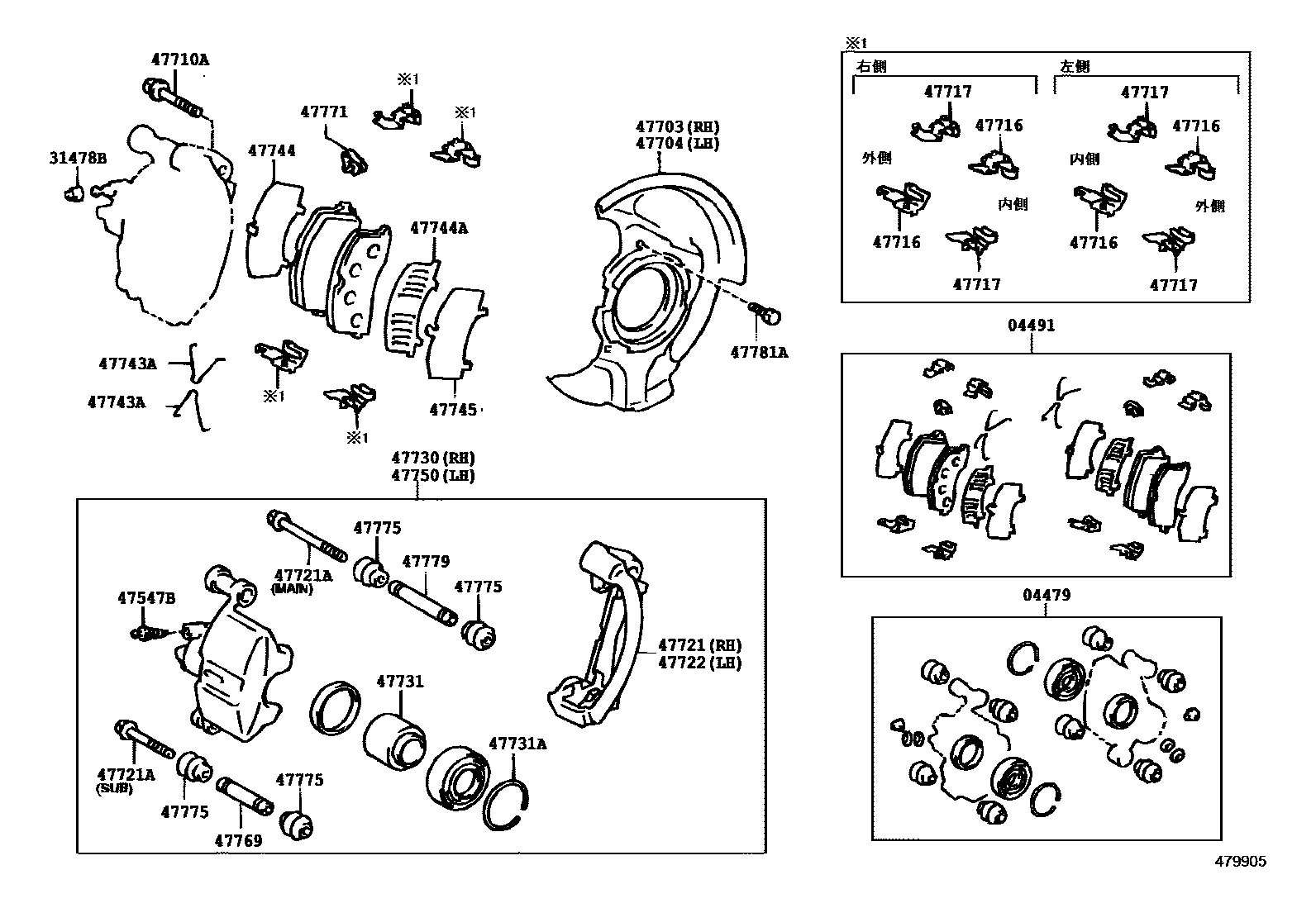

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1��(������������������) 0002 1��(������������������) 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iAE100,CE100,101,102,106,107,108,EE10#199508

main04479-12140iAE101,104..G,GT,LT199106-199508

main04479-12170iAE101..3DS..GT199205-199505

04491PAD KIT, DISC BRAKE, FRONT

main04491-12432iAE100,101,CE100,108,EE101,104..DX,G,L,LT,LX,SEG,SEL,SJ,XE199405-199505

main04491-12540iEE101,108199106-199401

main04491-12541iEE101,104199401-199403

main04491-12560iAE100,CE100,108199106-199401

main04491-12561iAE100,CE100,108199401-199403

main04491-12580iAE101..SEG,SJ199106-199401

main04491-12581iAE101..SEG,SJ199401-199403

main04491-12590iAE101..3DS..GT199205-199505

main04491-12610iAE104,CE104,109199109-199505

main04491-12620iCE106,EE106,107199109-199305

main04491-12630iAE101..GT199106-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAE10#,CE10#,EE10#199106

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAE10#,CE10#,EE10#199106

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-12160iAE104..4DS;AE100,109,CE10#,EE10#199106

main47781-12170iAE101,104..BZT,G,GT,LT,SEG,SJ199106-200008

main47781-12190iAE101..3DS..GT199205-199505

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-12160iAE104..4DS;AE100,109,CE10#,EE10#199106

main47782-12170iAE101,104..BZT,G,GT,LT,SEG,SJ199106-200008

main47782-12190iAE101..3DS..GT199205-199505

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131×4iAE101..3DS..GT199311-199505

main90119-12040×4iAE10#,CE10#,EE10#199106

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140×4iAE10#,CE10#,EE10#199610

main47716-32031×4iAE10#,CE10#,EE10#199106-199610

main47716-33010×2iAE101..3DS..GT199205-199505

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33020×2iAE101..3DS..GT199205-199505

main47717-20140×4iAE10#,CE10#,EE10#199610

main47717-32031×4iAE10#,CE10#,EE10#199106-199610

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iCE106,107,EE10#199106

main47721-12130iAE101,104..BZT,G,GT,LT199106-200008

main47721-12160iAE104..4DS;AE100,109,CE100,101,102,104,105,108,109199106

main47721-12170iAE101..SEG,SJ199106-199505

main47721-12180iAE101..3DS..GT199205-199505

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iEE103..GL;EE102..4F..02S;AE10#,CE10#,EE101,104,106,107,108;EE102,103..(3FC,4F)..(DX,DXJ)..05S199106

main90119-09004×2iEE103..GL;EE102..4F..02S;AE10#,CE10#,EE101,104,106,107,108;EE102,103..(3FC,4F)..(DX,DXJ)..05S199106

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iCE106,107,EE10#199106

main47721-12130iAE101,104..BZT,G,GT,LT199106-200008

main47721-12160iAE104..4DS;AE100,109,CE100,101,102,104,105,108,109199106

main47721-12170iAE101..SEG,SJ199106-199505

main47722-12010iAE101..3DS..GT199205-199505

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12310iCE106,107,EE10#199106

main47730-12320iAE101,104..BZT,G,GT,LT199106-200008

main47730-12400iAE100,CE100,101,102,108199508

main47730-12410iAE101..SEG,SJ199106-199505

main47730-12420iAE101..3DS..GT199205-199505

main47730-12440iAE109,CE105,109199508

47731PISTON, FRONT DISC BRAKE

main47731-12130×2iAE101,104..G,GT,LT199106-199508

main47731-12150×2iAE104..4DS;AE100,101,CE10#,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE199106-199508

main47731-50020×4iAE101..3DS..GT199205-199505

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-50002×4iAE101..3DS..GT199205-199505

main90522-61001×2iAE104..4DS;AE100,101,CE10#,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE199106-199508

main90522-64003×2iAE101,104,109,CE105,109199508

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12070×4iCE106,EE102,103199401-199411

main47743-32010×4iAE101..SEG,SJ199106-199401

main47743-32020×4iAE10#,CE100,104,108,109..DX,G,GL,GT,L,LT,LX,SEL,XE199106-199401

main47743-32030×4iAE101..3DS..GT199205-199505

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010×2iAE10#,CE10#,EE10#199106-199705

main47745-12060×2iAE101..3DS..GT199205-199505

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-12030×2iAE101..3DS..GT199205-199505

main47742-32040×2iAE10#,CE10#,EE10#199106-199705

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-12060×2iAE101..3DS..GT199205-199505

main47745-32040×2iAE10#,CE10#,EE10#199106-199705

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12310iCE106,107,EE10#199106

main47750-12320iAE101,104..BZT,G,GT,LT199106-200008

main47750-12400iAE100,CE100,101,102,108199508

main47750-12410iAE101..SEG,SJ199106-199505

main47750-12420iAE101..3DS..GT199205-199505

main47750-12440iAE109,CE105,109199508

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iAE10#,CE10#,EE10#199106

main47769-50010×2iAE101..3DS..GT199205-199505

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050×2iAE104,CE109199508-199605

main47771-32010×2iAE104..4DS;AE100,101,CE10#,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE199110-199508

main47771-50010×2iAE101..3DS..GT199205-199505

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-32010×8iAE10#,CE10#,EE10#199106

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iAE10#,CE10#,EE10#199106

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iAE10#,CE10#,EE10#199106
