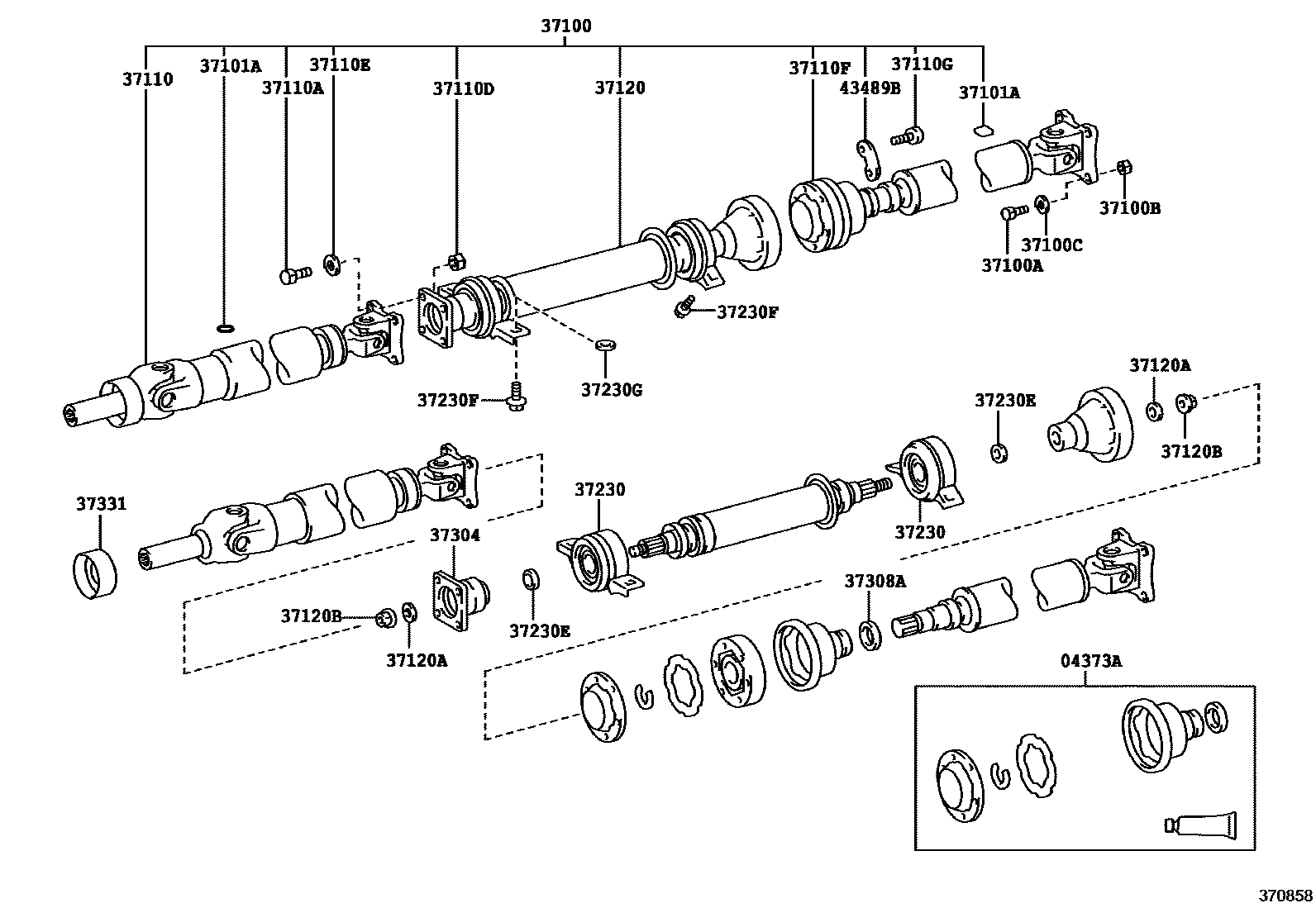

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0004 1

04373ABOOT KIT, UNIVERSAL

main04373-12010iAE104,109,CE104,105,109199109

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-12530iAE104,CE104..5F199109-199505

sub37100-12540

main37100-12540iAE104..4FC199109-199505

main37100-12550iCE109199109-199508

sub37100-12610

main37100-12580iAE104..5F199505-199802

sub37100-12590

main37100-12590iAE104199505-199802

main37100-12600iCE109199508-199804

sub37100-12610

main37100-12610iAE109..4FC199605-199802

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90101-08082iAE104,109,CE104,105,109199109

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90170-08015iAE104,109,CE104,105,109199109

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main94512-00800iAE104,109,CE104,105,109199109

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iAE104,109,CE104,105,109199109

main90937-01136iAE104,109,CE104,105,109199109

main90937-01140iAE104,109,CE104,105,109199109

main90937-01147iAE104,109,CE104,105,109199109

main90937-01148iAE104,109,CE104,105,109199109

main90937-01149iAE104,109,CE104,105,109199109

main90937-01150iAE104,109,CE104,105,109199109

main90937-01151iAE104,109,CE104,105,109199109

main90937-01152iAE104,109,CE104,105,109199109

main90937-01153iAE104,109,CE104,105,109199109

main90937-01154iAE104,109,CE104,105,109199109

main90937-01155iAE104,109,CE104,105,109199109

main90937-01156iAE104,109,CE104,105,109199109

main90937-01157iAE104,109,CE104,105,109199109

main90937-01158iAE104,109,CE104,105,109199109

main90937-01311iAE104,109,CE104,105,109199109

main90937-01312iAE104,109,CE104,105,109199109

main90937-01313iAE104,109,CE104,105,109199109

main90937-01314iAE104,109,CE104,105,109199109

37110SHAFT ASSY, PROPELLER

main37110-12500iAE104,CE104,109..4DS,V199109-199508

main37110-12530iAE109,CE105,109199508

main37110-12630iAE104199505

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082iAE104,109,CE104,105,109..4DS,V199109

main90105-10085iAE104199505

37110DNUT (FOR PROPELLER SHAFT)

main90170-08015iAE104,109,CE104,105,109..4DS,V199109

main90179-10059iAE104199505

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iAE104199505

sub90560-10H00

main94512-00800iAE104,109,CE104,105,109..4DS,V199109

37110FSHAFT ASSY, PROPELLER, REAR

main37110-12600iAE104,CE104..5F199109-199505

sub37110-12610

main37110-12610iAE104..4FC199109-199505

main37110-12620iCE109199109-199508

sub37110-12670

main37110-12640iAE104..5F199505-199802

sub37110-12650

main37110-12650iAE104..4FC199505-199802

main37110-12660iAE109,CE109..5F199508-199804

sub37110-12670

main37110-12670iAE109,CE105199605-199802

37110GBOLT (FOR REAR PROPELLER SHAFT)

main90110-08016iAE104,109,CE104,105,109199109-200201

sub90110-08036

main90110-08036iAE109,CE105200201

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-12260iAE104,109,CE104,105,109..4DS,V199109

main37120-12270iAE104199505

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-18182iAE104,109,CE104,105,109199109

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-18009iAE104,109,CE104,105,109199109

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-12120iAE104199505

main37230-12160iAE104,109,CE104,105,109..4DS,V199109

main37230-12170iAE104,109,CE104,105,109199109

37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)

main90201-25005iAE104,109,CE104,105,109199109

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444iAE104,109,CE104,105,109199109

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iAE104,CE104,109..4DS,V199109-199508

main90201-10083iAE104,109,CE104,105,109199109

main90201-10084iAE104,109,CE104,105,109199109

main90201-10095iAE104,CE104,109..4DS,V199109-199508

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-12010iAE104,109,CE104,105,109..4DS,V199109

main37304-20010iAE104199505

37308ACLAMP (FOR UNIVERSAL JOINT COVER)

main90949-01431iAE104,109,CE104,105,109199109

37331COVER, SLIDING SHAFT DUST

main37331-30010iAE104,109,CE104,105,109199109

43489BWASHER, CONSTANT VELOCITY UNIVERSAL JOINT

main43489-12010iAE104,CE104,109199109-199403

sub43489-20030

main43489-20030iAE104,109,CE104,105,109199403

23 parts on this diagram · 2 diagrams in section
