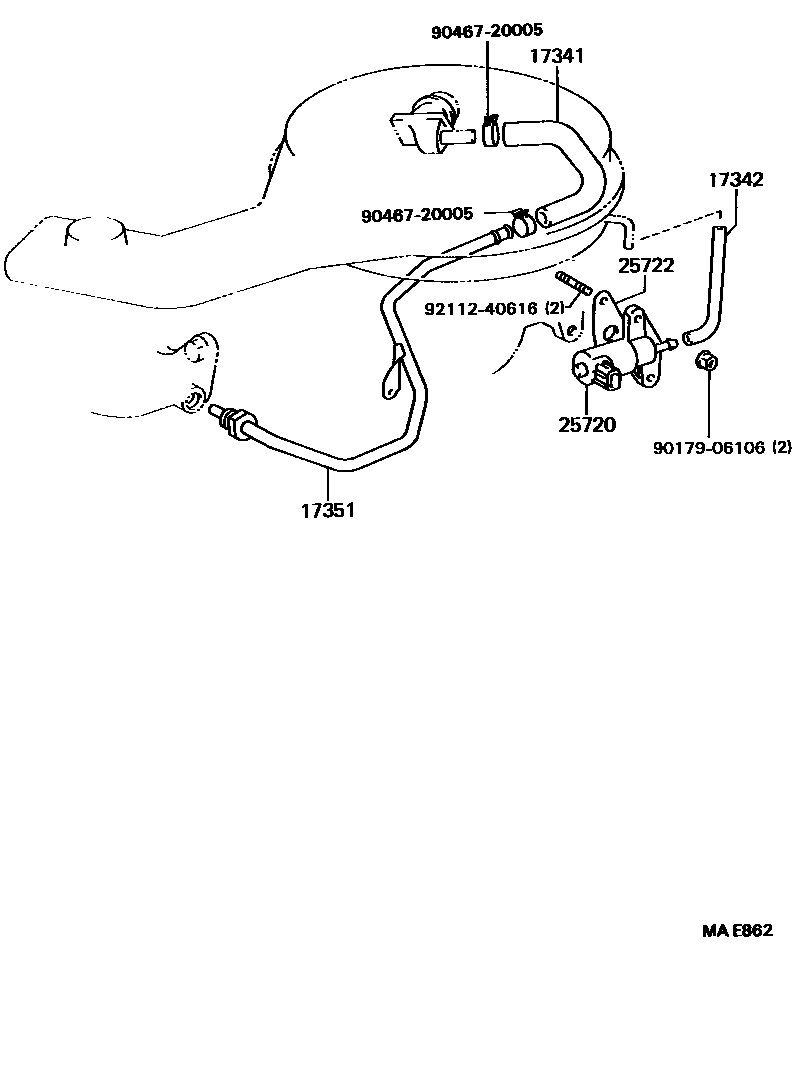

MANIFOLD AIR INJECTION SYSTEM

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-11120i2E,3E..EE106,107,108199109-199401

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-11090i2E,3E..EE106,107,108199109-199401

17351MANIFOLD, AIR INJECTION

main17306-11090i2E,3E..EE106,107,108199109-199401

25720VALVE ASSY, ELECTRIC AIR CONTROL

main25720-11080i2E,3E..EE106,107,108199109-199401

25722GASKET, ELECTRIC AIR CONTROL VALVE

main25722-11010i2E,3E..EE106,107,108199109-199401

9017906106

main90179-06106

9046720005

main90467-20005

9211240616

main92112-40616

8 parts on this diagram · 1 diagram in section
