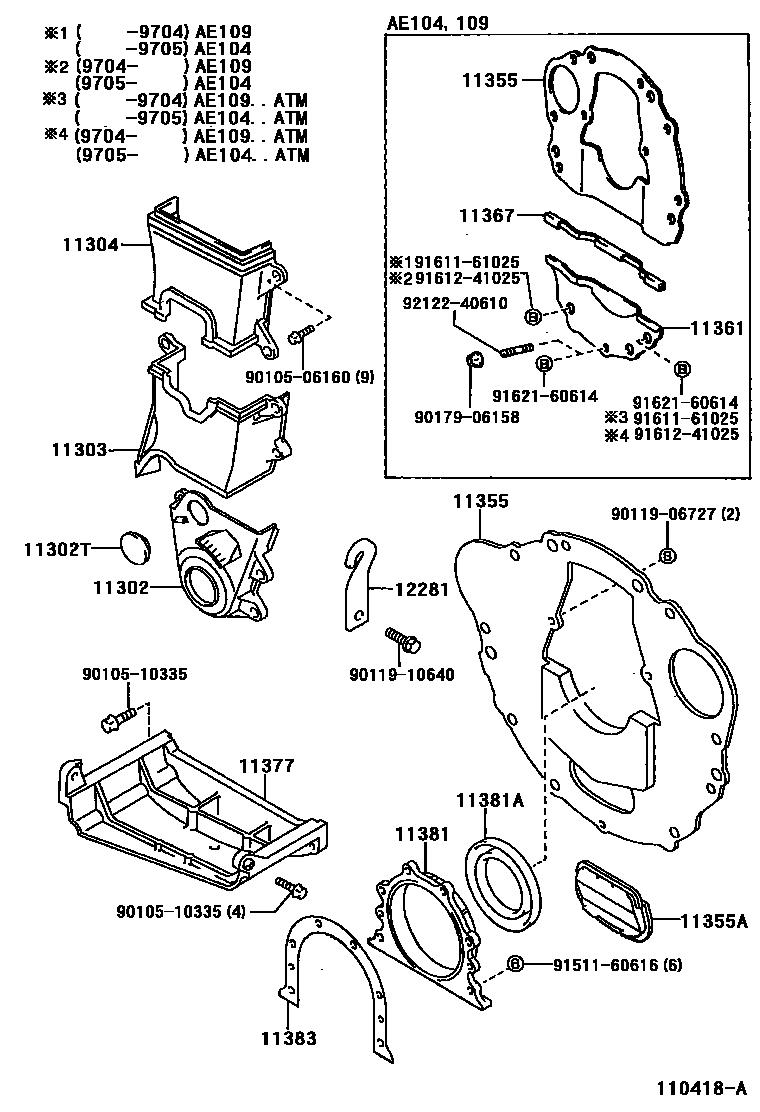

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11060i4EFE..EE101,102199106-199405

sub11302-11062

sub11328-11041

sub90387-06015

main11302-11062i4EFE..EE101,102199405-199704

main11302-11080i5EFE..EE103,104199401-199405

sub11302-11082

sub11328-11061

sub90387-06015

main11302-11082i5EFE..EE103,104199405-199704

main11302-11100i5EFE..EE103,104199704

main11302-11110i4EFE..EE102199704

main11302-15050i4AFE,5AFE..AE10#199106

11302TPLUG, HOLE

main90950-01783i4AFE,5AFE..AE10#199106

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-11030i4EFE,5EFE..EE101,102,103,104199106-199405

sub11303-11031

sub90387-06015

main11303-11031i4EFE,5EFE..EE10#199405

main11303-15050i4AFE,5AFE..AE10#199106

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15030i4AFE,5AFE..AE10#199106

11355PLATE, REAR END

main11355-10011i2E,3E,4EFE,5EFE..EE10#..MTM199106-199611

sub11355-10012

main11355-10012i4EFE,5EFE..EE10#..MTM199611

main11355-11011i2E,3E,4EFE,5EFE..EE10#..3FC199106-199611

sub11355-11012

main11355-11012i4EFE,5EFE..EE10#..3FC199611

main11355-15070i4A#,5AFE..AE100,101..MTM199106

main11355-15080i4A#,5AFE..AE100,101..ATM199106

main11355-16010i4AFE..AE104,109199109

main11355-64050i2C..CE10#..5F199106-199110

sub11355-64051

sub90119-06670

main11355-64051i2C,3CE..CE10#..5F199110-200003

sub11355-64052

main11355-64052i3CE..CE10#..5F200003

main11355-64060i2C..CE100,106,108..4FC199106-199110

sub11355-64061

sub90119-06670

main11355-64061i2C,3CE..CE100,101,102,106,107,108..4FC199110-200003

sub11355-64062

main11355-64062i3CE..CE101,102,107..4FC200003

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4A#,5AFE..AE100,101..ATM199106

main90950-01548i2E,3E,4EFE,5EFE..EE10#..3FC199106

main90950-01738i2C,3CE..CE100,101,102,106,107,108..4FC199106

11361COVER, FLYWHEEL HOUSING UNDER

main11361-16040i4AFE..AE104,109199109

11367GASKET, FLYWHEEL HOUSING UNDER

main11367-15030i4AFE..AE104,109199109

11377STIFFENER, REAR END PLATE

main11377-15010i4A#,5AFE..AE100,101199106-199208

sub11377-15011

main11377-15011i4A#,5AFE..AE100,101199208-199505

sub11377-15012

main11377-15012i4AGE,5AFE..AE100,101199505

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i2E,3E,4EFE,5EFE..EE10#199106-199407

main11381-10021i4EFE,5EFE..EE10#199407

main11381-15010i4A#,5AFE..AE10#199106

main11381-64012i2C,3CE..CE10#199106-199812

sub11381-64020

main11381-64020i3CE..CE10#199812

11381ASEAL, ENGINE REAR OIL

main90311-70007i4A#,5AFE..AE10#199106

main90311-75009i2E,4EFE..EE101,102,106199106

main90311-80012i3E,5EFE..EE103,104,107,108199109

main90311-90008i2C,3CE..CE10#199106

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15011i4A#,5AFE..AE10#199106-199205

sub11383-16010

main11383-16010i4A#,5AFE..AE10#199205

12281HANGER, ENGINE, NO.1

main12281-11031i4EFE,5EFE..EE10#199505

main12281-15050i4AFE,5AFE..AE10#199309

main12281-16040i4AGE..AE101199309-199311

sub12281-16041

main12281-16041i4AGE..AE101199311

9010506160

main90105-06160

9010510335

main90105-10335

9011906727

main90119-06727

9011910640

main90119-10640

9017906158

main90179-06158

9151160616

main91511-60616

9161161025

main91611-61025

9161241025

main91612-41025

9162160614

main91621-60614

9212240610

main92122-40610

23 parts on this diagram · 5 diagrams in section
