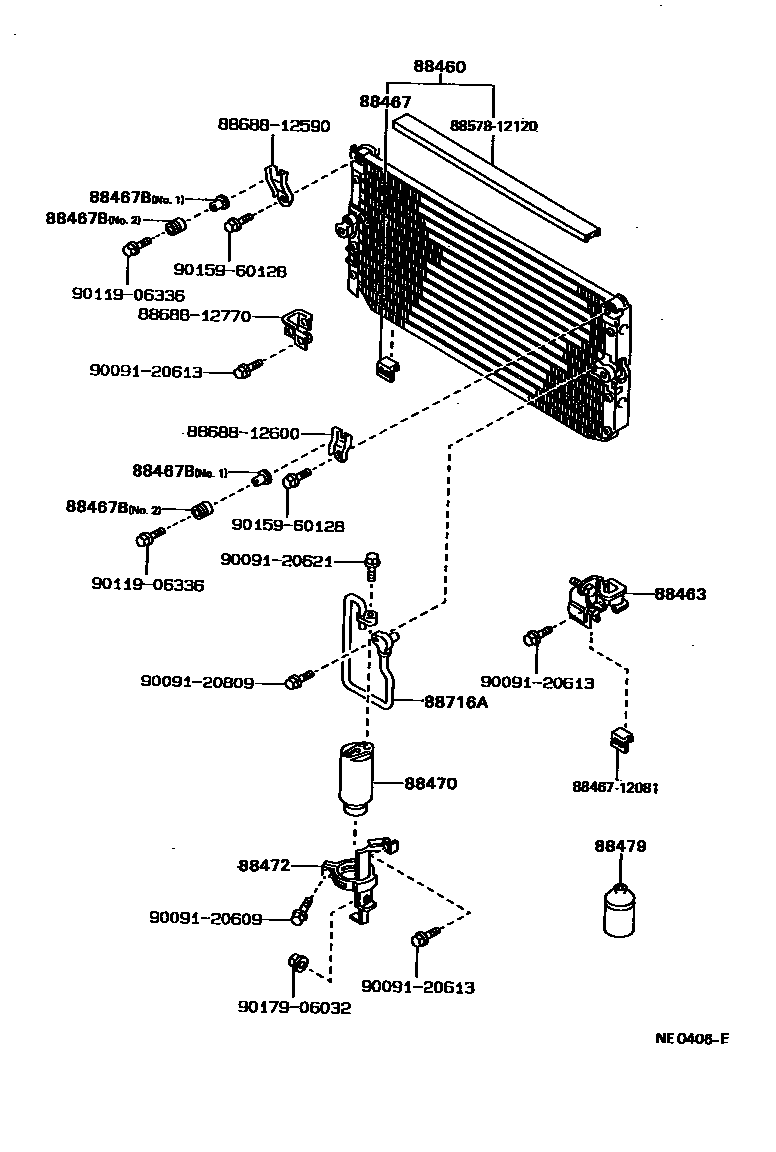

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88460CONDENSER ASSY, COOLER

main88460-12380iEE96..4F198705-199205

main88460-12390iCE9#..4FC..(DX,GL)198705-199109

88463BRACKET, COOLER CONDENSER, NO.1

main88463-12040iCE90..5F..SE198705-198803

main88463-12040iEE96198801-198804

main88463-12041iAE91,95..ATM..(FXG,FXL,G,TX,XE)..CBR198801-199205

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12080iAE91,95..4FC..(FXG,G,SE)198705-198803

main88467-12080iEE96198801-198804

main88467-12081iAE91,95..4FC..SE..CBR198801-199205

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-14070iAE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE198705-199205

main88467-14070iAE91..DX198705-199205

NO.1

main88467-20040iAE91..CBR,EFIS;AE92,95..FXGT,GT,SE,TX,XE198705-199205

main88467-20040iAE91..DX198905-199205

NO.2

88470RECEIVER & DRYER ASSY, COOLER

main88471-12020iAE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE198705-198805

L=167

sub88471-12060

main88471-16040iEE96..4F198805-199205

L=187

sub88471-16050

88472BRACKET, RECEIVER TANK, NO.1

main88473-12040iEE96198705-198805

main88473-12070iAE9#,CE90,95..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GT,LT,SE,TX,XE198805-199205

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iEE90;AE91,CE9#,EE97,98..DX,GL,STD198705-199106

sub90986-02004

sub90986-02005

main90986-02002iEE90;AE91,CE9#,EE97,98..DX,GL,STD198811-198908

sub90986-02004

main90986-02004iEE90;AE91,CE9#,EE97,98..DX,GL,STD198803-199205

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-12240iEE96198705-198805

main88726-12340iEE96..4F198805-199205

8846712081CUSHION, COOLER CONDENSER, NO.1

main88467-12081

8857812120PAKING, COOLER AIR DUCT

main88578-12120

8868812590BRACKET, COOLER DIAPHRAGM

main88688-12590

8868812600BRACKET, COOLER DIAPHRAGM

main88688-12600

8868812770BRACKET, COOLER DIAPHRAGM

main88688-12770

9009120609

main90091-20609

9009120613

main90091-20613

9009120621

main90091-20621

9009120809

main90091-20809

9011906336

main90119-06336

9015960128

main90159-60128

9017906032

main90179-06032

20 parts on this diagram · 6 diagrams in section
