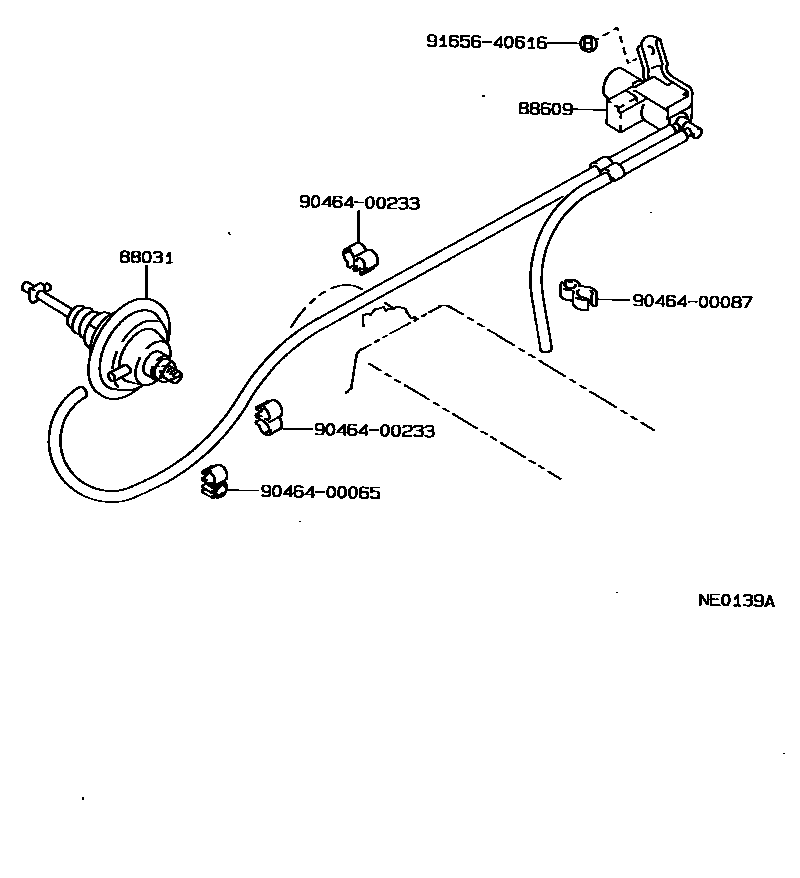

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1HEATER IDLE UP 0002 1AIR CONDITIONER IDLE UP 0003 1AIR CONDITIONER IDLE UP 0004 1AIR CONDITIONER IDLE UP 0005 1AIR CONDITIONER IDLE UP 0006 1AIR CONDITIONER IDLE UP

88031ACTUATOR SET, IDLE-UP

main88031-12150iCE96,97198705-198908

main88031-12150iCE90..DX198805-198905

main88031-12180iAE91..DX198705-198812

sub88031-12181

main88031-12181iAE91..DX198812-198908

main88031-12190iEE90;EE97..L198905-199109

main88031-12200iEE96,98..CTD,DX,GL198908-199109

main88031-13010iEE96198708-198908

main88031-13020iEE96..4F198908-199109

main88031-16070iEE90,97,98198705-198801

sub88031-16080

main88031-16080iEE96198801-198908

main88031-20080iCE95,96198905-199109

main88031-20080iCE90..SE,TX,XE198905-199106

88609DEVICE SUB-ASSY, IDLE UP

main88609-12500iCE9#198705-198908

main88609-12501iCE90,95..SE,TX,XE198905-199109

9046400065

main90464-00065

9046400087

main90464-00087

9046400233

main90464-00233

9165640616

main91656-40616

6 parts on this diagram · 6 diagrams in section
