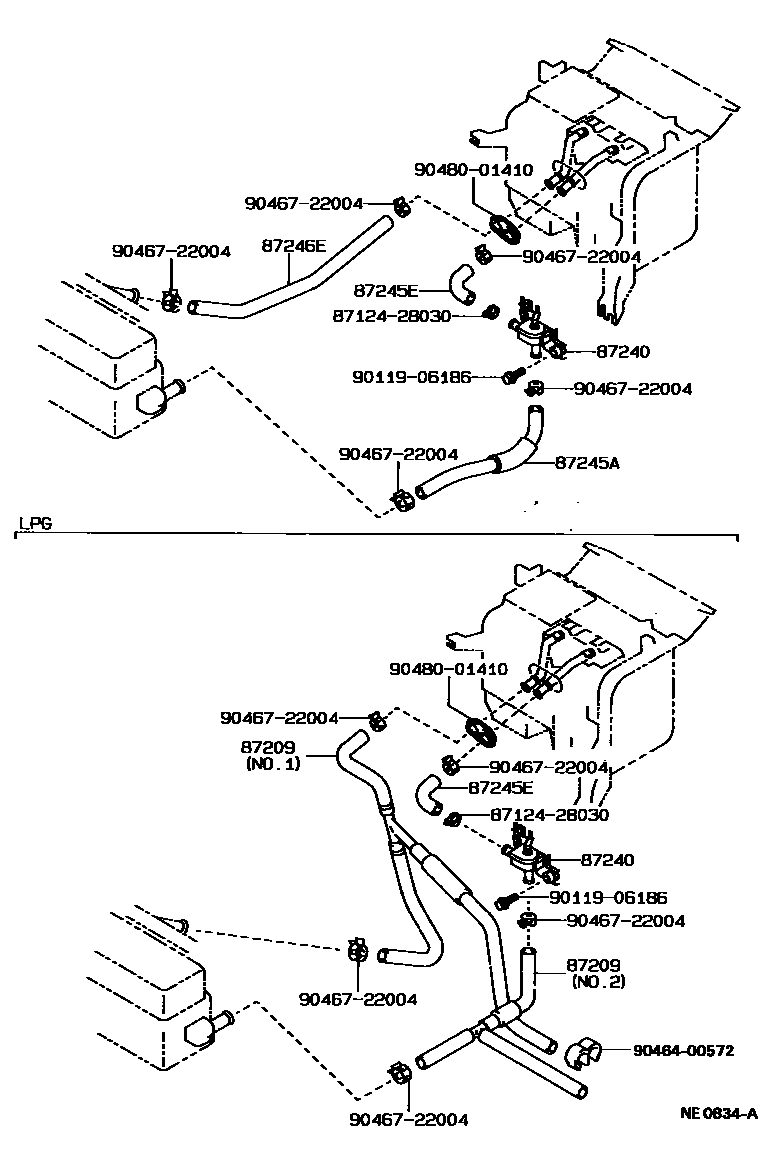

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87209HOSE SUB-ASSY, WATER

main87209-12400iCE9#198705-199109

main87209-13010iEE96198708-198908

sub87209-13011

main87209-13011iEE96..4F198908-199109

main87209-13020iEE96198708-198908

main87209-13021iEE96..4F198908-199109

87240VALVE ASSY, HEATER WATER

main87240-12230iAE9#,CE9#,EE9#198705-199205

87245AHOSE, HEATER WATER, INLET A

main87245-12840iAE91,95,EE9#198705-198905

sub87245-12841

main87245-12841iAE91,95,EE9#198905-199205

main87245-1A170iCE9#198705-199109

main87245-1A180iAE92198705-199205

87245EHOSE, HEATER WATER, INLET E

main87245-1A300iAE9#,CE9#,EE9#198705-199205

87246EHOSE, HEATER WATER, OUTLET E

main87245-1A210iEE9#198705-198905

sub87245-1A211

main87245-1A211iEE9#198905-199109

sub87245-1A670

main87245-1A240iAE91198705-198905

sub87245-1A241

main87245-1A241iAE91198905-199106

main87245-1A242iAE91199106-199205

main87245-1A250iCE90,96,97198705-199109

sub87245-1A510

main87245-1A260iAE92198705-199205

main87245-1A410iAE95198712-199106

main87245-1A430iCE95198910-199106

8712428030CLAMP, HEATER

main87124-28030

9011906186

main90119-06186

9046400572

main90464-00572

9046722004

main90467-22004

9048001410

main90480-01410

10 parts on this diagram · 3 diagrams in section
