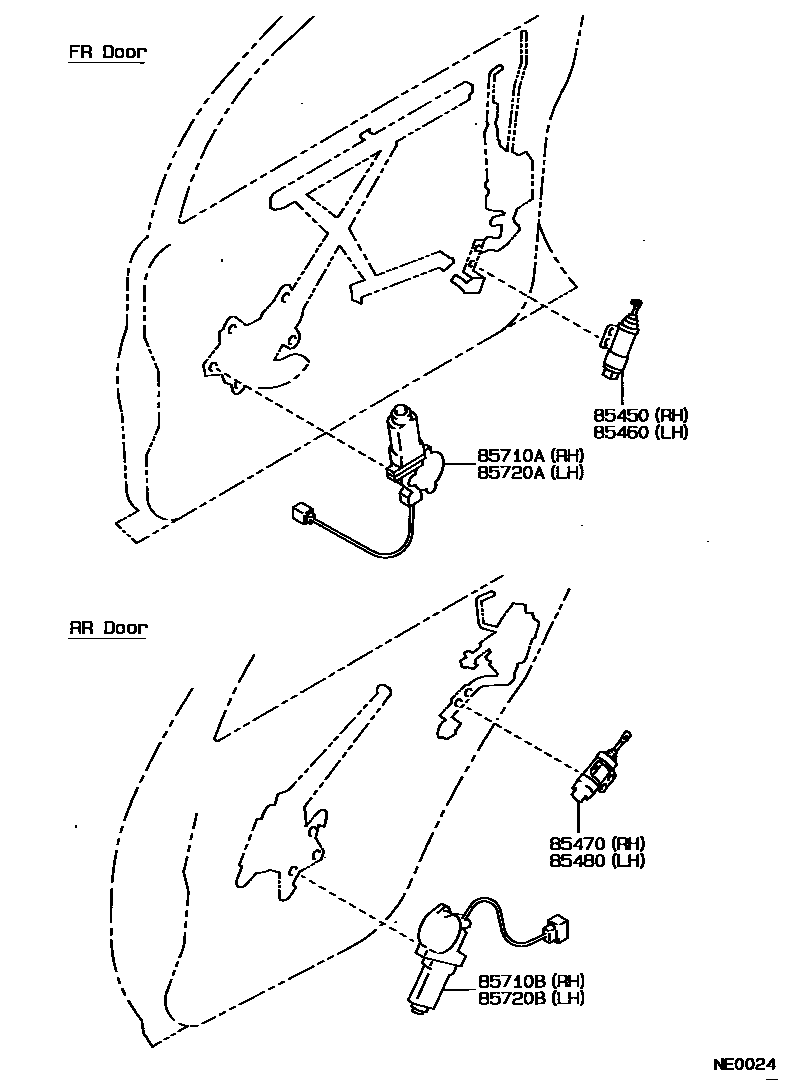

DOOR MOTOR & DOOR SOLENOID

0001 1 0002 1

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-12160iAE91..5D..EFIS;AE9#,CE90,95,EE90..(FXG,G,GT,LT,SE,XE)..(CBR,DSL,EFI)198705-199205

main85450-12200iAE91,92..3D..(FXG,FXGT,FXZI,FXZS)198705-199205

main85450-12330iAE91..SE..EFI198909-199106

main85450-12330iAE91..SE..EFIS198905-199106

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-12170iAE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)198705-199205

main85450-12210iAE91,92..3D..(FXG,FXGT,FXZI,FXZS)198705-199205

main85450-12340iAE91..SE..EFI198909-199106

main85450-12340iAE91..SE..EFIS198905-199106

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-12250iAE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)198705-198811

main85450-12320iAE91..SE..EFI198811-199205

main85450-12360iAE91..SE..EFIS198905-199106

main85450-12360iAE91..SE..EFI198909-199106

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-12240iAE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)198705-198811

main85450-12310iAE91..SE..EFI198811-199205

main85450-12350iAE91..SE..EFI198909-199106

main85450-12350iAE91..SE..EFIS198905-199106

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-12060iAE91,CE90..SE..(CBR,DSL)198705-199205

main85710-20060iAE91,92..3D..(FXG,FXGT,FXZI,FXZS)198705-199205

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-12080iAE91..SE..EFI198705-199205

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-12060iAE95..SE198705-199205

main85720-20060iAE91,92..3D..(FXG,FXGT,FXZI,FXZS)198705-199205

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-12070iAE95..SE198705-199205

8 parts on this diagram · 2 diagrams in section
