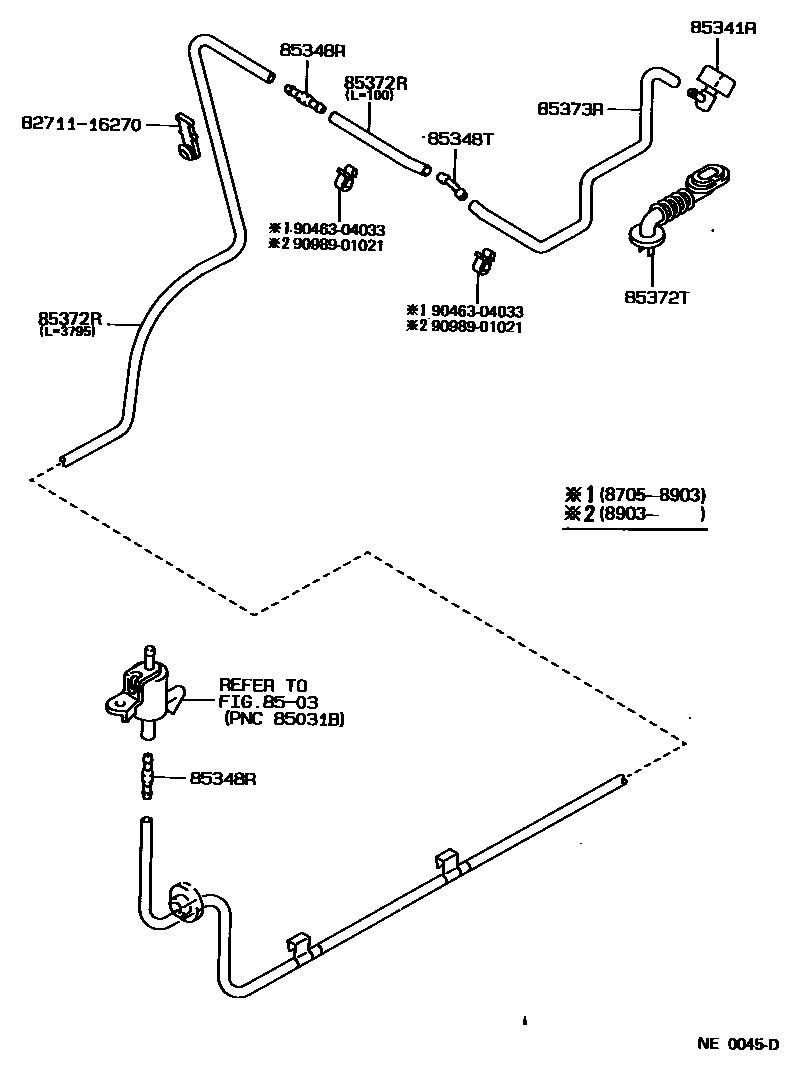

REAR WASHER

0001 1 0002 1 0003 1

8503

85341RNOZZLE ASSY, WASHER

main85341-12230iAE91,92,EE90..3D,5D198705-199205

main85341-13030iEE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT)198708-199109

sub85341-12230

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iEE98..4F;EE96..3FC..DX;CE96,EE96..DX..02S;CE97,EE96,97..GL,L198705-199205

85348TJOINT, REAR WASHER HOSE, NO.2

main85355-20080iEE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,92,CE96,97,EE97..(3D,5D,V,WG)..(DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,L,LT)198705-199205

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iEE98..(3FC,5F)..GL198708-199109

main90099-33167iAE91..WG198710-199109

main90099-33299iAE91,92,EE90..3D,5D198705-199205

main90099-33852iAE91,92,EE90..3D,5D198705-199205

sub90099-33595

main90446-07001iEE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT)198708-199109

85372TGROMMET, WASHER

main85372-12020iAE91,92,EE90..3D,5D,WG198705-199205

main85372-13010iEE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L198708-199109

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iEE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT)198708-199109

main90099-33299iAE91,92,EE90..3D,5D198705-199205

8271116270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16270

9046304033

main90463-04033

9098901021

main90989-01021

10 parts on this diagram · 3 diagrams in section
