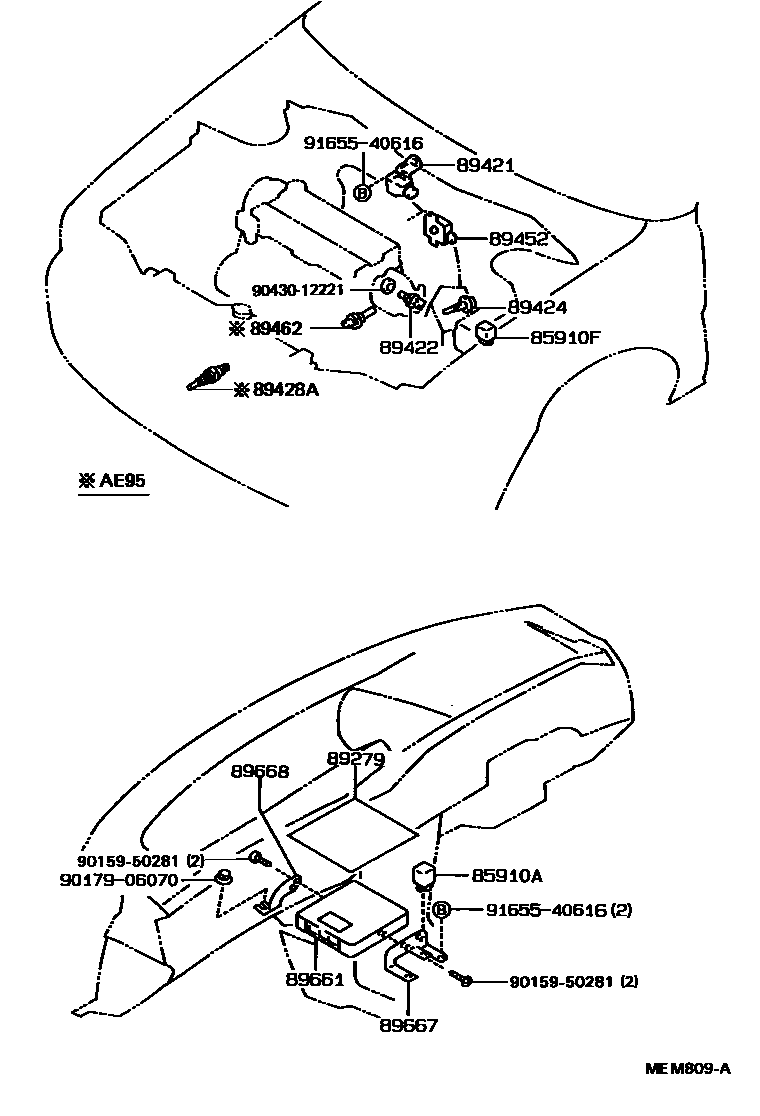

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89279COVER, ENGINE CONTROL COMPUTER
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)
89462SWITCH, START INJECTOR TIME
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9015950281
main90159-50281
9017906070
main90179-06070
9043012221
main90430-12221
9165540616
main91655-40616
16 parts on this diagram · 3 diagrams in section
