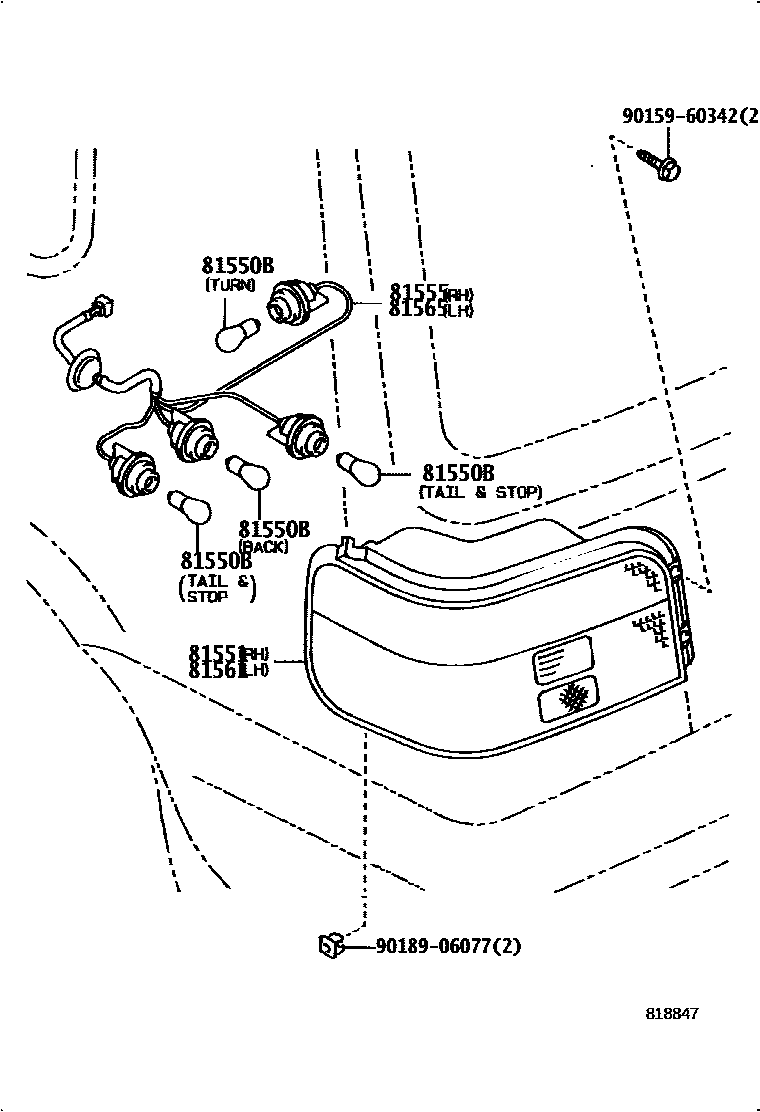

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iAE9#,CE90,EE90..3D,4D,5D198905-198908

main99132-21210×4iAE9#,CE90,95,EE90..GT,SE,XE198908-199205

81551LENS, REAR COMBINATION LAMP, RH

main81551-13300iAE91,CE96,97,EE96,97,98..V,WG198708-199109

main81551-1A360iAE9#,CE90,EE90..GT,SE,XE198705-198905

main81551-1A420iAE91,95,CE90,EE90..DX,TX198705-198905

main81551-1A520iAE91,92,EE90..3D,5D198705-198905

main81551-1A580iAE9#,CE90,95,EE90..GT,SE,XE198905-199106

main81551-1A600iAE91,92..3D,5D198905-199205

main81551-1A610iAE91,95,CE90,95,EE90..DX,TX198905-199106

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-13300iAE91,CE96,97,EE96,97,98..V,WG198708-199109

main81555-1A360iAE9#,CE90,EE90..4D198705-198905

main81555-1A520iAE91,92,EE90..3D,5D198705-198905

main81555-1A580iAE9#,CE90,95,EE90..4D198905-199106

main81555-1A600iAE91,92..3D,5D198905-199205

81561LENS, REAR COMBINATION LAMP, LH

main81561-12890iAE9#,CE90,EE90..GT,SE,XE198705-198905

main81561-13300iAE91,CE96,97,EE96,97,98..V,WG198708-199109

main81561-1A380iAE91,95,CE90,EE90..DX,TX198705-198905

main81561-1A520iAE91,92,EE90..3D,5D198705-198905

main81561-1A580iAE9#,CE90,95,EE90..GT,SE,XE198905-199106

main81561-1A600iAE91,92..3D,5D198905-199205

main81561-1A610iAE91,95,CE90,95,EE90..DX,TX198905-199106

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-13300iAE91,CE96,97,EE96,97,98..V,WG198708-199109

main81555-1A520iAE91,92,EE90..3D,5D198705-198905

main81555-1A600iAE91,92..3D,5D198905-199205

main81565-12890iAE9#,CE90,EE90..4D198705-198905

main81565-1A580iAE9#,CE90,95,EE90..4D198905-199106

9015960342

main90159-60342

9018906077

main90189-06077

7 parts on this diagram · 3 diagrams in section
