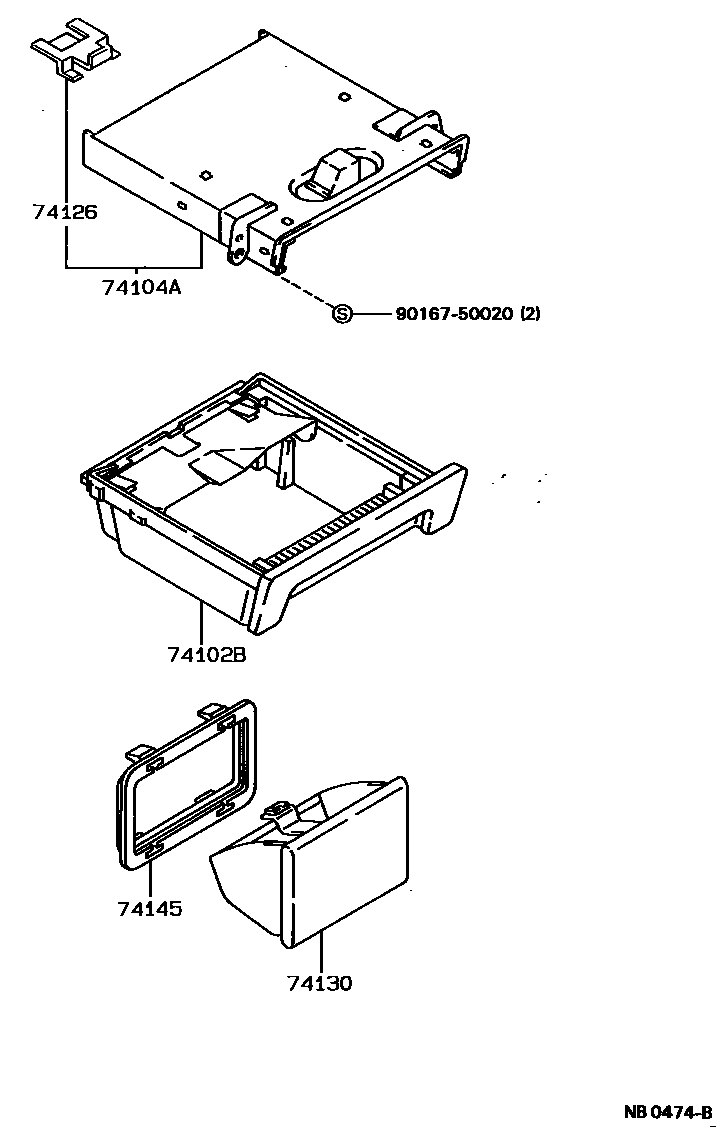

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12200-01iAE92..FXGT199106-199205

BLACK,TRIM1#

main74102-12200-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

main74102-12200-03iAE9#,CE9#,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE198705-199106

SHADOW GRAY,TRIM1#

main74102-12200-04iAE91..3FC..XE;AE92,95,CE90,EE90..DX,FXGTV,SE,TX,XE;AE91..(3D,4D)..(DX,FXV,FXVS,FXZS,SE,TX)198905-198908

DARK BLUE,TRIM8#

main74102-12200-05iCE96,97,EE96,97,98..DX,GL198905-198908

DARK BEIGE,TRIM4#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-12170iCE96,EE96..CTD,STD198708-199109

main74104-12180iAE9#,CE9#,EE9#..DX,FXD,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,GT,L,LT,SE,TX,XE198705-199108

74126SUPPORT, FRONT ASH RECEPTACLE RET, NO.3

main74126-32010iCE96,EE96..STD198708-198806

74130RECEPTACLE ASSY, REAR ASH

main74109-32010-02iAE91,95,CE90,EE90..SE,XE198705-198807

MAROON,TRIM3#

main74109-32010-05iCE97,EE97,98;CE96,EE96..(DX,GL)..05S198905-198908

DARK BEIGE,TRIM4#

main74109-32010-13iCE96,EE96..05S;AE9#,CE90,95,97,EE90,97,98198705-199009

SHADOW GRAY,TRIM1#

main74109-32010-B2iCE96,EE96..05S;AE9#,CE90,95,97,EE90,97,98199009-199106

SHADOW GRAY,TRIM1#

main74109-32010-D0iAE91,95,CE90,95,EE90..SE,XE198807-199106

MAROON,TRIM3#

main74109-32010-J0iAE91..3FC..XE;CE96,EE96..05S;AE91..(3D,4D,WG)..(DX,FXV,FXVS,FXZS,G,LT,SE,TX);AE92,95,CE90,95,97,EE90,97,98..DX,FXGTV,GL,L,SE,TX,XE198908-199106

DARK BLUE,TRIM8#

74145PLATE, REAR ASH RECEPTACLE

main74145-12020-05iCE96,EE96..DX..02S198708-198908

BEIGE,TRIM4#

main74145-12020-23iCE96,EE96..02S198708-199109

SHADOW GRAY,TRIM1#

main74145-12020-24iCE96,EE96..DX..02S198908-199109

DARK BLUE,TRIM8#

9016750020

main90167-50020

6 parts on this diagram · 1 diagram in section
