SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73178ACAP, SEAT BELT ANCHOR COVER

main73178-16010-13×2iAE9#,CE9#,EE9#198805-199009

GRAY,TRIM1#

main73178-16010-22×2iAE91,95,CE90,EE90..SE,XE198705-198809

MAROON,TRIM3#

main73178-16010-25×2iCE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE198705-198809

DARK BEIGE,TRIM4#

main73178-16010-B0×2iAE9#,CE9#,EE9#199009-199205

SHADOW GRAY,TRIM1#

main73178-16010-D0×2iAE91,95,CE90,95,EE90..SE,XE198809-199106

MAROON,TRIM3#

main73178-16010-E0×2iCE96,97,EE96,97,98..DX,GL198905-198908

DARK BEIGE,TRIM4#

main73178-16010-J0×2iAE91..3FC..XE;AE92,95,CE90,EE90..DX,FXGTV,SE,TX,XE;AE91..(3D,4D)..(DX,FXV,FXVS,FXZS,SE,TX)198905-198908

DARK BLUE,TRIM8#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12011-02×2iAE91,95,CE90,EE90..SE,XE198705-198905

MAROON,TRIM3#

main73200-12011-03×2iAE91..CBR198905-198908

SHADOW GRAY,TRIM1#

main73200-12011-05×2iAE91,95,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198705-198905

DARK BEIGE,TRIM4#

main73200-12012-02×2iAE91,95,CE90,95,EE90..SE,XE198905-199106

MAROON,TRIM3#

main73200-12012-03×2iAE92,95,CE90,95,EE90..4D;AE91..(4D,5D,WG)..(EFI,EFIS)198905-199205

SHADOW GRAY,TRIM1#

main73200-12012-04×2iAE91..3FC..XE;AE95,CE90,95,EE90;AE91..(DX,G,LT,SE,TX)..(EFI,EFIS)198905-199109

DARK BLUE,TRIM8#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-12620-02iAE91,CE90,EE90..SE,XE198705-198708

main73210-12620-03iAE9#,CE90,EE90..4D,5D198705-198708

main73210-12620-05iAE91,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198705-198708

main73210-12621-02iAE91,CE90,EE90..SE,XE; AE95..SE,XE198708-198905

main73210-12621-03iAE95..CBR198708-198908

SHADOW GRAY,TRIM1#

main73210-12621-05iAE91,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE); AE95198708-198905

main73210-12623-02iAE91,CE90,EE90..SE,XE; AE95,CE95..SE,XE198905-199106

main73210-12623-03iAE92,CE90,EE90..4D;AE91..(4D,5D,WG)..(EFI,EFIS); AE95,CE95198905-199205

main73210-12623-04iAE95,CE95; CE90,EE90;AE91..3FC..XE;AE91..(DX,G,LT,SE,TX)..(EFI,EFIS)198905-199109

main73210-12631-03iCE96,97,EE96,97,98198708-198908

SHADOW GRAY,TRIM1#,TAKATA

main73210-12631-05iCE96,97,EE96,97,98..DX,GL198708-198908

DARK BEIGE,TRIM4#,TAKATA

main73210-12650-02iAE91,CE90,EE90..SE,XE198705-198708

MAROON,TRIM3#,TAKATA

main73210-12650-03iAE9#,CE90,EE90..4D,5D198705-198708

SHADOW GRAY,TRIM1#,TAKATA

main73210-12650-05iAE91,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198705-198708

DARK BEIGE,TRIM4#,TAKATA

main73210-12651-02iAE91,CE90,EE90..SE,XE198708-198905

MAROON,TRIM3#,TAKATA

main73210-12651-03iAE91,92,CE90,EE90..4D,5D,WG198708-198905

SHADOW GRAY,TRIM1#,TAKATA

main73210-12651-05iAE91,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198708-198905

DARK BEIGE,TRIM4#,TAKATA

main73210-12653-02iAE91,CE90,EE90..SE,XE198905-199106

MAROON,TRIM3#,TAKATA

main73210-12653-03iAE92,CE90,EE90..4D;AE91..(4D,5D,WG)..(EFI,EFIS)198905-199205

SHADOW GRAY,TRIM1#,TAKATA

main73210-12653-04iCE90,EE90;AE91..3FC..XE;AE91..(DX,G,LT,SE,TX)..(EFI,EFIS)198905-199109

DARK BLUE,TRIM8#,TAKATA

main73210-12661-03iCE96,97,EE96,97,98198708-198908

main73210-12661-05iCE96,97,EE96,97,98..DX,GL198708-198908

main73210-12662-03iCE96,97,EE96,97,98198908-199109

SHADOW GRAY,TRIM1#

main73210-12662-04iCE96,97,EE96,97,98..CTD,DX,GL,L198908-199109

DARK BLUE,TRIM8#

main73210-12740-03iAE91,92,EE90..3D198705-198905

main73210-12740-05iAE91,EE90..3D198705-198905

main73210-12741-03iAE91,92..3D198905-199205

SHADOW GRAY,TRIM1#

main73210-12741-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

main73210-12750-03iAE91,92,EE90..3D198705-198905

SHADOW GRAY,TRIM1#,TAKATA

main73210-12750-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#,TAKATA

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12530-02iAE91,CE90,EE90..SE,XE198705-198708

main73220-12530-03iAE9#,CE90,EE90..4D,5D198705-198708

main73220-12530-05iAE91,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198705-198708

main73220-12531-02iAE91,CE90,EE90..SE,XE; AE95..SE,XE198708-198905

main73220-12531-03iAE95..CBR198708-198908

SHADOW GRAY,TRIM1#

main73220-12531-05iAE91,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE); AE95198708-198905

main73220-12533-02iAE91,CE90,EE90..SE,XE; AE95,CE95..SE,XE198905-199106

main73220-12533-03iAE92,CE90,EE90..4D;AE91..(4D,5D,WG)..(EFI,EFIS); AE95,CE95198905-199205

main73220-12533-04iAE95,CE95; CE90,EE90;AE91..3FC..XE;AE91..(DX,G,LT,SE,TX)..(EFI,EFIS)198905-199109

main73220-12541-03iCE96,97,EE96,97,98198708-198908

SHADOW GRAY,TRIM1#,TAKATA

main73220-12541-05iCE96,97,EE96,97,98..DX,GL198708-198908

DARK BEIGE,TRIM4#,TAKATA

main73220-12550-03iAE91,92,EE90..3D198705-198905

SHADOW GRAY,TRIM1#,TAKATA

main73220-12550-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#,TAKATA

main73220-12560-02iAE91,CE90,EE90..SE,XE198705-198708

MAROON,TRIM3#,TAKATA

main73220-12560-03iAE9#,CE90,EE90..4D,5D198705-198708

SHADOW GRAY,TRIM1#,TAKATA

main73220-12560-05iAE91,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198705-198708

DARK BEIGE,TRIM4#,TAKATA

main73220-12561-02iAE91,CE90,EE90..SE,XE198708-198905

MAROON,TRIM3#,TAKATA

main73220-12561-03iAE91..CBR198905-198908

SHADOW GRAY,TRIM1#,TAKATA

main73220-12561-05iAE91,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198708-198905

DARK BEIGE,TRIM4#,TAKATA

main73220-12563-02iAE91,CE90,EE90..SE,XE198905-199106

MAROON,TRIM3#,TAKATA

main73220-12563-03iAE92,CE90,EE90..4D;AE91..(4D,5D,WG)..(EFI,EFIS)198905-199205

SHADOW GRAY,TRIM1#,TAKATA

main73220-12563-04iCE90,EE90;AE91..3FC..XE;AE91..(DX,G,LT,SE,TX)..(EFI,EFIS)198905-199109

DARK BLUE,TRIM8#,TAKATA

main73220-12571-03iCE96,97,EE96,97,98198708-198908

main73220-12571-05iCE96,97,EE96,97,98..DX,GL198708-198908

main73220-12572-03iCE96,97,EE96,97,98198908-199109

SHADOW GRAY,TRIM1#

main73220-12572-04iCE96,97,EE96,97,98..CTD,DX,GL,L198908-199109

DARK BLUE,TRIM8#

main73220-12600-03iAE91,92,EE90..3D198705-198905

main73220-12600-05iAE91,EE90..3D198705-198905

main73220-12690-03iAE91,92..3D198905-199205

SHADOW GRAY,TRIM1#

main73220-12690-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12280-02iAE91,CE90,EE90..SE,XE198705-198905

MAROON,TRIM3#,TAKATA

main73230-12280-03iAE91,92,CE9#,EE9#198705-198905

SHADOW GRAY,TRIM1#,TAKATA

main73230-12280-05iCE96,97,EE96,97,98..DX,GL198905-198908

DARK BEIGE,TRIM4#,TAKATA

main73230-12281-02iAE91,CE90,EE90..SE,XE198905-199106

MAROON,TRIM3#,TAKATA

main73230-12281-03iAE92,CE90,EE90..4D;AE91..(4D,5D,WG)..(EFI,EFIS)198905-199205

SHADOW GRAY,TRIM1#,TAKATA

main73230-12281-04iCE90,EE90;AE91..3FC..XE;AE91..(DX,G,LT,SE,TX)..(EFI,EFIS)198905-199109

DARK BLUE,TRIM8#,TAKATA

main73230-12300-02iAE91,CE90,EE90..SE,XE198705-198905

main73230-12300-03iAE91,92,CE9#,EE9#198705-198905

main73230-12300-05iCE96,97,EE96,97,98..DX,GL;AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE198705-198905

main73230-12301-02iAE91,CE90,EE90..SE,XE198905-199106

main73230-12301-03iAE91,92,CE96,97,EE96,97,98..(3D,V,WG)..(CTD,DX,FXGT,FXGTV,FXV,FXVS,FXZS,GL,L,STD)198908-199205

SHADOW GRAY,TRIM1#

main73230-12301-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-198908

DARK BLUE,TRIM8#

main73230-12370-02iAE95..SE,XE198710-198905

MAROON,TRIM3#

main73230-12370-03iAE95198710-198905

SHADOW GRAY,TRIM1#

main73230-12370-05iAE95198710-198905

DARK BEIGE,TRIM4#

main73230-12371-02iAE95,CE95..SE,XE198905-199106

MAROON,TRIM3#

main73230-12371-03iAE95,CE95198905-199106

SHADOW GRAY,TRIM1#

main73230-12371-04iAE95,CE95198905-199106

DARK BLUE,TRIM8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12280-02iAE91,CE90,EE90..SE,XE198705-198905

MAROON,TRIM3#,TAKATA

main73230-12280-03iAE91,CE96,97,EE96,97,98..CBR,DSL198905-198908

SHADOW GRAY,TRIM1#,TAKATA

main73230-12280-05iCE96,97,EE96,97,98..DX,GL198905-198908

DARK BEIGE,TRIM4#,TAKATA

main73230-12281-02iAE91,CE90,EE90..SE,XE198905-199106

MAROON,TRIM3#,TAKATA

main73230-12281-03iAE92,CE90,EE90..4D;AE91..(4D,5D,WG)..(EFI,EFIS)198905-199205

SHADOW GRAY,TRIM1#,TAKATA

main73230-12281-04iCE90,EE90;AE91..3FC..XE;AE91..(DX,G,LT,SE,TX)..(EFI,EFIS)198905-199109

DARK BLUE,TRIM8#,TAKATA

main73230-12300-02iAE91,CE90,EE90..SE,XE198705-198905

main73230-12300-03iAE91,CE96,97,EE96,97,98..CBR,DSL198905-198908

main73230-12300-05iCE96,97,EE96,97,98..DX,GL;AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE198705-198905

main73230-12301-02iAE91,CE90,EE90..SE,XE198905-199106

main73230-12301-03iAE91,92..3D198905-198908

SHADOW GRAY,TRIM1#

main73230-12301-04iCE90,EE90;AE91..3FC..XE;AE91..(DX,G,LT,SE,TX)..(EFI,EFIS)198905-199205

main73230-12370-02iAE95..SE,XE198710-198905

MAROON,TRIM3#

main73230-12370-03iAE95198710-198905

SHADOW GRAY,TRIM1#

main73230-12370-05iAE95198710-198905

DARK BEIGE,TRIM4#

main73230-12371-02iAE95,CE95..SE,XE198905-199106

MAROON,TRIM3#

main73230-12371-03iAE95,CE95198905-199106

SHADOW GRAY,TRIM1#

main73230-12371-04iAE95,CE95198905-199106

DARK BLUE,TRIM8#

73256KNOB, SHOULDER BELT ANCHOR ADJUST

main73256-12010-02×2iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

main73256-12010-03×2iAE9#,CE90,95,EE90..4D,5D,WG198705-199205

SHADOW GRAY,TRIM1#

main73256-12010-04×2iAE91..3FC..XE;AE95,CE90,95,EE90;AE91..(DX,G,LT,SE,TX)..(EFI,EFIS)198905-199109

DARK BLUE,TRIM8#

main73256-12010-05×2iAE91,95,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198705-198905

DARK BEIGE,TRIM4#

9163140614

main91631-40614

9165561025

main91655-61025

9338216014

main93382-16014

9354054020

main93540-54020

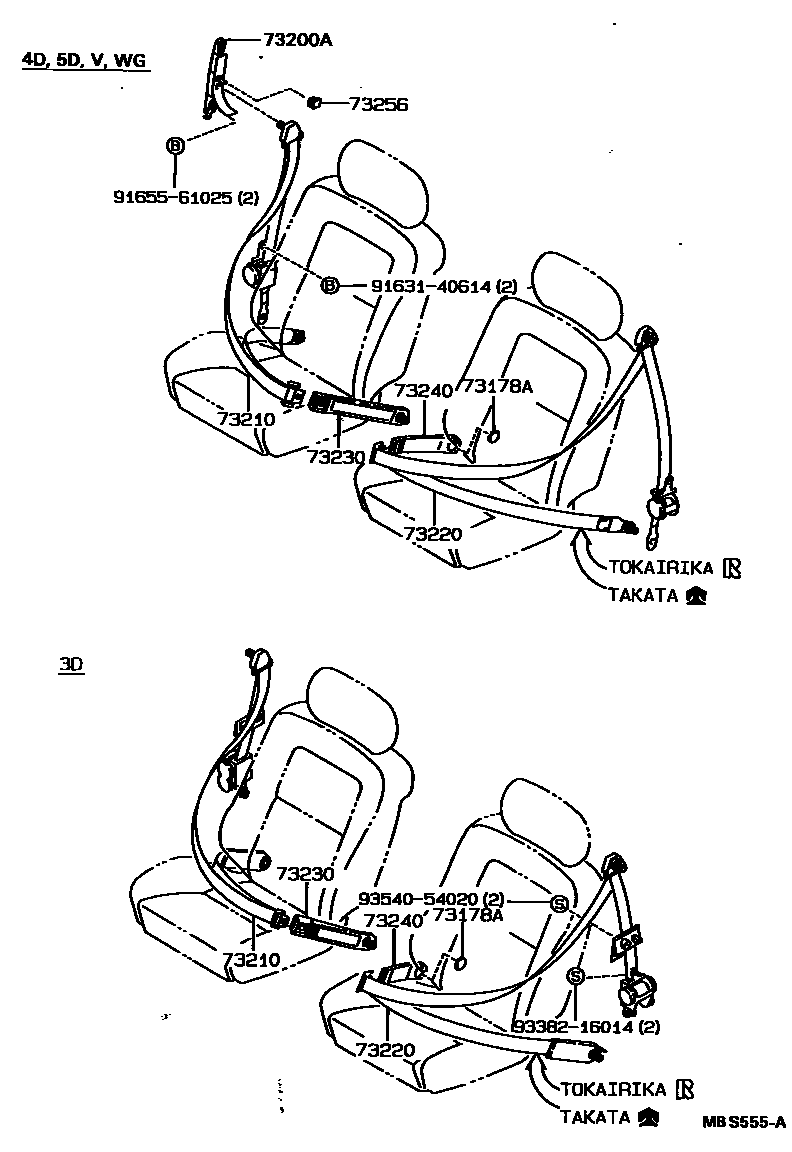

11 parts on this diagram · 2 diagrams in section
