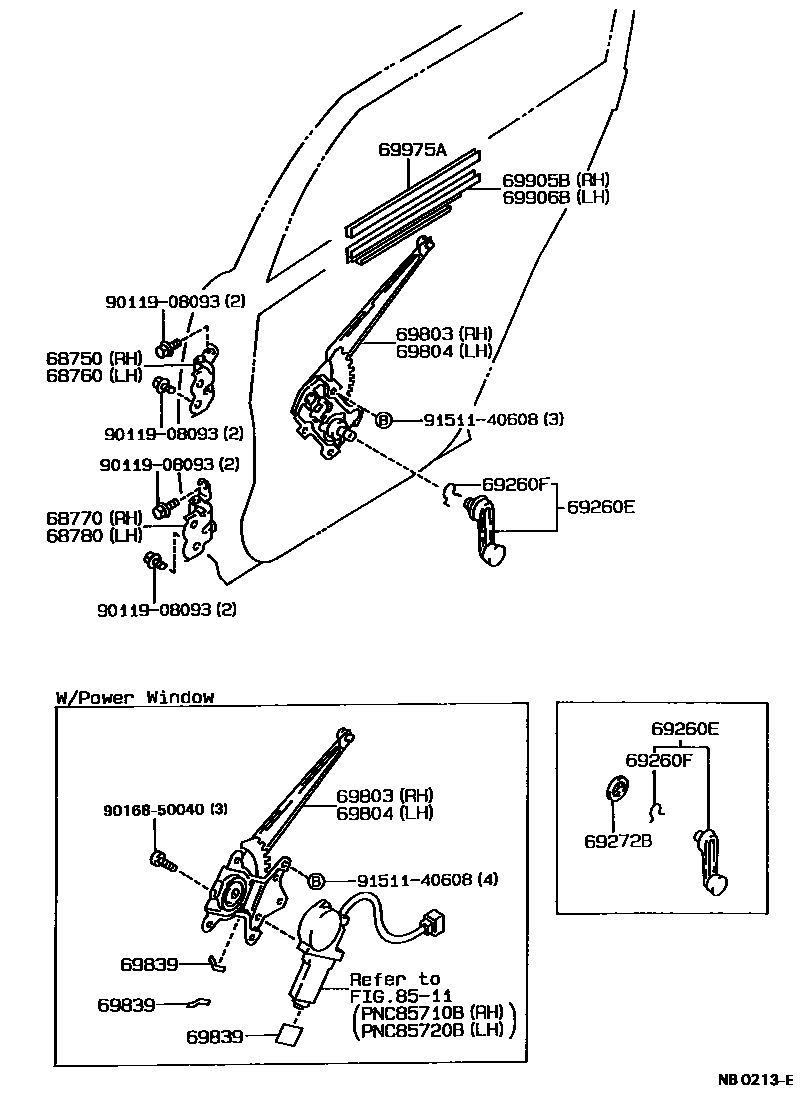

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-12040iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199109

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-12040iAE91..5D199109-199205

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12050iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199109

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12040iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199109

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-12×2iAE91,95,CE90,95,EE90..XE198705-199109

MAROON,TRIM3#

main69260-10040-43×2iAE91,95,CE9#,EE9#..CTD,DX,FXL,GL,L,LT,STD,TX,XE198908-199109

GRAY,TRIM1#

main69260-10040-55×2iCE97,EE97,98;CE96,EE96..(DX,GL)..05S;AE91,95,CE90,EE90..(4D,5D)..(FXL,TX,XE)198705-198905

DARK BEIGE,TRIM4#

main69260-10040-58×2iAE91..3FC..XE;AE91..DX,LT,TX;AE95,CE9#,EE9#..CTD,DX,GL,L,TX,XE198908-199109

DARK BLUE,TRIM8#

main69260-12080-02×2iAE91,95,CE90,95..SE..(DSL,EFI)198908-199106

MAROON,TRIM3#

main69260-12080-03×2iAE91..CBR198905-198908

SHADOW GRAY,TRIM1#

main69260-12080-04×2iAE91,95,CE90,95..SE..(DSL,EFI)198908-199106

BLUE,TRIM8#

main69260-12080-05×2iAE91..5D..EFI;AE91,95,CE90..(4D,5D)..(FXG,SE)..(CBR,DSL)198705-198905

DARK BEIGE,TRIM4#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iAE91..FXL199202-199205

main90520-01005×2iAE91..(5D,WG)..(CBR,EFIS);AE9#,CE90,95..(FXG,GT,SE)..(DSL,EFI)198905-199205

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-16010×2iCE96,EE96..05S;AE91,95,CE90,97,EE90,97,98..(4D,5D,V,WG)..(DX,FXL,GL,TX,XE)198705-198908

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12060iAE91..SE..EFI; AE95,CE90,95..SE199005-199109

main69830-12130iAE91..5D..EFIS;CE96,EE96..05S;AE9#,CE90,97,EE90,97,98..(4D,5D,V,WG)..(CBR,DSL,EFI)198905-198908

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12060iAE91..SE..EFI; AE95,CE90,95..SE199005-199109

main69840-12130iAE91..5D..EFI;CE96,EE96..05S;AE91..(4D,5D,WG)..CBR;AE92,95,CE90,97,EE90,97,98..4D,5D,V,WG198705-198905

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12010×4iAE91..5D..(FXG,FXZS)199109-199205

7X65

main69839-95800×2iAE92,95..GT,SE;AE91..(5D,WG)..(4FC,5F)198705-198808

25X25

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-12110iCE96,EE96..05S;AE9#,CE90,97,EE90,97,98..4D,5D,V,WG198705-198908

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-12100iAE9#,CE9#,EE9#..4D,5D,V,WG198908-199109

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12010×2iAE91..5D199109-199205

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908093

main90119-08093

9016850040

main90168-50040

9151140608

main91511-40608

17 parts on this diagram · 1 diagram in section
