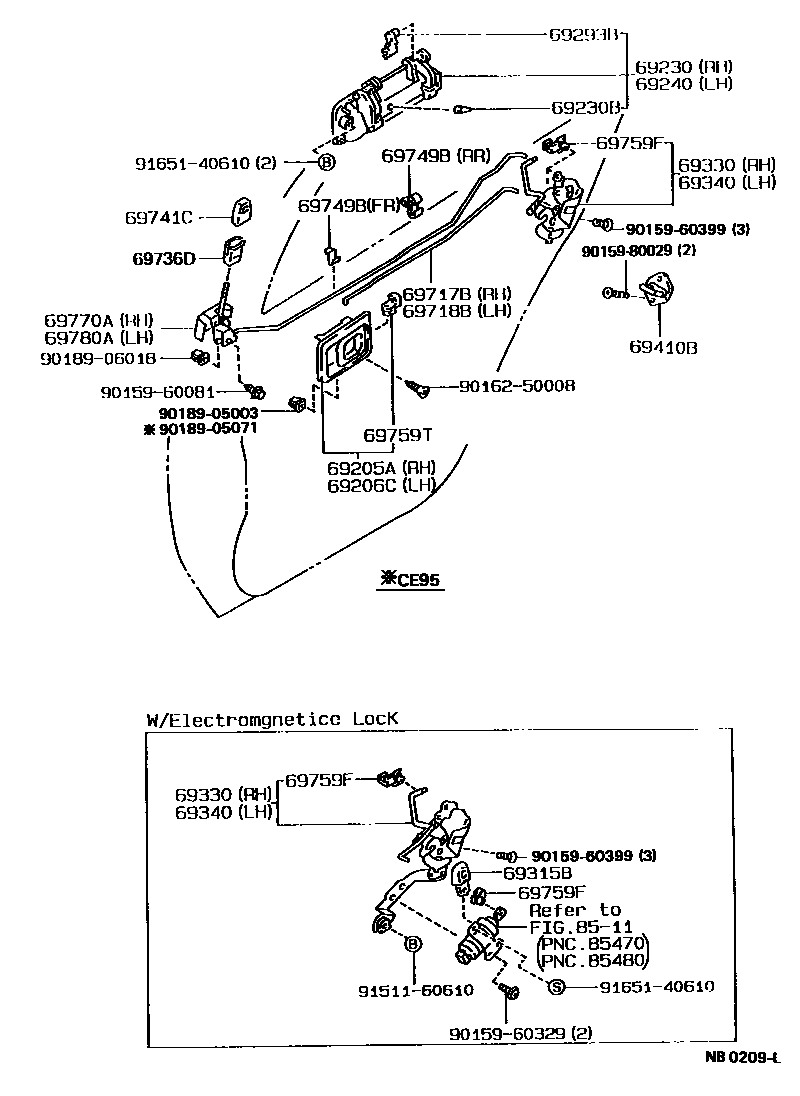

REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-10040-02iAE91,95,CE90,95,EE90..XE198705-199109

MAROON,TRIM3#

sub69205-10040

sub69205-10030

main69205-10040-05iCE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..(4D,5D)..(FXL,TX,XE)198705-198905

DARK BEIGE,TRIM4#

sub69205-10040

sub69205-10030

main69205-10040-13iCE96,EE96..05S;AE91,95,CE90,97,EE90,97,98..(4D,5D,V,WG)..(DX,FXL,GL,TX,XE)198705-199205

GRAY,TRIM1#

sub69205-10040

sub69205-10030

main69205-10040-34iAE91..DX,TX;AE91..3FC..XE;AE95,CE90,EE90..DX,TX,XE198905-199109

BLUE,TRIM8#

sub69205-10040

sub69205-10030

main69206-12120-02iAE91,95,CE90..SE198705-199106

MAROON,TRIM3#

sub69206-12120

main69206-12120-03iAE9#,CE90,95..(4D,5D,WG)..(FXG,FXZS,G,GT,SE)198705-199205

SHADOW GRAY,TRIM1#

sub69206-12120

main69206-12120-04iAE91,95,CE90,95..G,SE198908-199109

BLUE,TRIM8#

sub69206-12120

main69206-12120-05iAE91,95,CE90..(4D,5D)..(FXG,FXZI,SE)198705-198905

DARK BEIGE,TRIM4#

sub69206-12120

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69205-12120-02iAE91,95,CE90,95..SE198705-199106

MAROON,TRIM3#

sub69205-12120

main69205-12120-03iAE91..CBR198705-199205

SHADOW GRAY,TRIM1#

sub69205-12120

main69205-12120-04iAE91,95,CE90,95..G,SE198908-199109

BLUE,TRIM8#

sub69205-12120

main69205-12120-05iAE91,95,CE90..(4D,5D)..(FXG,FXZI,SE)198705-198905

DARK BEIGE,TRIM4#

sub69205-12120

main69206-10040-02iAE91,95,CE90,EE90..XE198905-198908

MAROON

sub69206-10040

sub69206-10030

main69206-10040-02iAE91,95,CE90,EE90..XE198705-199109

MAROON,TRIM3#

sub69206-10040

sub69206-10030

main69206-10040-05iCE97,EE97,98;CE96,EE96..(DX,GL)..05S;AE91,95,CE90,EE90..(4D,5D)..(FXL,TX,XE)198705-198905

DARK BEIGE,TRIM4#

sub69206-10040

sub69206-10030

main69206-10040-13iAE91..FXL198705-199205

GRAY,TRIM1#

sub69206-10040

sub69206-10030

main69206-10040-34iAE91..DX,TX;AE91..3FC..XE;AE95,CE90,EE90..DX,TX,XE198905-199109

BLUE,TRIM8#

sub69206-10040

sub69206-10030

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-12100iAE9#,CE90,95,EE90..G,GT,LT,SE,XE198705-199109

main69230-12100iAE91,95,CE90,EE90..XE198805-198905

main69230-12110iAE91..5D198705-199205

main69230-12120-08iAE91..SE..EFI198909

sub69230-12130

main69230-12130-A0iAE91..SE..EFI199008-199106

sub69230-12130

main69230-12130-A0iAE91..SE..EFI199008-199106

sub69230-12130

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-12100iAE91,95,CE90..(G,SE)..(CBR,DSL)198705-199109

main69240-12100iAE91,95,CE90,EE90..XE198805-198905

main69240-12110iAE91,95,CE9#,EE9#..(4D,5D,V,WG)..(CTD,DX,FXG,FXL,FXZS,GL,L,STD,TX)198705-199205

main69240-12120-08iAE91..SE..EFI198909

sub69240-12130

main69240-12130-A0iAE91..SE..EFI199008-199106

sub69240-12130

main69240-12130-A0iAE91..SE..EFI199008-199106

sub69240-12130

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

main69293-12040iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

69315BRETAINER, REAR DOOR LOCK SOLENOID

main69315-12010iAE91..SE..EFI199005-199106

main69315-12010iAE9#,CE90,95,EE90..(4D,5D,WG)..(FXG,FXZS,G,GT,LT,SE,XE)198705-199205

69330LOCK ASSY, REAR DOOR, RH

main69330-12170iAE91,CE97,EE97..WG198705-198908

sub69330-12220

main69330-12171iAE91,CE97,EE97..(5D,WG)..(FXZS,L);AE9#,CE90,95,EE90..(DX,FXG,FXL,GT,LT,SE,TX,XE)..(CBR,DSL,EFI)198905-199205

main69330-12190iAE91..SE..EFI198805-198905

sub69330-12220

main69330-12190iAE91..CBR198705-198908

sub69330-12220

main69330-12191iAE91..G..EFI;AE91..SE..EFIS198905-199109

main69330-12191iAE92,95,CE90,95,EE90..GT,SE,XE;AE91..(4D,5D,WG)..(FXG,FXZS,LT,XE)198905-199205

main69330-12191iAE91..SE..EFI199005-199106

main69330-12191iAE91..SE..EFI198909

main69330-12230iCE96,EE96,98198708-199109

69340LOCK ASSY, REAR DOOR, LH

main69340-12170iAE91,CE97,EE97..WG198705-198908

sub69340-12220

main69340-12171iAE91,CE97,EE97..(5D,WG)..(FXZS,L);AE9#,CE90,95,EE90..(DX,FXG,FXL,GT,LT,SE,TX,XE)..(CBR,DSL,EFI)198905-199205

main69340-12190iAE91..SE..EFI198805-198905

sub69340-12220

main69340-12190iAE91..5D..EFI;AE92,95,CE90..GT,SE;AE91..(4D,5D,WG)..(4FC,5F)..CBR198705-198908

sub69340-12220

main69340-12191iAE91..SE..EFI198909

main69340-12191iAE91..5D..EFIS;AE9#,CE90,95,EE90..(FXG,GT,LT,SE,XE)..(CBR,DSL,EFI)198905-199205

main69340-12191iAE91..SE..EFI199005-199106

main69340-12191iAE91..G..EFI;AE91..SE..EFIS198905-199109

main69340-12230iCE96,EE96,98198708-199109

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-12040iCE96,EE96..05S;AE9#,CE90,95,97,EE90,97,98..4D,5D,V,WG198705-199205

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-12050iCE96,EE96..05S;AE9#,CE90,95,97,EE90,97,98..4D,5D,V,WG198705-199205

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-12030iEE98..(3FC,5F)..GL198705-199009

main69736-20090iAE9#,CE90,95,EE90..(4D,5D,WG)..(FXG,FXL,FXZS,G,GT,LT,SE,TX,XE)199005-199205

sub69736-12030

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-90K00-02iAE91,95,CE90,EE90..SE,XE198705-198809

MAROON,TRIM3#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-03iCE97,EE97..DX;AE91,CE90,96,EE90,96,98..DX,GL,STD198705-199205

SHADOW GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-05iCE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198705-198809

DARK BEIGE,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-D0iAE91,95,CE90,95,EE90..SE,XE198905-199106

MAROON,TRIM3#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-E0iCE97,EE97..DX;CE96,EE96,98..DX,GL198809-198908

DARK BEIGE,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-J0iAE91..3FC..XE;AE91..DX,SE,TX;AE95,CE90,EE90198905-199109

DARK BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12040iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

main69749-20010iEE98..(3FC,5F)..GL198705-199205

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-12070iAE9#,CE90,95,97,EE90,97..4D,5D,WG198705-199205

RH,CREAM

main69759-20040iAE9#,CE90,95,97,EE90,97..4D,5D,WG198705-199205

LH,YELLOW

main69759-20050iCE96,EE96,98198708-198908

RH,BROWN

main69759-20100iAE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)198705-199205

LH,RED

main69759-20100iAE91..SE..EFI199005-199106

main69759-20110iAE91..SE..EFI199005-199106

main69759-20110iAE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)198705-199205

RH,BLACK

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-20060iCE96,EE96..05S;AE9#,CE90,95,97,EE90,97,98..4D,5D,V,WG198705-199205

main69759-20070iAE91..5D198705-199205

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-12040iEE98..(3FC,5F)..GL198705-199205

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-12040iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

8511

9015960081

main90159-60081

9015960329

main90159-60329

9015960399

main90159-60399

9015980029

main90159-80029

9016250008

main90162-50008

9018905003

main90189-05003

9018905071

main90189-05071

9018906018

main90189-06018

9151160610

main91511-60610

9165140610

main91651-40610

30 parts on this diagram · 1 diagram in section
