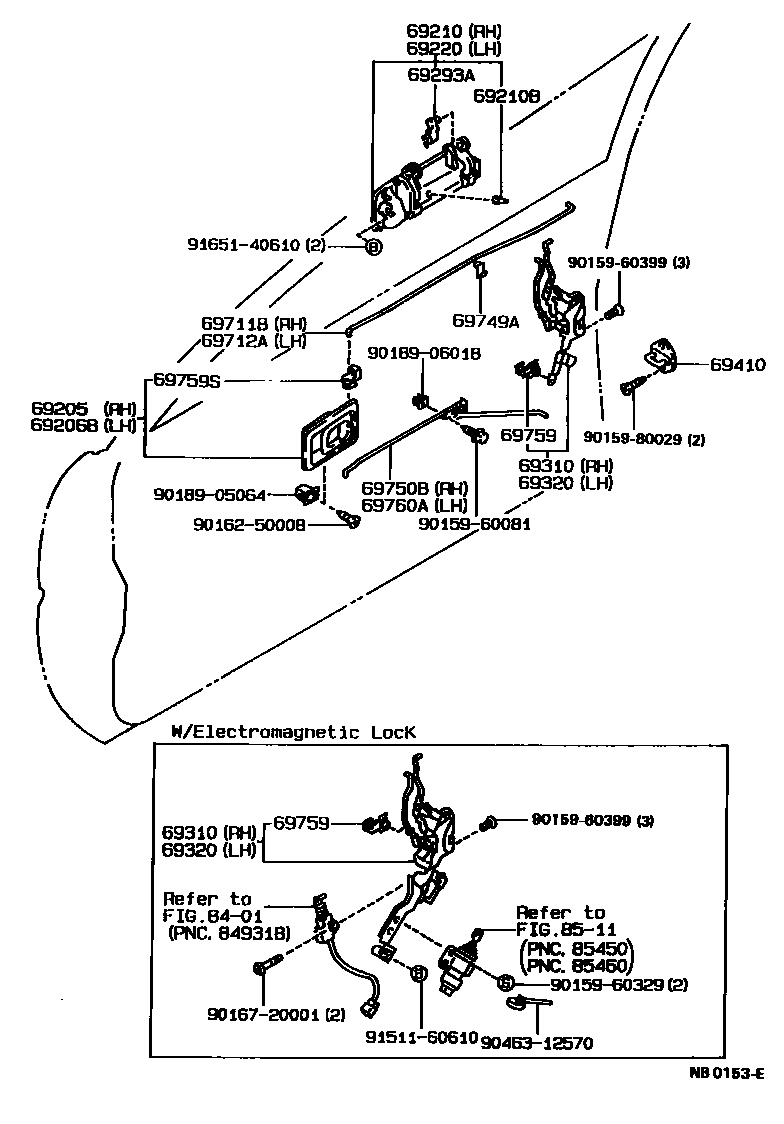

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12120-02iAE91,95,CE90,95..SE198705-199106

MAROON,TRIM3#

sub69205-12120

main69205-12120-02iAE91..SE198905-198908

MAROON,MAROON,TRIM3#

sub69205-12120

main69205-12120-03iAE9#,CE90,95..(4D,5D,WG)..(FXG,FXZS,G,GT,SE)198705-199205

SHADOW GRAY,TRIM1#

sub69205-12120

main69205-12120-04iAE91,95,CE90,95..G,SE198908-199109

BLUE,TRIM8#

sub69205-12120

main69205-12120-05iAE91,95,CE90..(4D,5D)..(FXG,FXZI,SE)198705-198905

DARK BEIGE,TRIM4#

sub69205-12120

main69205-16050-03iAE91,92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

sub69205-16050

main69205-16050-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#

sub69205-16050

main69205-16050-14iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

BLUE,TRIM8#

sub69205-16050

main69206-10040-02iAE91,95,CE90,EE90..XE198705-199109

MAROON,TRIM3#

sub69206-10040

sub69206-10030

main69206-10040-03iCE96,EE96..02S198708-198904

GRAY,TRIM1#

sub69206-10040

sub69206-10030

main69206-10040-05iCE96,EE96..DX..02S198705-198905

DARK BEIGE,TRIM4#

sub69206-10040

sub69206-10030

main69206-10040-13iCE96,EE96..05S;AE91,95,CE90,95,97,EE90,97,98..(4D,5D,V,WG)..(DX,FXL,GL,L,LT,TX,XE)198705-199205

GRAY,TRIM1#

sub69206-10040

sub69206-10030

main69206-10040-34iAE91..3FC..XE;AE91..DX,LT,TX;CE96,EE96..05S;AE95,CE90,95,97,EE90,97,98..DX,GL,L,TX,XE198905-199109

BLUE,TRIM8#

sub69206-10040

sub69206-10030

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69205-10040-02iAE91,95,CE90,EE90..XE198705-199109

MAROON,TRIM3#

sub69205-10040

sub69205-10030

main69205-10040-05iCE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..(4D,5D)..(FXL,TX,XE)198705-198905

DARK BEIGE,TRIM4#

sub69205-10040

sub69205-10030

main69205-10040-13iCE96,EE96..02S198705-199205

GRAY,TRIM1#

sub69205-10040

sub69205-10030

main69205-10040-34iAE91..3FC..XE;AE91..DX,LT,TX;CE96,EE96..05S;AE95,CE90,95,97,EE90,97,98..DX,GL,L,TX,XE198905-199109

BLUE,TRIM8#

sub69205-10040

sub69205-10030

main69206-12120-02iAE91,95,CE90,95..SE198705-199106

MAROON,TRIM3#

sub69206-12120

main69206-12120-02iAE91..SE198905-198908

MAROON,MAROON,TRIM3#

sub69206-12120

main69206-12120-03iAE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)198705-199205

SHADOW GRAY,TRIM1#

sub69206-12120

main69206-12120-04iAE91,95,CE90,95..G,SE198908-199109

BLUE,TRIM8#

sub69206-12120

main69206-12120-05iAE91,95,CE90..(4D,5D)..(FXG,FXZI,SE)198705-198905

DARK BEIGE,TRIM4#

sub69206-12120

main69206-16050-03iAE91,92..3D198705-199205

SHADOW GRAY,TRIM1#

sub69206-16050

main69206-16050-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#

sub69206-16050

main69206-16050-14iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

BLUE,TRIM8#

sub69206-16050

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12100iAE9#,CE90,95,EE90..G,GT,LT,SE,XE198705-199109

main69210-12100iAE91,95,CE90,EE90..XE198805-198905

main69210-12110iAE91,95,CE9#,EE9#..(4D,5D,V,WG)..(CTD,DX,FXG,FXL,FXZS,GL,L,STD,TX)198705-199205

main69210-12120-01iAE91,92..3D198905-199205

BLACK M.,205

sub69210-12120

main69210-12120-02iAE91,92..3D198905-199012

SUPER RED 2,3E5

sub69210-12120

main69210-12120-04iAE91,92..3D198905-199108

DARK BLUE MICA M.,8E9

sub69210-12120

main69210-12120-07iAE91,92..3D198905-199205

GRAYISH GREEN M.,6K6

sub69210-12120

main69210-12120-08iAE91,92..3D198905-199008

SUPER WHITE 2,040

sub69210-12120

main69210-12120-A0iAE91..SE..EFIS199008-199106

sub69210-12120

main69210-12120-A0iAE91..SE..EFIS199008-199106

sub69210-12120

main69210-12120-A0iAE91,92..3D199008-199205

SUPER WHITE 2,040

sub69210-12120

main69210-12120-D1iAE91,92..3D199012-199205

SUPER RED 2,3E5

sub69210-12120

main69210-12120-J1iAE9#..3D199106-199205

DK BLUE MICA M,8J7

sub69210-12120

main69210-12130-01iAE92..FXGT198901-198905

sub69210-12120

main69210-12150-08iAE91..SE..EFI198909-199106

sub69210-12120

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03014iAE91,92,EE90..3D198705-198808

sub90541-04014

main90541-04014iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12100iAE91,92..4D..EFI198705-199109

main69220-12100iAE91,95,CE90,EE90..XE198805-198905

main69220-12110iAE91..5D198705-199205

main69220-12120-01iAE91,92..3D198905-199205

BLACK M.,205

sub69220-12120

main69220-12120-02iAE91,92..3D198905-199012

SUPER RED 2,3E5

sub69220-12120

main69220-12120-04iAE91,92..3D198905-199108

DARK BLUE MICA M.,8E9

sub69220-12120

main69220-12120-07iAE91,92..3D198905-199205

GRAYISH GREEN M.,6K6

sub69220-12120

main69220-12120-08iAE91,92..3D198905-199008

SUPER WHITE 2,040

sub69220-12120

main69220-12120-A0iAE91..SE..EFI199008-199106

sub69220-12120

main69220-12120-A0iAE91..SE..EFI199008-199106

sub69220-12120

main69220-12120-A0iAE91,92..3D199008-199205

SUPER WHITE 2,040

sub69220-12120

main69220-12120-D1iAE91,92..3D199012-199205

SUPER RED 2,3E5

sub69220-12120

main69220-12120-J1iAE9#..3D199106-199205

DK BLUE MICA M,8J7

sub69220-12120

main69220-12130-01iAE92..FXGT198901-198905

sub69220-12120

main69220-12150-08iAE91..SE..EFI198909

sub69220-12120

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAE9#198705-199205

main69293-12040iAE9#,CE9#,EE9#198705-199205

69310LOCK ASSY, FRONT DOOR, RH

main69310-12220iAE91..5D..EFI;AE91..(4D,5D,WG)..CBR;AE92,95,CE9#,EE9#..4D,5D,V,WG198705-199109

sub69310-12380

main69310-12221iAE91,CE97,EE97..(5D,WG)..(FXZS,L);AE9#,CE90,95,EE90..(DX,FXG,FXL,GT,LT,SE,TX,XE)..(CBR,DSL,EFI)198905-199205

main69310-12280iAE91..5D..EFI;AE92,95,CE90..GT,SE;AE91..(4D,5D,WG)..(4FC,5F)..CBR198705-198908

sub69310-12380

main69310-12280iAE91..SE..EFI198805-198905

sub69310-12380

main69310-12281iAE91..5D..EFIS;AE9#,CE90,95,EE90..(FXG,GT,LT,SE,XE)..(CBR,DSL,EFI)198905-199205

main69310-12281iAE91..G198908-199109

main69310-12290iAE91,92,EE90..3D198705-198905

sub69310-12310

main69310-12291iAE91,92..3D198905-199205

main69310-12310iAE91,92..3D..(4FC,5F)198705-198905

main69310-12311iAE91,92..3D..(FXGT,FXZS)198905-199205

main69310-12430iAE91..SE..EFI199005-199106

main69310-12430iAE91..SE..EFIS198905-199106

main69310-12430iAE91..SE..EFI198909

69320LOCK ASSY, FRONT DOOR, LH

main69320-12240iAE91..5D..EFI;AE91..(4D,5D,WG)..CBR;AE92,95,CE9#,EE9#..4D,5D,V,WG198705-199109

sub69320-12400

main69320-12241iAE91,CE97,EE97..(5D,WG)..(FXZS,L);AE9#,CE90,95,EE90..(DX,FXG,FXL,GT,LT,SE,TX,XE)..(CBR,DSL,EFI)198905-199205

main69320-12300iAE91,92,EE90..3D198705-198905

sub69320-12320

main69320-12301iAE91,92..3D198905-199205

main69320-12310iAE91,92..3D..(4FC,5F)198705-198905

sub69320-12320

main69320-12311iAE91,92..3D..(FXGT,FXZS)198905-199205

main69320-12380iAE91..SE..EFI198805-198905

sub69320-12400

main69320-12380iAE91..5D..EFI;AE92,95,CE90..GT,SE;AE91..(4D,5D,WG)..(4FC,5F)..CBR198705-198908

sub69320-12400

main69320-12381iAE91..5D..EFIS;AE9#,CE90,95,EE90..(FXG,GT,LT,SE,XE)..(CBR,DSL,EFI)198905-199205

main69320-12381iAE91..SE..EFI198909

main69320-12381iAE91..SE..EFI199005-199106

main69320-12381iAE91..G..EFI;AE91..SE..EFIS198905-199109

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iAE9#198705-199205

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-12100iAE91..5D198705-199205

main69711-12110iAE91,92,EE90..3D198705-199205

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-12110iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

main69712-12120iAE91,92,EE90..3D198705-199205

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20010iAE9#,CE9#,EE9#198705-199205

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-12020iAE91,92,EE90..3D198705-199205

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iAE9#,CE90,97,EE90,97..4D,5D,WG198705-199205

LH,YELLOW

main69759-20050iAE9#,CE90,97,EE90,97..4D,5D,WG198705-199205

RH,BROWN

main69759-20100iAE91,92,EE90..3D198705-199205

RH,RED

main69759-20100iAE91,92..3D..(FXGT,FXZS)198705-199205

main69759-20110iAE91,92,EE90..3D198705-199205

LH,BLACK

main69759-20110iAE91,92..3D..(FXGT,FXZS)198705-199205

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iAE91..5D198705-199205

main69759-20070iCE96,EE96..02S198705-199205

main69759-22040iAE91,92,EE90..3D198705-199205

main69759-22050iAE91,92,EE90..3D198705-199205

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-12020iAE91,92,EE90..3D198705-199205

8401

8511

9015960081

main90159-60081

9015960329

main90159-60329

9015960399

main90159-60399

9015980029

main90159-80029

9016250008

main90162-50008

9016720001

main90167-20001

9018905064

main90189-05064

9018906018

main90189-06018

9046312570

main90463-12570

9151160610

main91511-60610

9165140610

main91651-40610

29 parts on this diagram · 2 diagrams in section
