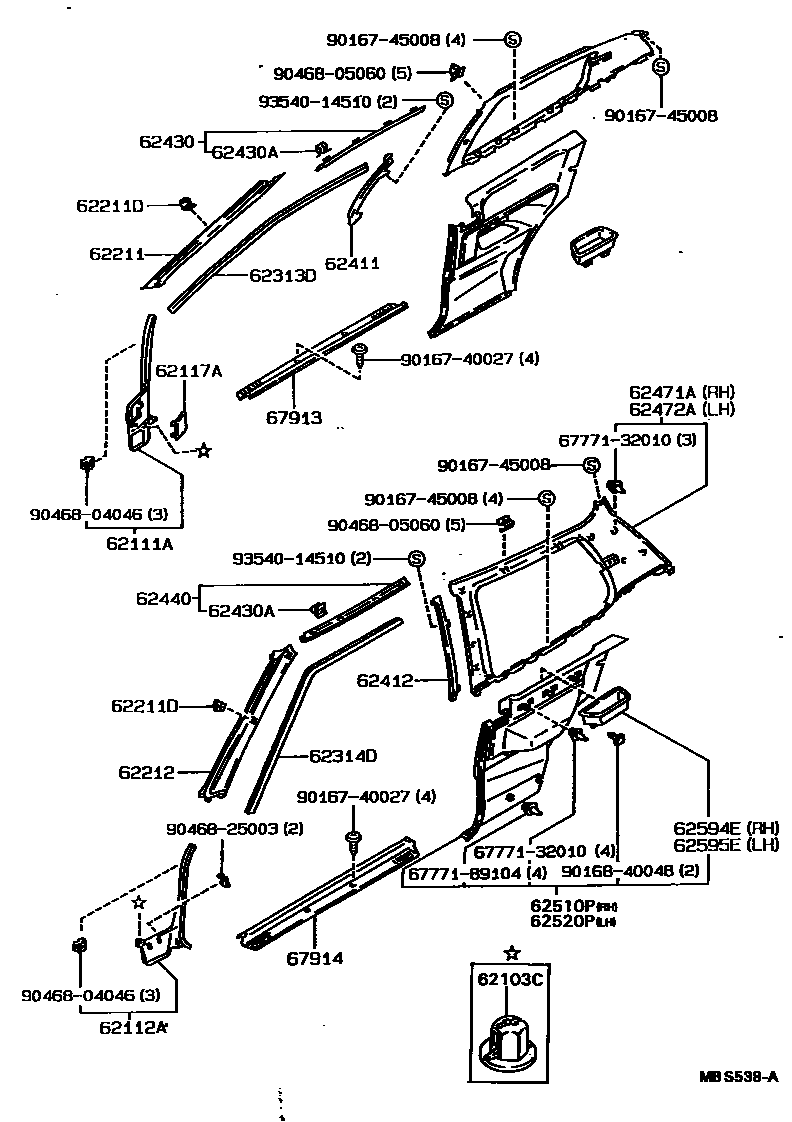

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1 0004 1 0005 1

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05050-01iAE91..4F..XE198909-199009

BLACK,TRIM1#,3#,8#

sub90467-05050

main90467-05050-01iAE91..4F..XE198909-199009

BLACK,TRIM1#

sub90467-05050

main90467-05050-01iAE91..4F..XE198909-199009

BLACK,TRIM1#,8#

sub90467-05050

main90467-05050-01iAE95,CE90,95,EE90..SE,XE;AE91..(3FC,4FC,5F)..(SE,XE)198909-199009

BLACK,TRIM1#,3#

sub90467-05050

main90467-05050-01iAE91..4F..XE199009-199205

sub90467-05050

main90467-05050-01iAE91..4F..XE199009-199205

sub90467-05050

main90467-05050-01iAE91..4F..XE199009-199205

sub90467-05050

main90467-05050-01iAE91..4F..XE199009-199205

sub90467-05050

main90467-08160iAE9#,CE9#,EE9#199108-199205

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-12140-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub62101-12140

main62101-12140-03iAE9#,CE9#,EE9#198705-199205

SHADOW GRAY,TRIM1#

sub62101-12140

main62101-12140-04iAE91..3FC..XE;AE92,95,CE90,EE90..DX,FXGTV,SE,TX,XE;AE91..(3D,4D)..(DX,FXV,FXVS,FXZS,SE,TX)198905-199205

DARK BLUE,TRIM8#

sub62101-12140

main62101-12140-05iCE96,97,EE96,97,98..DX,GL198705-198908

DARK BEIGE,TRIM4#

sub62101-12140

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-12140-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub62102-12140

main62102-12140-03iAE9#,CE9#,EE9#198705-199205

SHADOW GRAY,TRIM1#

sub62102-12140

main62102-12140-04iAE91..3FC..XE;AE92,95,CE9#,EE9#..CTD,DX,FXGTV,GL,L,SE,TX,XE;AE91..(3D,4D,WG)..(DX,FXV,FXVS,FXZS,G,LT,SE,TX)198905-199205

DARK BLUE,TRIM8#

sub62102-12140

main62102-12140-05iCE96,97,EE96,97,98..DX,GL198705-198908

DARK BEIGE,TRIM4#

sub62102-12140

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-12090-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub62117-12090

main62117-12090-03iAE9#,CE9#,EE9#198705-199205

SHADOW GRAY,TRIM1#

sub62117-12090

main62117-12090-04iAE91..3FC..XE;AE92,95,CE9#,EE9#..CTD,DX,FXGTV,GL,L,SE,TX,XE;AE91..(3D,4D,WG)..(DX,FXV,FXVS,FXZS,G,LT,SE,TX)198905-199205

DARK BLUE,TRIM8#

sub62117-12090

main62117-12090-05iCE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE198705-198908

DARK BEIGE,TRIM4#

sub62117-12090

62211GARNISH, FRONT PILLAR, RH

main62211-12190-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub62211-12190

main62211-12190-03iAE9#,CE90,95,EE90198705-199205

SHADOW GRAY,TRIM1#

sub62211-12190

main62211-12190-04iAE9#..(3D,WG)..(FXGTV,FXV,FXVS,FXZS,G,LT)198905-199205

DARK BLUE,TRIM8#

sub62211-12190

main62211-12190-05iAE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE198705-198905

DARK BEIGE,TRIM4#

sub62211-12190

main62211-13030-03iCE96,97,EE96,97,98198708-199109

SHADOW GRAY,TRIM1#

main62211-13030-04iCE96,97,EE96,97,98..CTD,DX,GL,L198908-199109

DARK BLUE,TRIM8#

main62211-13030-05iCE96,97,EE96,97,98..DX,GL198708-198908

DARK BEIGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90468-05060iAE9#,CE9#,EE9#198705-199205

62212GARNISH, FRONT PILLAR, LH

main62212-12190-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub62212-12190

main62212-12190-03iAE9#198705-199205

SHADOW GRAY,TRIM1#

sub62212-12190

main62212-12190-04iAE9#..(3D,WG)..(FXGTV,FXV,FXVS,FXZS,G,LT)198905-199205

DARK BLUE,TRIM8#

sub62212-12190

main62212-12190-05iAE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE198705-198905

DARK BEIGE,TRIM4#

sub62212-12190

main62212-13030-03iCE96,97,EE96,97,98198708-199109

SHADOW GRAY,TRIM1#

main62212-13030-04iCE96,97,EE96,97,98..CTD,DX,GL,L198908-199109

DARK BLUE,TRIM8#

main62212-13030-05iCE96,97,EE96,97,98..DX,GL198708-198908

DARK BEIGE,TRIM4#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-12130-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub62333-12100

main62313-12130-03iCE96,EE96,98;AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXG,FXL,FXZS,G,L,LT,TX)198705-199205

SHADOW GRAY,TRIM1#

sub62333-12100

main62313-12130-04iAE91..3FC..XE;AE91..DX,SE,TX;AE95,CE90,EE90198905-199109

DARK BLUE,TRIM8#

sub62333-12100

main62313-12130-05iCE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198705-198908

DARK BEIGE,TRIM4#

sub62333-12100

main62313-12160-03iAE91,92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

sub62333-12100

main62313-12160-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

sub62333-12100

main62313-12160-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#

sub62333-12100

62314DTRIM, FRONT DOOR OPENING, LH

main62313-12130-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub62333-12100

main62313-12130-03iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

SHADOW GRAY,TRIM1#

sub62333-12100

main62313-12130-04iAE91..3FC..XE;AE91..DX,SE,TX;AE95,CE90,EE90198905-199109

DARK BLUE,TRIM8#

sub62333-12100

main62313-12130-05iCE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198705-198908

DARK BEIGE,TRIM4#

sub62333-12100

main62313-12160-03iAE91,92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

sub62333-12100

main62313-12160-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

sub62333-12100

main62313-12160-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#

sub62333-12100

62411GARNISH, CENTER PILLAR, RH

main62411-12430-03iAE91,92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

sub62411-12430

main62411-12430-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

sub62411-12430

main62411-12430-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#

sub62411-12430

62412GARNISH, CENTER PILLAR, LH

main62412-12430-03iAE91,92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

sub62412-12430

main62412-12430-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

sub62412-12430

main62412-12430-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#

sub62412-12430

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62431-12090-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

main62431-12090-03iAE9#,CE90,95,EE90..4D198705-199106

SHADOW GRAY,TRIM1#

main62431-12090-04iAE91..3FC..XE;AE91..DX,SE,TX;AE95,CE90,95,EE90198905-199106

DARK BLUE,TRIM8#

main62431-12090-05iAE91,95,CE90,EE90..SE,TX,XE198705-198905

DARK BEIGE,TRIM4#

main62431-12110-03iAE91,92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

main62431-12110-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

main62431-12110-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#

main62431-12120-03iAE91,EE90..5D198705-199205

SHADOW GRAY,TRIM1#

main62431-12120-05iAE91,EE90..5D198705-198905

DARK BEIGE,TRIM4#

main62431-13010-03iAE91..WG198708-199109

SHADOW GRAY,TRIM1#

main62431-13010-04iAE91..WG198908-199109

DARK BLUE,TRIM8#

62430ACLIP, ROOF SIDE RAIL GARNISH

main90468-05017iAE91,92,EE90..3D198705-199205

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62432-12070-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub62432-12070

main62432-12070-03iAE9#,CE90,95,EE90..4D198705-199106

SHADOW GRAY,TRIM1#

sub62432-12070

main62432-12070-04iAE91..3FC..XE;AE91..DX,SE,TX;AE95,CE90,95,EE90198905-199106

DARK BLUE,TRIM8#

sub62432-12070

main62432-12070-05iAE91,95,CE90,EE90..SE,TX,XE198705-198905

DARK BEIGE,TRIM4#

sub62432-12070

main62432-12090-03iAE91,92..3D198705-199205

SHADOW GRAY,TRIM1#

main62432-12090-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

main62432-12090-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#

main62432-12100-03iAE91,EE90..5D198705-199205

SHADOW GRAY,TRIM1#

main62432-12100-05iAE91,EE90..5D198705-198905

DARK BEIGE,TRIM4#

main62432-13010-03iAE91..WG198708-199109

SHADOW GRAY,TRIM1#

main62432-13010-04iAE91..WG198908-199109

DARK BLUE,TRIM8#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-12210-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub62471-12210

main62471-12210-03iAE9#,CE90,95,EE90..4D198705-199106

SHADOW GRAY,TRIM1#

sub62471-12210

main62471-12210-04iAE91..3FC..XE;AE91..DX,SE,TX;AE95,CE90,95,EE90198905-199106

DARK BLUE,TRIM8#

sub62471-12210

main62471-12210-05iAE91,95,CE90,EE90..SE,TX,XE198705-198905

DARK BEIGE,TRIM4#

sub62471-12210

main62471-12380-02iAE91,95,CE90..SE198705-199106

main62471-12380-03iAE9#,CE90..GT,SE198705-199106

main62471-12380-04iAE91,95,CE90..SE198905-199106

main62471-12380-05iAE91,95,CE90..SE198705-198905

main62471-12470-03iAE91,92,EE90..3D198705-198905

SHADOW GRAY,TRIM1#

sub62471-12470

main62471-12470-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#

sub62471-12470

main62471-12490-03iAE91,EE90..5D198705-199205

SHADOW GRAY,TRIM1#

sub62471-12490

main62471-12490-05iAE91,EE90..5D198705-198905

DARK BEIGE,TRIM4#

sub62471-12490

main62471-12610-03iAE91,92..3D198905-199205

SHADOW GRAY,TRIM1#

main62471-12610-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-12220-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

main62472-12220-03iAE9#,CE90,95,EE90..4D198705-199106

SHADOW GRAY,TRIM1#

main62472-12220-04iAE91..3FC..XE;AE91..DX,SE,TX;AE95,CE90,95,EE90198905-199106

DARK BLUE,TRIM8#

main62472-12220-05iAE91,95,CE90,EE90..SE,TX,XE198705-198905

DARK BEIGE,TRIM4#

main62472-12380-02iAE91,95,CE90..SE198705-199106

main62472-12380-03iAE9#,CE90..GT,SE198705-199106

main62472-12380-04iAE91,95,CE90..SE198905-199106

main62472-12380-05iAE91,95,CE90..SE198705-198905

main62472-12460-03iAE91,92,EE90..3D198705-198905

SHADOW GRAY,TRIM1#

main62472-12460-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#

main62472-12480-03iAE91,EE90..5D198705-199205

SHADOW GRAY,TRIM1#

sub62472-12480

main62472-12480-05iAE91,EE90..5D198705-198905

DARK BEIGE,TRIM4#

sub62472-12480

main62472-12610-03iAE91,92..3D198905-199205

SHADOW GRAY,TRIM1#

main62472-12610-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-1A220-03iAE91,EE90..3D..(FXD,FXL)198705-198905

SHADOW GRAY,TRIM1#

main62510-1A220-05iAE91,EE90..3D..(FXD,FXL)198705-198905

DARK BEIGE,TRIM4#

main62510-1A340-03iAE91..3D..(FXG,FXZI)198705-198905

SHADOW GRAY,TRIM1#

main62510-1A340-05iAE91..3D..(FXG,FXZI)198705-198905

DARK BEIGE,TRIM4#

main62510-1A350-03iAE92..FXGT198705-198905

SHADOW GRAY,TRIM1#

main62510-1A420-03iAE91,92..FXGTV,FXV,FXVS198905-199205

SHADOW GRAY,TRIM1#

main62510-1A420-04iAE91,92..FXGTV,FXV,FXVS198905-199205

DARK BLUE,TRIM8#

main62510-1A430-03iAE91..3D..FXZS198905-199205

SHADOW GRAY,TRIM1#

main62510-1A430-04iAE91..3D..FXZS198905-199205

DARK BLUE,TRIM8#

main62510-1A460-03iAE92..FXGT198905-199205

SHADOW GRAY,TRIM1#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-1A200-03iAE91,EE90..3D..(FXD,FXL)198705-198905

SHADOW GRAY,TRIM1#

main62520-1A200-05iAE91,EE90..3D..(FXD,FXL)198705-198905

DARK BEIGE,TRIM4#

main62520-1A320-03iAE91..3D..(FXG,FXZI)198705-198905

SHADOW GRAY,TRIM1#

main62520-1A320-05iAE91..3D..(FXG,FXZI)198705-198905

DARK BEIGE,TRIM4#

main62520-1A330-03iAE92..FXGT198705-198905

SHADOW GRAY,TRIM1#

main62520-1A400-03iAE91,92..FXGTV,FXV,FXVS198905-199205

SHADOW GRAY,TRIM1#

main62520-1A400-04iAE91,92..FXGTV,FXV,FXVS198905-199205

DARK BLUE,TRIM8#

main62520-1A410-03iAE91..3D..FXZS198905-199205

SHADOW GRAY,TRIM1#

main62520-1A410-04iAE91..3D..FXZS198905-199205

DARK BLUE,TRIM8#

main62520-1A440-03iAE92..FXGT198905-199205

SHADOW GRAY,TRIM1#

62594EPOCKET, QUARTER TRIM, RH

main62594-12060-03iAE91,92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

main62594-12060-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

main62594-12060-05iAE91,EE90..3D..(FXD,FXL)198705-198905

DARK BEIGE,TRIM4#

62595EPOCKET, QUARTER TRIM, LH

main62594-12060-03iAE91,92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

main62594-12060-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

main62594-12060-05iAE91,EE90..3D..(FXD,FXL)198705-198905

DARK BEIGE,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12160-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub67913-12160

main67913-12160-03iCE96,97,EE96,97,98;AE91,95,CE90,EE90..G,SE,XE198705-199205

SHADOW GRAY,TRIM1#

sub67913-12160

main67913-12160-04iAE95,CE90,EE90..SE,XE;AE91..(3FC,4FC,5F)..(SE,XE)198905-199109

DARK BLUE,TRIM8#

sub67913-12160

main67913-12160-05iCE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198705-198908

DARK BEIGE,TRIM4#

sub67913-12160

main67913-12170-03iAE91,92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

sub67913-12170

main67913-12170-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

sub67913-12170

main67913-12170-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#

sub67913-12170

67914PLATE, FRONT DOOR SCUFF, LH

main67913-12160-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub67913-12160

main67913-12160-03iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

SHADOW GRAY,TRIM1#

sub67913-12160

main67913-12160-04iAE91..3FC..XE;AE91..DX,G,LT,SE,TX;AE95,CE9#,EE9#..CTD,DX,GL,L,SE,TX,XE198905-199109

DARK BLUE,TRIM8#

sub67913-12160

main67913-12160-05iCE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198705-198908

DARK BEIGE,TRIM4#

sub67913-12160

main67913-12170-03iAE91,92,EE90..3D198705-199205

SHADOW GRAY,TRIM1#

sub67913-12170

main67913-12170-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

sub67913-12170

main67913-12170-05iAE91,EE90..3D198705-198905

DARK BEIGE,TRIM4#

sub67913-12170

6777132010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32010

6777189104WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-89104

9016740027

main90167-40027

9016745008

main90167-45008

9016840048

main90168-40048

9046804046

main90468-04046

9046805060

main90468-05060

9046825003

main90468-25003

9354014510

main93540-14510

31 parts on this diagram · 5 diagrams in section
