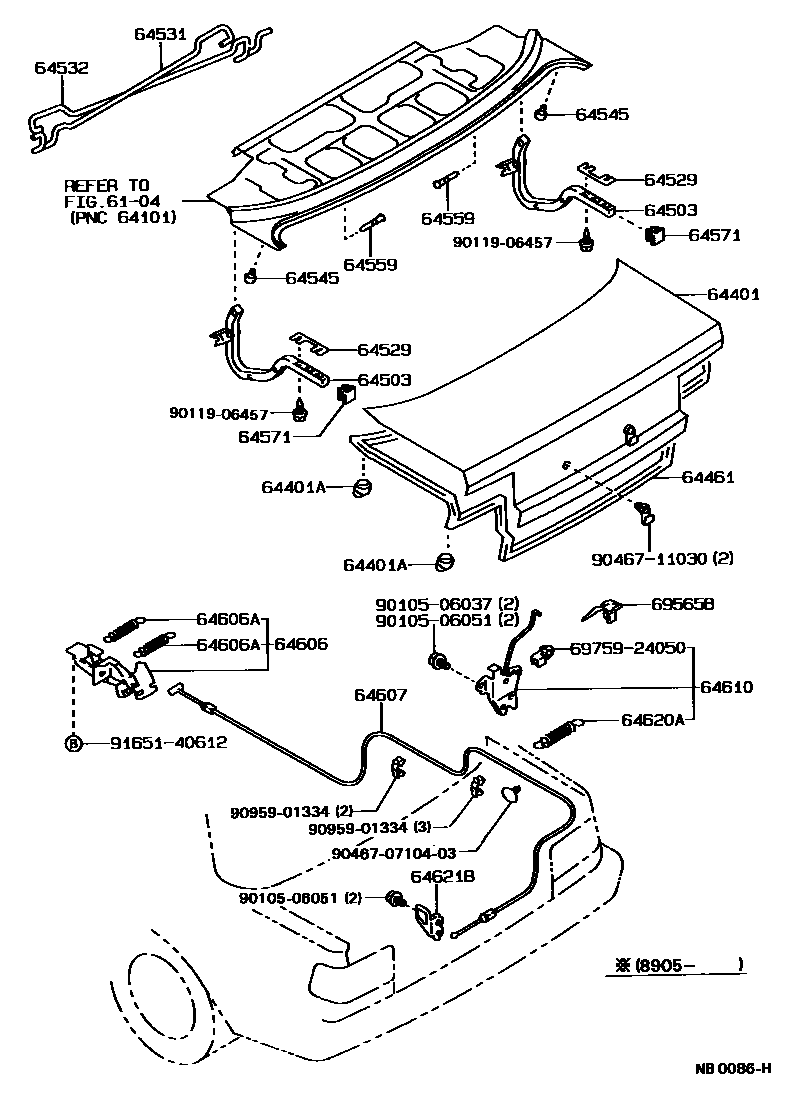

LUGGAGE COMPARTMENT DOOR & LOCK

6104

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-1A330iAE91,95,CE90,EE90..DX,TX198705-198910

sub64401-1A332

main64401-1A332iAE91,95,CE90,95,EE90..DX,TX198910-199106

main64401-1A340iAE9#,CE90,EE90..GT,SE,XE198705-198910

sub64401-1A342

main64401-1A342iAE9#,CE90,95,EE90..GT,SE,XE198910-199106

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main64459-12010iAE9#,CE90,95,EE90..4D198911-199106

main90541-06076iAE9#,CE90,95,EE90..4D198705-199106

sub90541-06056

main90541-20002iAE9#,CE90,95,EE90..4D198705-198911

sub64459-12010

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12350iAE9#,CE90,95,EE90..4D198705-199106

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-12030iAE9#,CE90,95,EE90..4D198705-199106

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010iAE9#,CE90,95,EE90..4D198705-199106

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12240iAE91,95,CE90,95,EE90..DX,TX198705-199106

main64531-12250iAE9#,CE90,95,EE90..GT,SE,XE198705-199106

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12230iAE91,95,CE90,95,EE90..DX,TX198705-199106

main64532-12240iAE9#,CE90,95,EE90..GT,SE,XE198705-199106

64545CUSHION, LUGGAGE DOOR HINGE

main90541-09014iAE9#,CE90,95,EE90..4D198705-199106

64559PIN, LUGGAGE DOOR HINGE

main64559-32010iAE9#,CE90,95,EE90..4D198705-199106

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-30020iAE9#,CE90,95,EE90..4D198710-199106

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-12060iAE9#,CE90,95,EE90..GT,SE,TX,XE198705-199106

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09034iAE9#,CE90,EE90..GT,SE,TX,XE198705-199205

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12350iAE91,92..4D..EFI198705-198906

sub64607-12351

sub90467-07104

main64607-12351iAE9#,CE90,95,EE90..GT,SE,TX,XE198906-199106

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12100iAE9#,CE90,95,EE90..4D198705-199106

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-07013iAE9#,CE90,EE90..4D198705-198905

main90506-07013iAE9#,CE90,95,EE90..4D198905-199106

WD=0.65,CW=12.5

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-12070iAE9#,CE90,95,EE90..4D198705-199106

69565BFUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69565-12040iAE9#,CE90,95,EE90..4D198705-199106

6975924050SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050

9010506037

main90105-06037

9010506051

main90105-06051

9011906457

main90119-06457

904670710403

main90467-0710403

9046711030

main90467-11030

9095901334

main90959-01334

9165140612

main91651-40612

26 parts on this diagram · 1 diagram in section
