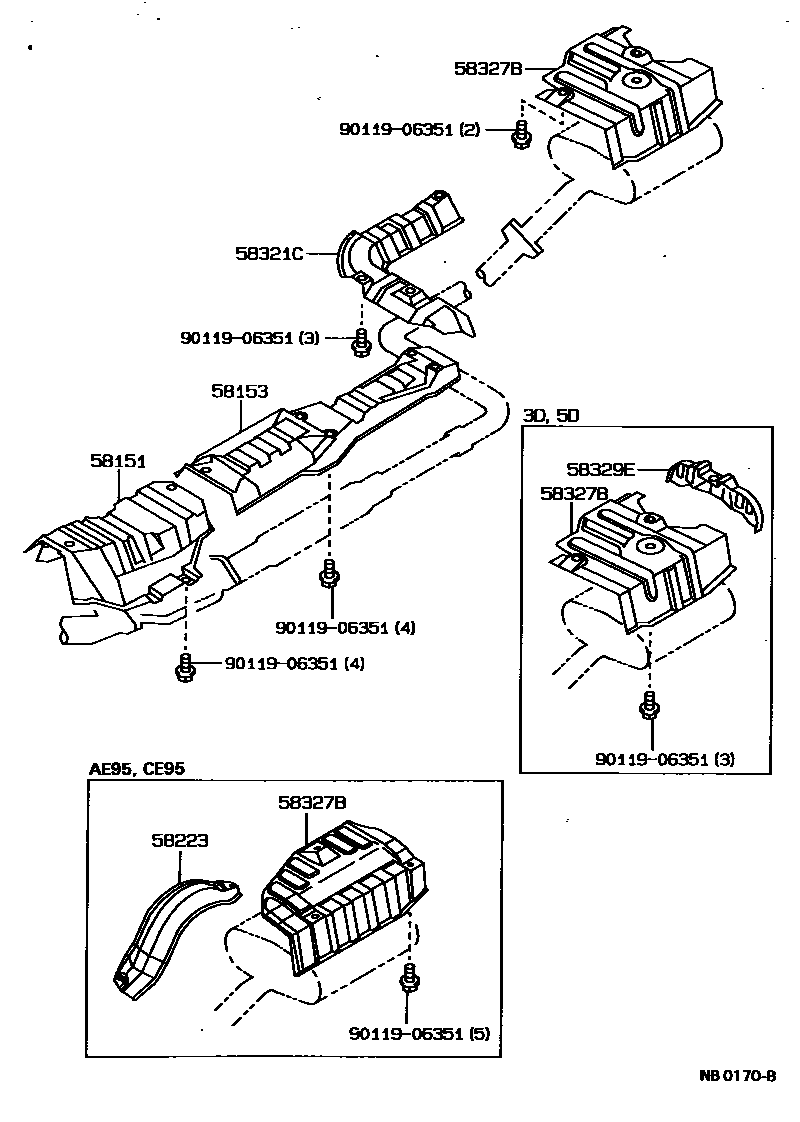

Toyota COROLLA — FLOOR INSULATOR
58151INSULATOR, FRONT FLOOR HEAT, NO.1
58153INSULATOR, FRONT FLOOR HEAT, NO.2
58223INSULATOR, CENTER FLOOR HEAT, NO.2
58321CINSULATOR, REAR FLOOR HEAT, FRONT
58327BINSULATOR, MAIN MUFFLER HEAT
58329EINSULATOR, MAIN MUFFLER HART, REAR UPPER
9011906351
7 parts on this diagram · 1 diagram in section
FLOOR INSULATOR for Toyota COROLLA
This section contains 7 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota COROLLA. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, CENTER FLOOR HEAT, NO.2, INSULATOR, REAR FLOOR HEAT, FRONT, INSULATOR, MAIN MUFFLER HEAT.
