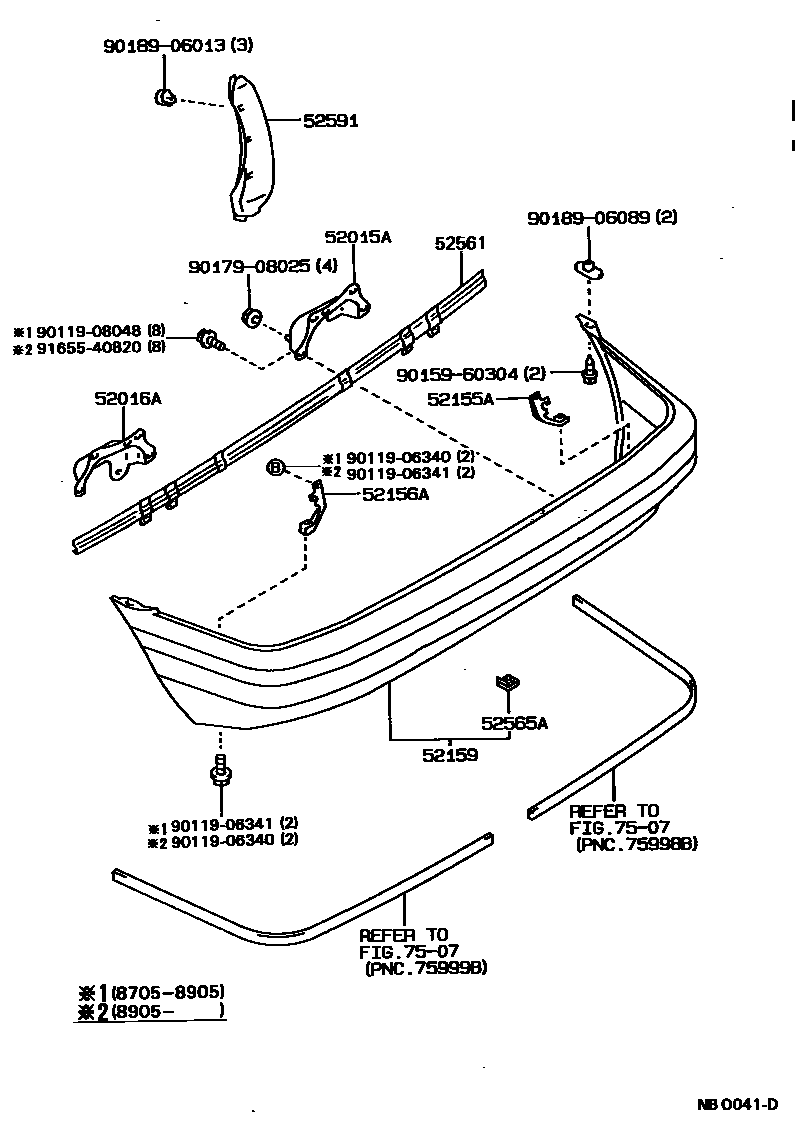

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12230iAE95198710-198802

main52015-12231iAE95198802-198905

main52015-12280iAE95,CE95198905-199106

main52015-13070iCE96,97,EE96,97,98198708-199109

main52015-13080iAE91..WG198708-199109

main52181-12280iAE91,92,CE90,EE90..4D198705-198905

main52181-12310iAE91,92,EE90..3D,5D198705-198905

main52181-12370iAE91,92,CE90,EE90..4D198908-199106

main52181-12380iAE91,92..3D,5D198905-199205

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-12220iAE95198710-198802

main52016-12221iAE95198802-198905

main52016-12250iAE95,CE95198905-199106

main52016-13060iCE96,97,EE96,97,98198708-199109

main52016-13070iAE91..WG198708-199109

main52182-12230iAE91,92,CE90,EE90..4D198705-198905

main52182-12260iAE91,92,EE90..3D,5D198705-198905

main52182-12290iAE91..DX; CE90,EE90198905-198908

main52182-12300iAE91,92..3D,5D198905-199205

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12150iAE9#,CE90,EE90..4D198705-198905

main52155-12170iAE91,92,EE90..3D,5D198705-198905

main52155-12190iAE91,92..3D,5D198905-199205

main52155-13030iAE91,CE96,97,EE96,97,98..V,WG198708-199109

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12140iAE91,92,CE90,EE90..4D198705-198905

main52156-12150iAE91,92..3D,5D198905-199205

main52156-12160iAE91,92,EE90..3D,5D198705-198905

main52156-12170iAE95,CE95198710-199106

main52156-13030iAE91,CE96,97,EE96,97,98..V,WG198708-199109

52159COVER, REAR BUMPER

main52105-12050iAE91,92,EE90..3D,5D198705-198905

main52105-12902-01iAE92..FXGT198901-198905

main52105-12902-02iAE91,92..FXGT,FXZI; AE91..FXG198705-198905

main52105-12902-03iAE91,92..FXGT,FXZI; AE91..FXG198705-198905

main52105-12902-05iAE91,92..FXGT,FXZI; AE91..FXG198705-198905

main52105-12902-08iAE91,92..FXGT,FXZI; AE91..FXG198705-198905

main52105-12903-02iAE91,EE90..FXG,FXL198705-198905

SUPER RED 2,3E5

main52105-12903-03iAE91,EE90..FXG,FXL198705-198905

GRAY M,168

main52105-12903-05iAE91,EE90..FXG,FXL198705-198905

M BEIGE M,4H6

main52105-12903-08iAE91,EE90..FXG,FXL198705-198905

SUPER WHITE 2,040

main52159-12720-02iAE9#,CE90,EE90..GT,SE,XE198705-198905

SUPER RED 2,3E5

main52159-12720-03iAE9#,CE90,EE90..GT,SE,XE198705-198905

GRAY M,168

main52159-12720-05iAE91,95,CE90,EE90..SE,XE198705-198905

M BEIGE M,4H6

main52159-12720-08iAE9#,CE90,EE90..GT,SE,XE198705-198905

SUPER WHITE 2,040

main52159-12720-12iAE91,95,CE90,EE90..SE,XE198708-198905

RED MICA,3H4

main52159-12720-15iAE91,95,CE90..SE198705-198805

BEIGE M,25E

main52159-12830iAE9#,CE90,EE90..4D198705-198905

main52159-13020iAE91,CE96,97,EE96,97,98..V,WG198708-199109

main52159-13030-03iAE91..G..CBR; AE91..WG..EFI198708-199109

SILVER M,23E; SILVER M,23E ,24M

main52159-13030-08iAE91..WG198708-199109

SUPER WHITE 2,040

main52159-1A210iAE91,92,CE90,EE90..4D198905-199106

main52159-1A220-02iAE9#..GT,SE,TX,XE; CE90,EE90..SE,TX,XE198905-199205

RED MICA,3H4

main52159-1A220-03iAE95,CE95198905-199106

GRAY M,168

main52159-1A220-04iAE9#..GT,SE,TX,XE; CE90,EE90..SE,TX,XE198905-199205

DARK BLUE MICA M,8E9

main52159-1A220-05iAE91..SE,TX,XE; AE95; CE90,EE90..SE,TX,XE198905-199205

LIGHT BEIGE M,4K1

main52159-1A220-07iAE9#..GT,SE,TX,XE; CE90,EE90..SE,TX,XE198905-199205

GRAYISH GREEN M,6K6

main52159-1A220-08iAE9#..GT,SE,TX,XE; CE90,EE90..SE,TX,XE198905-199205

SUPER WHITE 2,040

main52159-1A220-12iAE91,95,CE90,95,EE90..SE,TX,XE; CE95198905-199004

DARK ROSE M,3J1

main52159-1A230-01iAE91,92..3D,5D198905-199205

BLACK M,205

main52159-1A230-02iAE91,92..3D,5D198905-199205

SUPER RED 2,3E5

main52159-1A230-08iAE91,92..3D,5D198905-199205

SUPER WHITE 2,040

main52159-1A280-07iAE91,92..3D; AE91,92..3D,5D198905-199205

main52159-1A310-08iAE91,95,CE90..SE198901-198905

main52159-1A360-05iAE91,92..3D198905-199106

main52159-1A370-08iAE91..SE..EFI199010-199106

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-12100iAE9#..4D; CE90,95,EE90198905-199106

main52561-12120iAE91,92..3D,5D198905-199205

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040×2iAE9#,CE90,EE90..4D198705-198805

main52565-12100×2iAE9#,CE90,EE90..4D198705-198905

main52565-12110iAE91,EE90..4D; AE92,CE90..4D198705-198805

main52565-12160iAE9#,CE90,EE90..4D198805-198905

main52565-16020×8iAE9#..3D,4D,5D198905-199205

52591SEAL, REAR BUMPER SIDE, RH

main52591-12050iAE9#,CE90,EE90..4D198705-198905

main52591-12051iAE91..DX; AE95; CE90,EE90198905-198908

main52591-12060iAE91,92,EE90..3D,5D198705-199205

7507BODY STRIPE

→ Go to FIG 75-07

9011906340

main90119-06340

9011906341

main90119-06341

9011908048

main90119-08048

9015960304

main90159-60304

9017908025

main90179-08025

9018906013

main90189-06013

9018906089

main90189-06089

9165540820

main91655-40820

17 parts on this diagram · 5 diagrams in section
