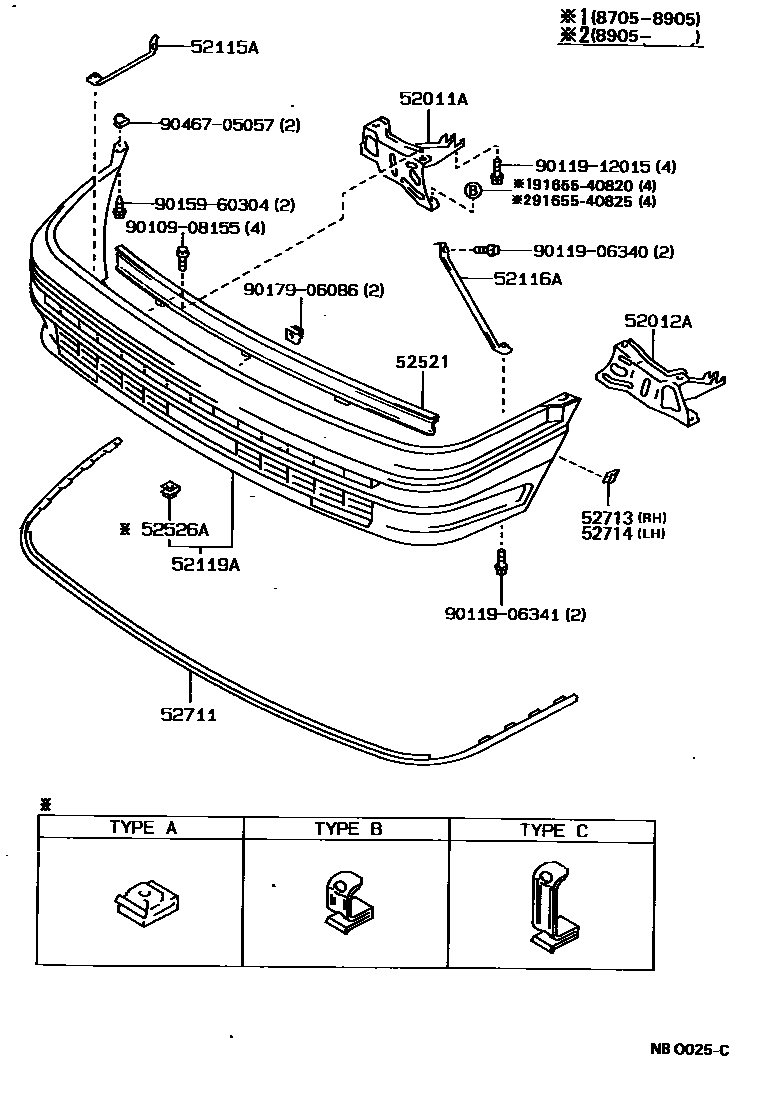

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-12360iAE91,CE96,97,EE96,97,98..CBR,DSL198905-198908

main52011-12380iAE91,92,EE90..3D,5D198705-198905

main52011-12420iCE96,97,EE96,97,98198908-199205

main52011-12440iAE91,92..3D,5D198905-199205

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-12370iAE9#,CE9#,EE9#..4D,V,WG198705-198905

main52012-12390iAE91,92,EE90..3D,5D198705-198905

main52012-12430iAE9#,CE90,EE90..4D198905-198908

main52012-12450iAE91,92..3D,5D198905-199205

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12260iAE9#,CE9#,EE9#..4D,V,WG198705-199205

main52115-12270iAE91,92,EE90..3D,5D198705-198905

main52115-12310iAE91,92..3D,5D198905-199205

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12200iAE9#,CE9#,EE9#..4D,V,WG198705-199205

main52116-12210iAE91,92,EE90..3D,5D198705-198905

main52116-12250iAE91,92..3D,5D198905-199205

52119ACOVER, FRONT BUMPER

main52119-12840iAE9#..4D,WG; AE91,CE90,96,EE90,96,98..CTD,DX,GL; CE96,EE96..STD; CE97,EE97198908-199205

main52119-13010-03iAE91..WG198908-199109

SILVER M,23E ,24M

main52119-13010-08iAE91..WG198908-199109

SUPER WHITE 2,040

main52119-1A190iAE9#,CE90,EE90..4D198705-198905

main52119-1A200-02iAE9#,CE90,EE90..GT,SE,XE198705-198905

SUPER RED 2,3E5

main52119-1A200-03iAE9#,CE90,EE90..GT,SE,XE198705-198905

GRAY M,168

main52119-1A200-05iAE91,95,CE90,EE90..SE,XE198705-198905

M BEIGE M,4H6

main52119-1A200-08iAE9#,CE90,EE90..GT,SE,XE198705-198905

SUPER WHITE 2,040

main52119-1A200-12iAE91,95,CE90,EE90..SE,XE198708-198905

RED MICA,3H4

main52119-1A200-15iAE91,95,CE90..SE198705-198905

BEIGE M,25E

main52119-1A270iAE91,EE90..(3D,5D)..CBR198705-198905

main52119-1A300-01iAE92..FXGT198901-198905

main52119-1A300-02iAE91,92..FXGT,FXZI; AE91..FXG198705-198905

main52119-1A300-03iAE91,92..FXGT,FXZI; AE91..FXG198705-198905

main52119-1A300-08iAE91,92..FXGT,FXZI; AE91..FXG198705-198905

main52119-1A300-15iAE91,92..(3D,5D)..(4FC,5F)198705-198905

main52119-1A310-02iAE91,EE90..FXG,FXL198705-198905

SUPER RED 2,3E5

main52119-1A310-03iAE91,EE90..FXG,FXL198705-198905

GRAY M,168

main52119-1A310-05iAE91,EE90..FXG,FXL198705-198905

M BEIGE M,4H6

main52119-1A310-08iAE91,EE90..FXG,FXL198705-198905

SUPER WHITE 2,040

main52119-1A350iAE91,CE96,97,EE96,97,98..V,WG; AE91..G198708-198908

main52119-1A360-03iAE91..G198708-198908

SILVER M,23E

main52119-1A360-08iAE91..G198708-198908

SUPER WHITE 2,040

main52119-1A620-02iAE9#,CE90,95,EE90..GT,SE,TX,XE198905-199106

RED MICA,3H4

main52119-1A620-03iAE9#,CE90,95,EE90..GT,SE,TX,XE198905-199106

GRAY M,168

main52119-1A620-04iAE9#,CE90,95,EE90..GT,SE,TX,XE198905-199106

DARK BLUE MICA M,8E9

main52119-1A620-05iAE9#,CE90,95,EE90..GT,SE,TX,XE198905-199106

LIGHT BEIGE M,4K1

main52119-1A620-07iAE9#,CE90,95,EE90..GT,SE,TX,XE198905-199106

GRAYISH GREEN M,6K6

main52119-1A620-08iAE9#,CE90,95,EE90..GT,SE,TX,XE198905-199106

SUPER WHITE 2,040

main52119-1A620-12iAE91..SE,TX,XE198905-199004

DARK ROSE M,3J1

main52119-1A650-01iAE91,92..3D,5D198905-199205

BLACK M,205

main52119-1A650-02iAE91,92..3D,5D198905-199205

SUPER RED 2,3E5

main52119-1A650-08iAE91,92..3D,5D198905-199205

SUPER WHITE 2,040

main52119-1A740-07iAE91,92..3D; AE91,92..3D,5D198905-199205

main52119-1A750-05iAE91,92..3D198905-199106

main52119-1A770-08iAE91..SE..EFI198909-199106

main52119-1A800-08iAE91,95,CE90..SE198901-198905

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-12100iAE9#,CE90,EE90..4D198905-198908

main52521-12140iAE91,92..3D,5D198905-199205

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52565-12040×4iAE9#,CE9#,EE9#198705-198905

main52565-12090×4iAE9#,CE9#,EE9#..4D,V,WG; AE91,92,EE90..3D,5D198708-198805

main52565-12110iAE9#,CE9#,EE9#..4D,V,WG198705-198805

main52565-16020×4iEE90;AE9#,CE90,95..DSL,EFI,EFIS198905-199205

52711MOULDING, FRONT BUMPER

main52701-13010iAE91..WG198908-199109

W/O(PAINTED BUMPER)

main52701-13020iAE91..WG198908-199205

W(PAINTED BUMPER)

main52711-12120iAE9#,CE90,EE90..4D198705-198905

main52711-12180iAE91,CE90,EE90..DX,TX198910-199106

W/O(PAINTED BUMPER)

main52711-12220iAE9#,CE90,95,EE90..GT,SE,TX,XE198905-199106

W(PAINTED BUMPER)

52713PLUG, FRONT BUMPER MOULDING

main52713-12020iCE96,97,EE96,97,98198908-199205

52714PLUG, FRONT BUMPER MOULDING, LH

main52714-12010iCE96,97,EE96,97,98198908-199205

9010908155

main90109-08155

9011906340

main90119-06340

9011906341

main90119-06341

9011912015

main90119-12015

9015960304

main90159-60304

9017906086

main90179-06086

9046705057

main90467-05057

9165540820

main91655-40820

9165540825

main91655-40825

19 parts on this diagram · 2 diagrams in section
