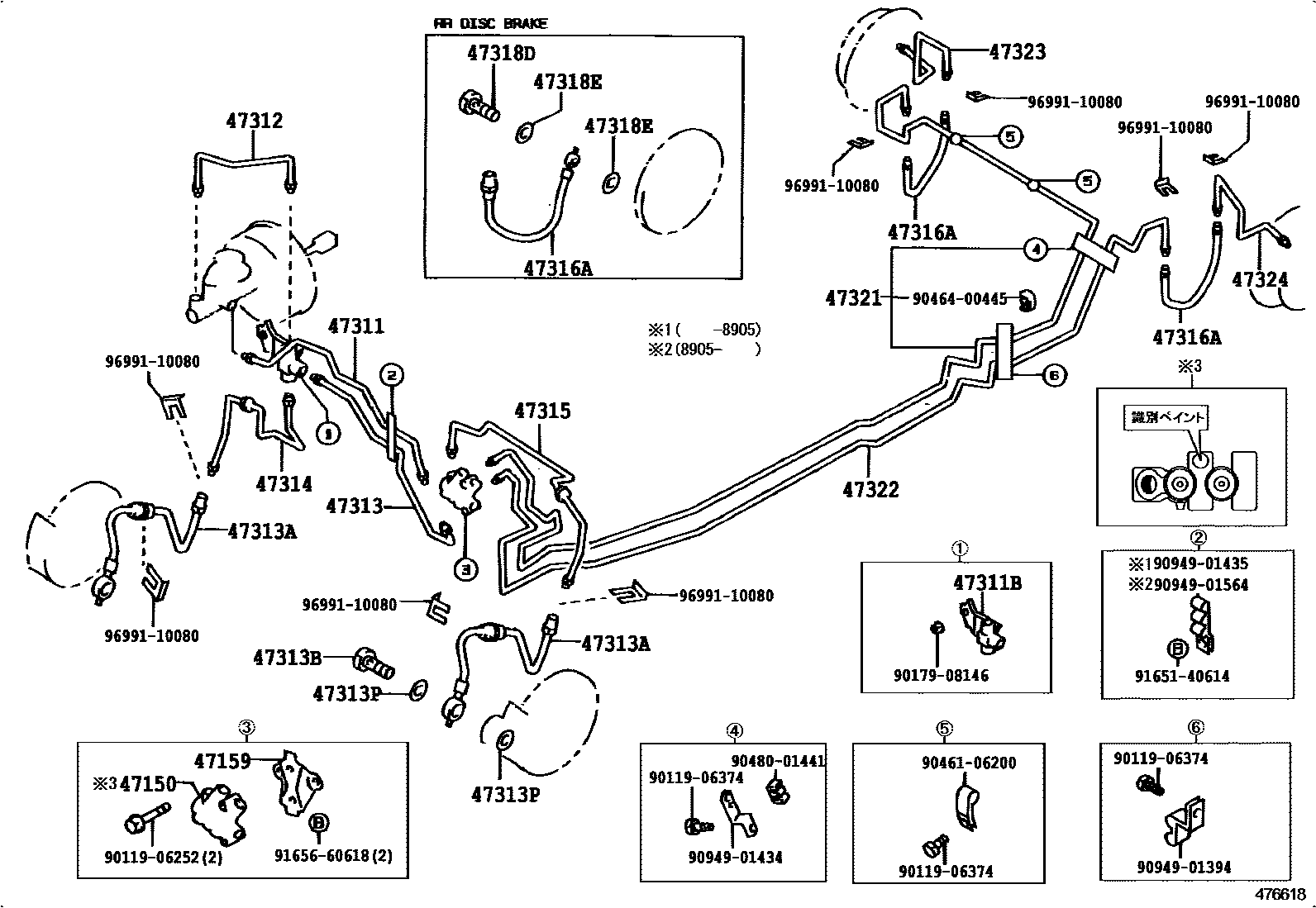

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1��(ESC) OR ��(������ ���-� ��0005 1��(ESC) OR ��(������ ���-� ��0006 1��(ESC) OR ��(������ ���-� ��

47150VALVE ASSY, PROPORTIONING

main47150-12060iAE91,CE96,97,EE9#..CBR,DSL198705-199205

sub47150-12270

main47150-12070iAE92198705-199205

main47150-12091iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

main47150-13010iAE95199008-199106

main47150-16040iAE95198710-198906

sub47150-12260

main47150-16050iCE96,EE96,98198908-199109

main47150-16070iCE97..L;AE91,CE90..DSL,EFI,EFIS198906-199205

sub47150-10090

main47150-20140iAE95,CE95198906-199106

47159BRACKET, PROPORTIONING VALVE

main47159-12050iAE9#,CE9#,EE9#198705-199205

47311TUBE, FRONT BRAKE, NO.1

main47311-12380iAE9#,CE9#,EE9#198705-198908

main47311-12410iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

main47311-12430iAE9#,CE90,EE90..3D,4D,5D198905-199205

main47311-13030iAE95199008-199106

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10116iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

main90413-10164iEE97;AE91,CE96,97,EE90,96,98..(CTD,DX,G,GL,STD,TX,XE)..(CBR,DSL)198705-199205

main90413-10221iCE97..L;AE9#,CE90,95..DSL,EFI,EFIS198705-199205

47312TUBE, FRONT BRAKE, NO.2

main47312-12270iAE9#,CE9#,EE9#198705-199205

main47312-12280iAE91..3FC..XE198911-199106

47313TUBE, FRONT BRAKE, NO.3

main47313-12180iAE9#,CE9#,EE9#198705-198908

main47313-12220iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

main47313-12240iAE9#,CE90,EE90..3D,4D,5D198905-199205

main47313-13010iAE95199008-199106

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02532iAE9#,CE9#,EE9#198705-199205

main90947-02587iAE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE)198905-199205

sub90947-02532

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iAE9#,CE9#,EE9#198705-199205

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iAE9#,CE9#,EE9#198705-199205

47314TUBE, FRONT BRAKE, NO.4

main47314-12260iAE9#,CE9#,EE9#198705-199205

main47314-12300iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

main47314-13030iAE95199008-199106

47315TUBE, FRONT BRAKE, NO.5

main47315-12400iAE9#,CE9#,EE9#198705-199205

main47315-12430iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

47316TUBE, FRONT BRAKE, NO.6

main47316-12170iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

main47316-13160iAE95199008-199106

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02533iAE91,CE90,EE90198705-199205

main90947-02539iCE96,97,EE96,97,98198708-199109

main90947-02541iAE92198705-199205

main90947-02541iAE91..FXVS,FXZS,SE198905-199205

main90947-02558iAE95,CE95198710-199106

47318TUBE, FRONT BRAKE, NO.8

main47318-12160iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

main47318-13050iAE95199008-199106

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

47321TUBE, REAR BRAKE, NO.1

main47321-12030iAE92;AE91,CE90,EE90..CBR,DSL198705-199205

main47321-12060iAE95,CE95198710-199106

main47321-12080iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

main47321-13010iCE96,97,EE96,97,98198708-199109

main47321-13050iAE95199008-199106

47322TUBE, REAR BRAKE, NO.2

main47322-12180iAE91..EFI198705-199205

main47322-12210iAE95,CE95198710-199106

main47322-12230iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

main47322-13050iCE96,97,EE96,97,98198708-199109

main47322-13090iAE95199008-199106

47323TUBE, REAR BRAKE, NO.3

main47323-12210iAE91..EFI198705-199205

main47323-12220iAE95,CE95198710-199106

main47323-13020iCE96,97,EE96,97,98198708-199109

main47323-13070iAE95199008-199106

47324TUBE, REAR BRAKE, NO.4

main47324-12170iAE91,CE90,EE90198705-199205

main47324-12180iAE95,CE95198710-199106

main47324-13060iCE96,97,EE96,97,98198708-199109

main47324-13070iAE95199008-199106

9011906252

main90119-06252

9011906374

main90119-06374

9017908146

main90179-08146

9046106200

main90461-06200

9046400445

main90464-00445

9048001441

main90480-01441

9094901394

main90949-01394

9094901434

main90949-01434

9094901435

main90949-01435

9094901564

main90949-01564

9165140614

main91651-40614

9165660618

main91656-60618

9699110080

main96991-10080
