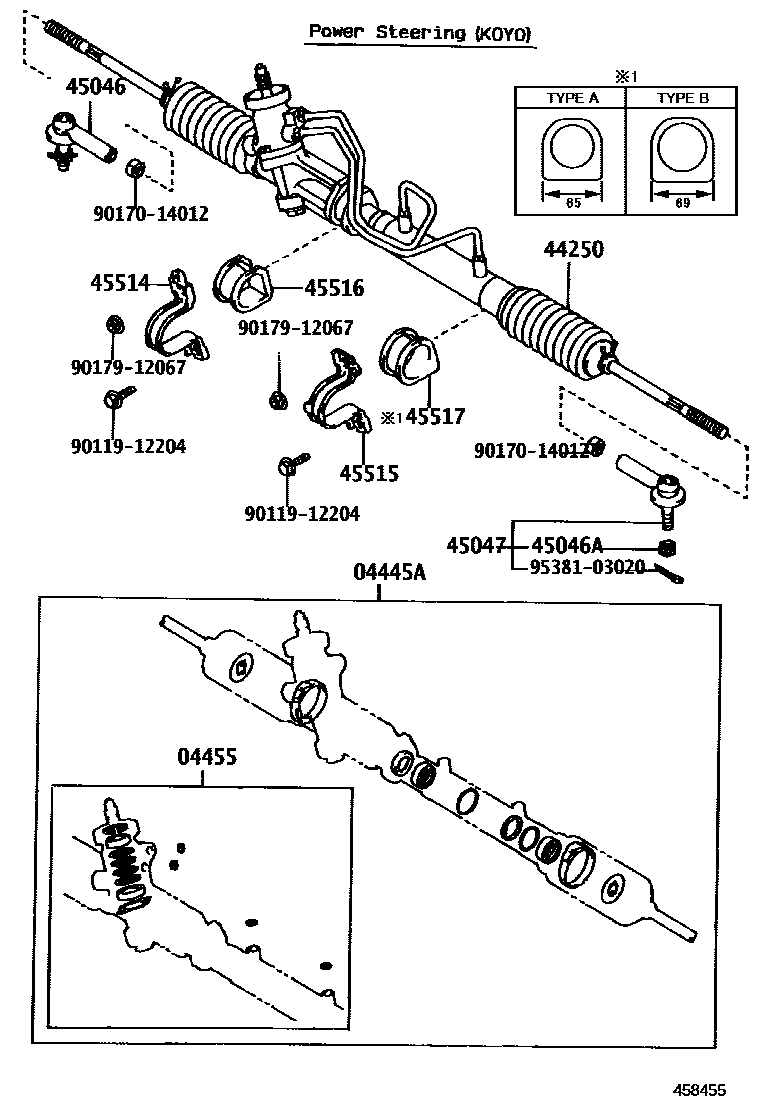

FRONT STEERING GEAR & LINK

0001 1���� ������� 0002 1���� ������� 0003 1����� �������

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12050iAE91,EE90..(5D,WG)..CBR198705-199006

sub04445-12051

main04445-12051iAE9#,CE9#,EE9#199006-199205

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12030iAE91,95,CE90,EE90..SE,TX,XE198705-199006

sub04455-12031

main04455-12031iCE96,EE96,98;AE9#,CE90,95,97,EE90,97..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,L,LT,SE,TX,XE199006-199205

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12180iAE95,EE98198705-199103

sub44250-12181

sub45517-12111

main44250-12181iCE96,EE96,98;AE91,95,CE90,95,97..FXG,FXL,FXV,FXVS,FXZS,G,L,LT,SE,TX,XE199103-199205

sub44250-12480

main44250-12200iAE92,EE90,97..FXGT,FXGTV,GT,L,TX,XE198705-199103

sub44250-12201

sub45517-12111

main44250-12201iAE92,EE90,97..FXGT,FXGTV,GT,L,TX,XE199103-199205

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAE9#,CE9#,EE9#198705-199205

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAE9#,CE9#,EE9#198705-199205

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAE9#,CE9#,EE9#198705-199205

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12070iAE95,CE90..TX;EE90..FXD,FXL,XE;AE91,CE96,97,EE97,98..(3D,5D,V,WG)..(DX,FXG,FXL,G,GL)198705-199205

main45514-12080iEE90;AE91,95,CE9#,EE96,97,98..DX,FXG,FXL,G,GL,STD,TX198705-198905

main45514-12081iAE91,EE90..CBR;AE9#,CE90,96,97,EE96,97,98..CTD,DX,FXG,FXGTV,FXL,FXV,GL,L,LT,STD,TX198905-199205

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12140iAE91,EE90..TX198705-199205

main45515-12160iEE90;AE91,95,CE9#,EE96,97,98..DX,FXG,FXL,G,GL,STD,TX198705-198905

sub45515-12161

main45515-12161iAE91,EE90..CBR;AE9#,CE90,96,97,EE96,97,98..CTD,DX,FXG,FXGTV,FXL,FXV,GL,L,LT,STD,TX198905-199205

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12050iAE91,EE90..CBR;AE9#,CE90,96,97,EE96,97,98..CTD,DX,FXG,FXGTV,FXL,FXV,GL,L,LT,STD,TX198905-199205

main45516-20010iEE90..TX,XE;CE96,EE96,98;AE9#,CE90,97,EE97..FXG,FXGTV,FXL,FXV,L,LT,TX198905-199205

main45516-20010iAE9#,CE9#,EE9#198705-199108

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12110iEE90..FXD,FXL,TX,XE;CE96,97,EE97,98..DX,GL;AE91,95,CE90..FXG,FXL,G,TX198705-199103

main45517-12110iCE95;AE9#,CE90..(FXGT,FXVS,FXZS,G,GT,SE,XE)..(DSL,EFI,EFIS)198905-199103

main45517-12110iAE91..FXZI;AE91..(SE,XE)..CBR;AE92,95,CE90..FXGT,GT,SE,XE198705-198905

main45517-12111iCE95;AE9#,CE90..FXGT,FXVS,FXZS,G,GT,SE,XE199103-199205

main45517-12120iAE9#,CE9#,EE9#..CTD,DX,FXG,FXGTV,FXL,FXV,GL,L,LT,STD199108-199205

main45517-12120iEE90;AE91,95,CE9#,EE96,97,98..DX,FXG,FXL,G,GL,STD,TX198705-198805

main45517-12120iAE91..(DX,FXG,FXL,FXV,LT,TX)..EFI;AE91,EE90..(DX,FXD,FXG,FXL,G,TX,XE)..CBR;AE92,95,CE90,96,97,EE96,97,98..CTD,DX,FXGTV,GL,L,STD,TX198805-199108

9011912204

main90119-12204

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

14 parts on this diagram · 3 diagrams in section
